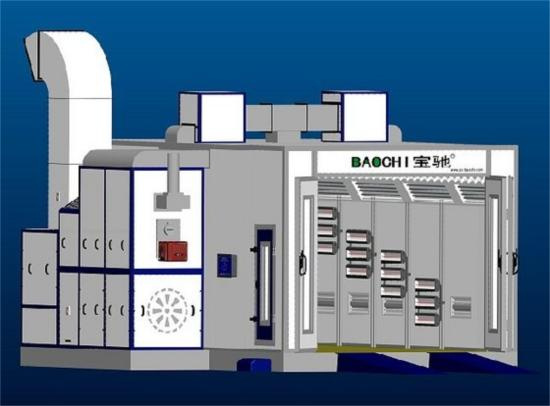

Description
Outsidesize(L*W*H): 7000*5350*4150mm
Inside size(L*W*H): 6880*3880*2650mm
Main door size(W*H): 3000*2700mm
Personal door size(W*H): 600*1750mm
Total power: 48.9 KW
Room system:
1) Wall panel 60mm, imported CSR rock wool insulated material with rebar inside, solid structure, good insulated and not easy to deform during handling or assembling;
2) Basement: Environmental galvanized steel, assembled by anti-rust pipes(40mm*80mm square pipe), high strength, beautiful, durable, equiped with 5 rows of galvanized floor grids;
3) Ramp: Anti-skid board
Air circulation system
1) 1 set of 7.5kw turbo fan for air-intake, capacity: 25000m3/h; 1 set of 7.5kw turbo fan for air-exhaust, capacity: 25000m3/h, low noise, big air capacity, power-saving.
2) 2pcs of 20N automatic damper actuators to ensure the room circulation.
3) Full air speed more than 0.35m/s; Air exchange rate 350time/h; Noise less than 80dB(a).
Lighting system
BCS15LED lighting system, integrated in safety, anti-explosion, anti-dazzling & energy-saving design, use-life more than 30, 000 hours, illumination more than1, 200Lux.
Air purification system
Two filter layer structures: Crude and refined filter. Crude filter: Domestic high quality nonwoven cotton, can catch the dust larger than 10 um, fixed on the vent door of work area; Refined filter: BAOCHI600G high quality filter cotton made by customization, multi-layers, dust holding capacity reaches to 420g/m2, fixed on the bottom of plenum, supported by coated top net, beautiful and easy to replace. The whole filter system has a big dust holding capacity, low windage, long working life. The filter rate is more than 98%, TSP value less than1.4mg/m3.
Heating system
1) With the hybrid energy design concept, Baochi achieves in developing an integrated heating mode of oil, electric and gas.
2) For your option, BCSR7 self-transmitted short-wave infrared heating lamp can be used, which is self-research, produced in Japan. BCSR7 lamp can be used for more than 7, 000 hours, higher efficiency in drying paint. With swing lifting design, you can use it more conveniently.
Control system
Designed by Baochi R&D team, the aHa3 touch screen controller has stable & reliable performance. Each operation can be set in accurate way, especially in time setting, temperature setting, over-temperature control, heating energy switching and failure indicator; Meanwhile, each operation can be monitored in real time.
Environmental cabinet
Use 7.5KW turbo fan, multi-layers paint filter device and active carbon filter device, reach the national standard(Integrated emission standard for air pollutants).
Water-soluble paint precessing system
1) A set of main hot air generator, 2 rows of hot air accelerator. When solidifying water-soluble paint, the main hot air generator and accelator will be woking at the same time. When solidifying general paint, only the hot air generator is working;
2) The nozzles for acceletator are fixed in the upper side at 45 degree angle to make the hot air even and constant.
Product Feature
Three kinds of heating modes integrated in one booth, oil burner, gas, and electric heated.
Zhongshan Baochi Automobile Maintenance and Testing Co. Ltd, established in 2001, is professional manufacturer and provider of Auto Spray Booth, Prep-Station and Industrial use Painting Equitpment. By adopting the latest technology from Europe, as the pioneer of the Auto-Painting field, has gone through the CCS products quality test and got the certificate.
Integrated with the technology, industry and trading, Baochi always devoting herself to researching and developing high-safety, high-efficiency, good energy saving and environmental protection painting and baking equipment. Stick to create top quality products with leading technology, with efforts from Baochi company and supports from customers, now the products are used throughout China and all over the world.
It is Baochi company's pursue to create value to customer, provide opportunity to our employees, making development of enterprise and dedicate profit to the society. With the belief of standing on local Chinese Market, expanding to International market, constantly making innovation and development, we are always doing efforts to provide high quality products and a full set of after-sale service to all the new and regular customers from the painting industrial field. No matter yesterday, today or tomorrow, Baochi is here on the way to going better, you are welcomed to be together with us!
