Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
IP Rating Water Test Chamber |
| Application: |
IP Rating Water Test Chamber |
| Test Platform Rotary: |
1 Rpm |
| Water Temp: |
Normal |
| Material Interior Body: |
SUS#304 |
| Material Of Exterior Cover: |
SUS#304 Stainlees Steel |
| Power Supply: |
AC 1 Phase 230V 60/50Hz |
Product Description

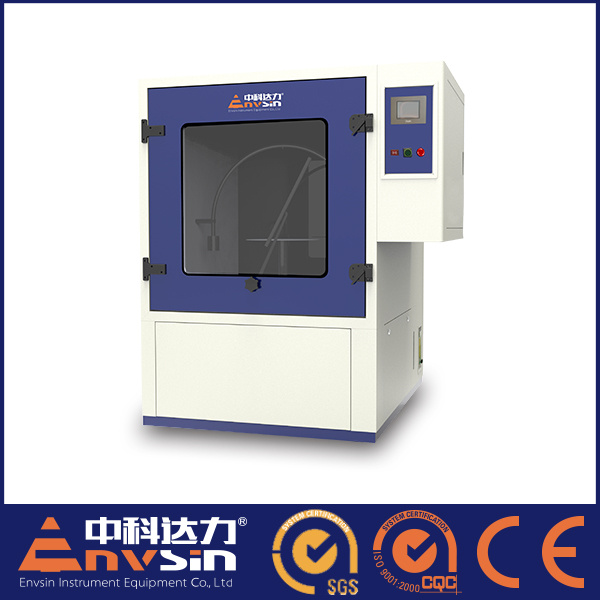

Water-Proof System Rain Tester for Auto Parts Testing
Product description:
Water-Proof System Rain Tester for Auto Parts Testing , ISO9001 water-proof tester for testing auto parts and sensors is used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion. It provide an important testing data for scientific research, product development and quality control
Specifications
IPX1 to IPX8
1. Digital electronic controller
2. With viewing glass
3. Manufacturer,chamber size can be customized
4. Power leakage protection
5. Glass door with wiper
6. Standards: GJB-150.8-2009
echnical Specifications :
Model No | EFS-LX | EFS-LC |
| Internal Dim.W×H×D(mm) | 900×900×900 | 1300×1300×1300 |
| External Dim.W×H×D(mm) | 1750×1850×1300 | 1750×1850×1300 |
| Water Temp. | Normal | Normal |
| Spray Type | Total Water Flow(L/min) | R1 | 1.8 | IP×1 | With in 1~1.5mm/min(In drip box) |
| R2 | 3.2 | IP×2 | With in 3~3.5mm/min(In drip box) |
| S1 | 24.5 | IP×3 | angle±600,R:400mm,1.1L/min |
| S2 | 39.2 | IP×4 | angle±1800,R:400mm,1.8L/min |
| Pressure of spray nozzle(kgf/cm*2) | R1 | 0.1 | 1.Flow rate of the water=0.07L/min
2.1P×3,Radius:400mm,16 pcs number or open
holes=16,total water flow:1:1L/min.
3.1P×4,Radius:400mm,25 pcs number or open
holes=25,total water flow:1:8L/min.
*Radius:200mm,R400mm.
(For 1P×3,1P×4 only) |
| R2 | 0.3 |
| S1 | 1 |
| S2 | 3 |
|
| (RPM)Test Specimen Frame | 17RMP | 1RPM |
| Spray Nozzle Rotation Speed | 23RPM | Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote
Swing 60 ° from vertical for 4 seconds at one time
Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round
Swing 180 ° from vertical for 12 seconds at one time |
|
|
|
|
|
| Material | Interior | SUS#304 |
| Exterior |
| Other Components | Chamber lamp.Wiper
casters with Adjusters | Chamber lamp.Wiper,casters with Adjusters |
|
| Power Source(K.W.) | AC 230V , 50Hz, 1/ N/ PE |
