Product Specifications
| Prod Model: |
lt-5280 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
136-174MHz/400-470MHz |
| Channel No: |
16 |
| Output Power: |
5W |
| IP Rating: |
IP66 |
| Style: |
Handheld |
| Talk Range: |
8km Max |
| Type: |
Handheld |
| Display: |
Without Display |
| Usage: |
Home, Commercial, Marine |
| Battery Type: |
Li-ion Battery |
Product Description

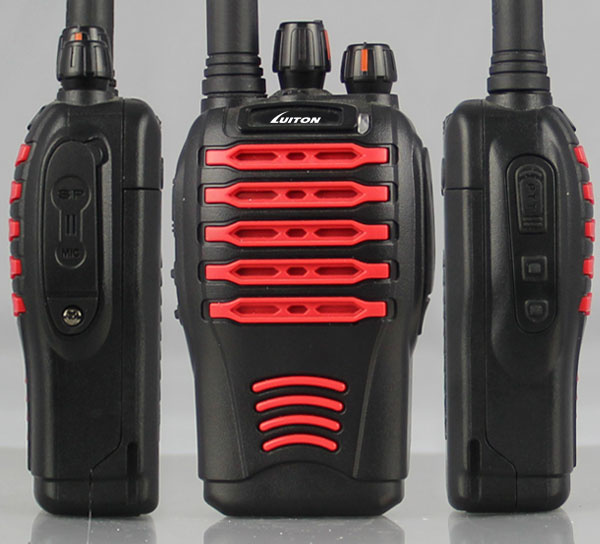

Waterproof Amateur Radio Lt-5280 Walkie Talkie with IP-66 Approval:
Main functions:
Waterproof IP66 (with certificate) & dustproof
Reduce Noise
Small size, easy operation
Voice prompt (Chinese/English)
Emergency alarm function
Call Function
CTCSS/CDCSS
Wide/narrow bandwidth (12.5/25KHz)
Wide range frequency design
Low battery alarm function
Power protection
PC programmable
TOT
Data copied by program cable
Packaging & Shipping
· 1x walkie talkie
· 1x Li-Ion battery
· 1x Antenna
· 1x Belt Clip
· 1x User's Manual
· 1X Power adapter
Our Services
Condition, Payment and Shipping:
1 We glad to ship to WorldWide.
2 Please make payment by Paypal, Western union, bank wire transfer (T/T) after confirm the order.
3 Transportation: DHL, FedEX, UPS, TNT or EMS, HongKong post airmail. By air & by sea.
4 Item will be shipped out within 3-7 working days upon receipt of the payment. (Excluding Saturday, Sundays & China Holidays)
5 Shipment may arrive within 3-16 days. Actual delivery days would be different for varies countries.
6 We do single and combine shipment.
Payment Policy:
We could only accept payment by Western Union/TT/PayPal in this stage.
Warranty Service:
We 100% Guarantee your Satisfaction
1 Please report us if there are any problem, we will solve it ASAP.
2 This items comes with 1 YEAR
Equivalent replacements can be provided with shipment of your next order if the products are broken for inartificial factors within 1 YEAR; However photos are needed for us to find the factors of damaging them.
3 Shipping and handling fees are not refundable for return or exchange items.
Company Information
Bond Telecom Co., Ltd. Specializes in producing and marketing professional FM radios, with marine radio, CB radio, mobile radio, transciever, interphone, walkie talkie, 2 way radio, two way radio, portable radio etc. We have been in this field more than 9 years. Our main markets are South America, Asia and the Middle East. Our products have won a good reputation in those markets. We can supply OEM and ODM services. Please feel free to contact us for further information.
|
Frequency Range |
VHF:136-174MHz UHF:400-470MHz |
|
Rated Voltage |
7.2V DC |
|
Memory Channel |
16(15+S) |
|
Frequency Sensitivity |
±2.5PPM |
|
Antenna Impedance |
50Ω |
|
Dimension |
116*61*35mm(Except Antenna) |
|
Transmitter |
|
Output power |
5W |
|
Current |
≤1.5A |
|
Current |
< 5%(300-3000Hz) |
|
Maximum Frequency Deviation |
≤5kHz / ≤2.5kHz |
|
CTCSS Frequency Deviation |
≤ 7uw |
|
Modulation Mode |
16KΦF3E/11KΦF3E |
|
Remanent Modulation |
< -35dB |
|
Receiver |
|
RF Sensitivity |
≤ 0.25uV / ≤ 0.3uV |
|
Silent Sensitivity |
≤ 0.2uV / ≤ 0.25uV |
|
Audio Frequency Power |
≥500mw |
|
Audio Distortion |
<5% |
|
Modulation Receiver Bandwidth |
±7KHz |
|
Spurious Rejection |
≥55dB |
|
Selectivity |
≥65dB |
|
Intermodulation |
≥60dB |
