Product Specifications
| Prod Model: |
EL-350W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
227.6lx52.6wx28.5h(mm) |
| Armature Plate: |
190lx45wx11h(mm) |
| Holding Force: |
350kg(800lbs) |
| Input Voltage: |
12 or 24VDC |
| Current: |
12V/500mA or 24V/250mA |
| Suitable: |
Wooden Door, Glass Door, Metal Door, Fireproof D |
| Surface Temp: |
≤+20°c |
| Operating Temp: |
-10~+55°c(14-131f) |
| Humidity: |
0~90%(Non-Condensing) |
| Finishes For Shell: |
Anodized Aluminum |
| Usage: |
Industrial |

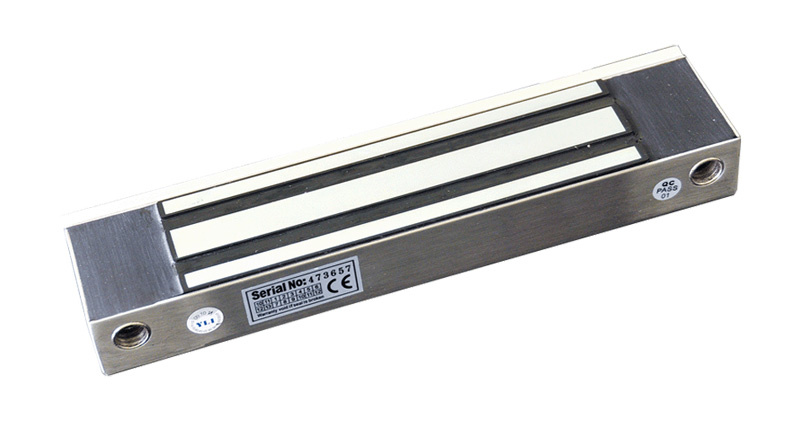

Product Description
Specifications:
Lock Size: 227.6Lx52.6Wx28.3H(mm)
Armature plate: 190Lx45Wx11H(mm)
Holding Force: 350kg(800Lbs)
Voltage: 12/24VDC+10%
Current Draw: 12V/480mA 24V/240mA
Optional Bracket: EL-350UL, EL-350L, EL-350ZL
Signal Output: Dry Contact, Max Rating of Contact Current 3A
LED red indicates the door is unlock, Green indicates the door is lock
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: ≤ +20° C
Operating Temp: -10~+55° C(14-131F)
Suitable Humidity: 0~90%(non-condensing).
Finishes for Shell: Anodized aluminum.
Finishes for Magnetic: Zinc.
Finishes for Armature: Zinc
Weight: 2.5kg
Features:
Collinear Load Test 350kg, 800pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
LED Indicates the Door Status
Lock Status sensor(NO/NC/COM).
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
