Product Specifications
| Prod Model: |
CN5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| RFID Frequency: |
13.56MHz in Read/Write Mode, ISO 18092 Nfc |
| Support: |
Mifare, Mifare Plus, Desfire EV1 |
| Interface: |
TCP/IP, RS232, RS485, Wiegand, C&D, ABA1/2 |
| Power: |
9V DC (9-24V), <150mA |
| Indication: |
2 LED and 1 Buzzer (Fully Control) |
| Housing: |
IP65 Outdoor Use |
| Type: |
Access Door Reader |
| Usage: |
Access Controller |
Product Description

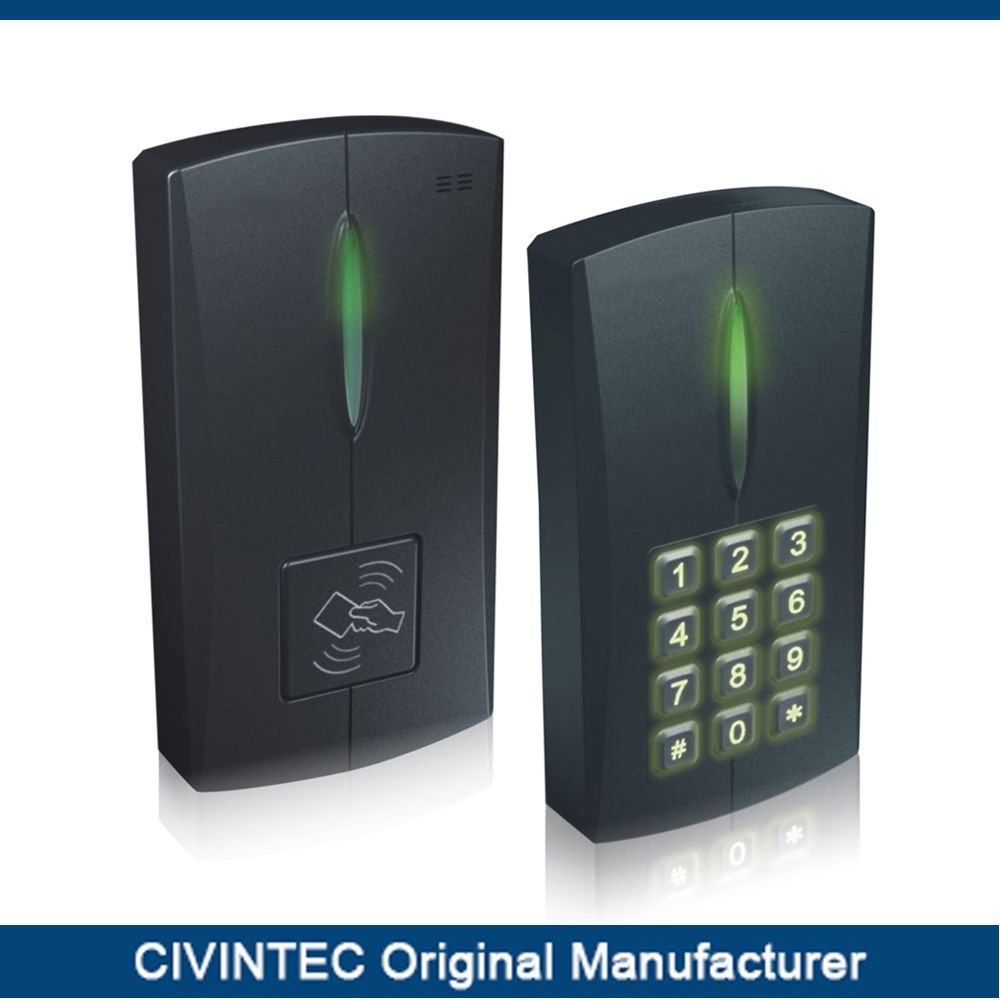

Optimized to make physical access more secure and smart, CN5 access readers introduce multi-technique to read & write Mifare, DESFire EV1, Mifare Plus and Sony Felica, and ISO18092 NFC for smart phone access solution. Adopt advanced high performance CPU, CN5 achieve fast running speed and lower consumption to ensure system more stable and affordable. Wide operating voltage and unique multi-interface RS232/485, TCP/IP, Wiegand, C&D & ABA with various output formats to meet high compatibility for most controllers on the market.
Highlight Feature:
- High Secure for Expansion-Supports Multi-RFID smart card options: Mifare Ultralight, Mifare Plus, DESFire EV1, Felica, with Embedded SAM (Secure Access Module) on request
- Smart Access with NFC solution-Supports ISO/IEC18092 NFC (Peer-to-Peer) for smartphone application
- Flexible System Integration-With 9-24V wide operating voltage and multi-interface TCP/IP, Wiegand, RS485, RS232, C&D and ABA.
- Easy Upgrade-Support DHCP and Static IP address assignation, and TCP/IP online upgrade via Website to greatly ease firmware upgrade and IP parameter setting
- Stable & Affordable System-Low consumption device with build-in TCP/IP with relay and tamper proof for low cost server managed system, with fast running speed and good reading distance.
APB External access door reader
CN56X0B Access Reader is designed with flexible connectors as weigand 26-58 bits, RS485, RS232 with various output formats to work with full CIVINTEC access controller series and high compatibility for the third party controllers on the market.
PC server management system
CN56X0B Access Reader is designed with built-in TCP/IP, relay and temper proof, which can be networked to PC via TCP/IP to build PC Server Management system, which is popular and economic solution specially designed for start-ups or small businesses, widely used in real-time access control, time attendance, personal Identification, club management even cashless payment applications.
| Model | CN56X0B-X-XX |
| ISO18092 | ISO18092 NFC peer to peer |
| RFID Standard | 13.56MHz ISO14443A 4(part 1-4), Mifare, Mifare Plus, DesFire EV1 in read/write mode; FeLica (read only) |
| RFID Card Supported | Ultralight, Mifare 1K/4K, Mifare Pro/Prox, Mifare Plus, DESFire EV1 and other ISO14443A compatible cards, Sony Felica |
| Power Supply | 9V DC (9-24V), <150mA |
| Interface | Interface options:
a. RS232, Wiegand 26-58 / C&D / ABA
b. RS485, Wiegand 26-58 / C&D / ABA
c. TCP/IP, Wiegand 26-58 / C&D / ABA |
| Keypad | 3*4 keypad with backlight |
| Indicators | Bio-color LED and Buzzer controlled by three-wires |
| Protection Class | IP65, electric epoxy potted for harsh environment |
CIVINTEC Global is the world leading R&D and manufacturer of reader devices, terminals and systems, specialized in NFC technology, 13.56MHz contactless smart card, biometric and embedded OS technologies. CIVINTEC Global is an innovative product supplier of smart card and security solutions for various markets which include physical access control, time attendance, club membership, personal identification, public transportation, e-payment etc.
Based on our strong and experienced R&D team which is composed of creative and motivated professionals, Civintec global is always dedicated to provide market oriented and reliable high-tech products to benefit our customers.
CIVINTEC Global is committed to enhancing customer value by running our Partner Program since 2006. Till today, we become the main supplier of OEMs, system integrators, application developers and provide products from R&D to production around the world and is proud of being the supplier of some stock listed enterprises. We are proud to be working with a worldwide network of partners from various market segments to achieve win-win business mode.
Involved technologie
ISO18092 Near Field Communication NFC
RF contactless Smart Card technology: 13.56MHz ISO14443A, ISO14443B, ISO15693, Felica
ISO7816 contact technology
Biometric
Wireless Communication – WiFi, GPRS, 3G
Embedded OS with Professional Software
Product Range
13.56MHz&NFC OEM module/readers
Access Control & T/A terminals and systems
Handheld terminals and systems
Multi-purpose Terminals and systems
Biometric terminal and systems
Embedded OS with Professional Software
CIVINTEC Global has built strong cooperation with several global market leaders, including NXP, HID Global, LEGIC, Infineon, TI, Inside, etc.
