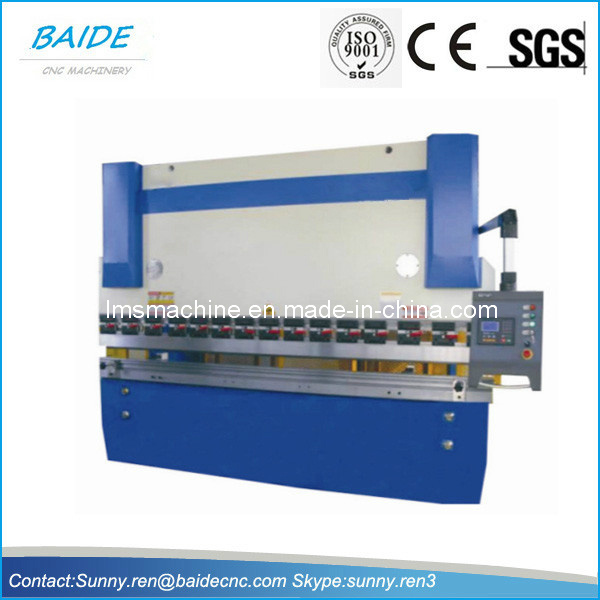

Wc67k 100t Hydraulic CNC Sheet Bending Machine
Product Specifications
| Prod Model: |
WC67K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Steel Q235. |
| Model: |
100/3200. |
| Nominal Pressure: |
1000kn. |
| Worktable: |
3200mm. |
| Pillars Distance: |
2700mm. |
| Throat Depth: |
320mm. |
| Slider Stroke: |
120mm. |
| Max Open Height Of Slider And Worktable: |
450mm. |
| Main Motor Power: |
7.5kw. |
| Dimension: |
3450*1450*2600mm. |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Press Brake |
Product Description

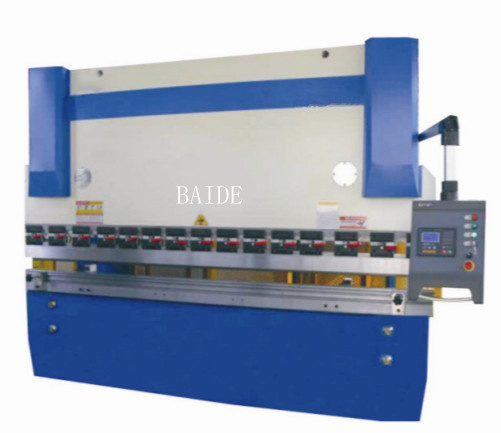

WC67K series simple CNC hydraulic plate bending machine
1. Performance and features:
a. Mechanical stopper, torsion bar synchronization, high precision.
b. Slider stroke, backgauge automatically controlled by a computer.
c. With ball screw, rolling guide, high repeat positioning accuracy.
2. Mainly imported parts:
a. Hydraulic system: Germany BOSCH(Rexroh).
b. Oil pump:Shanghai Cheng Jie Standards silence gear pump.
c. Seals: The chioce of the United States Parker.
d. Electrical components: French Snyder.
e. Motor: Twin Towers Group.
f. Ball screw: Taiwan HIWIN.
g. Linear guide, ball screw: Taiwan HIWIN Taiwan TBI.
h. CNC control systems: The choice of frequency control system Nanjing Estun E200.
3. Optional:
a. CNC system DA41 servo control system.
b. Fixture devices: Portable fast clip.
c. Support device: Removable front support device and lift model back support device.
d. Safety devices: photoelectric protection, laser protection.
e. Mechanism compensation: the lower cylider mechanism compensation.
4. Press brake parts:
5. Press brake loadingcontainer:
6. Main technical parameters:
|
Model |
Nominal pressure(KN) |
Worktable length(mm) |
Pillars distance(mm) |
Throat depth(mm) |
Slider stroke(mm) |
Max open height of slider and wortable(mm) |
Main motor power(KW) |
Dimension(L*W*H)mm |
|
63/3200 |
630 |
3200 |
2700 |
250 |
100 |
400 |
5.5 |
4340*1460*2420 |
|
100/3200 |
1000 |
3200 |
2700 |
320 |
120 |
450 |
7.5 |
3450*1450*2600 |
|
160/3200 |
1600 |
3200 |
2700 |
320 |
200 |
465 |
11 |
3250*2535*2920 |
|
250/3200 |
2500 |
3200 |
2700 |
400 |
250 |
560 |
15 |
4000*2250*4060 |
|
250/4000 |
2500 |
4000 |
3300 |
400 |
250 |
560 |
15 |
4800*2250*4060 |
|
250/5000 |
2500 |
5000 |
4100 |
400 |
250 |
560 |
15 |
5800*2250*4060 |
|
250/7000 |
2500 |
7000 |
6250 |
400 |
250 |
560 |
15 |
7800*2250*4160 |
|
320/4000 |
3200 |
4000 |
3300 |
400 |
250 |
560 |
22 |
4060*2570*4560 |
|
320/5000 |
3200 |
5000 |
4100 |
400 |
250 |
560 |
22 |
5060*2570*4560 |
|
320/6000 |
3200 |
6000 |
6250 |
400 |
250 |
560 |
22 |
6060*2570*4560 |
|
400/4000 |
4000 |
4000 |
3300 |
400 |
320 |
625 |
37 |
4050*3240*3880 |
|
400/5000 |
4000 |
5000 |
4300 |
400 |
320 |
625 |
37 |
5050*3240*3880 |
|
400/6000 |
4000 |
6000 |
5300 |
400 |
320 |
625 |
37 |
6050*3240*3880 |
|
500/4000 |
5000 |
4000 |
3100 |
400 |
320 |
630 |
37 |
4090*2965*5320 |
|
500/5000 |
5000 |
5000 |
4100 |
400 |
320 |
630 |
37 |
5090*2965*5320 |
|
500/6000 |
5000 |
6000 |
5100 |
400 |
320 |
630 |
37 |
6090*2965*5320 |
|
630/5000 |
6300 |
5000 |
4100 |
400 |
320 |
710 |
45 |
5050*4910*3200 |
|
630/6000 |
6300 |
6000 |
5100 |
400 |
320 |
710 |
45 |
6050*4910*3200 |
|
800/5000 |
800 |
8000 |
6700 |
350 |
400 |
750 |
55 |
9500*3000*6050 |
Maanshan Baide CNC Machinery Co., Ltd is a professional manufacturer of metal bending machine, metal forming machine and according machine tools. The main machines we manufacture are; 4 column hydraulic press, single column hydraulic press, pneumatic power press, mechanical power press, CNC power press, mechanical shearing machine, hydraulic swing beam shearing machine, hydraulic guillotine shearing machine, CNC shearing machine, hydraulic plate press brake, CNC press brake, 3 roll plate bending machine, 4 roll plate bending machine, combined iron worker machine, hole punching machine, plate leveling machine, profile bending machine, CNC cutting machine, cut to length line, slitting line, duct manufacture machines, etc.
Our company occupy 20000 square meters, the manufacture factory occupy 10000 square meters, annual manufacture value is above 80000000 yuan RMB, in which more than 25000000 yuan RMB are for exporting. Our company have perfect after sale service system, there are total 14 sale and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia, to enlarge our service area.
All the times we put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include; Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers"as our target, hope to create the best future with old and new customers.
