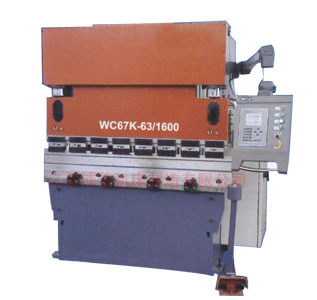

WC67K Series Automatic Hydraulic Press Brake Machine
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color And Voltage: |
According to Customer's Request |
| Machine Type: |
Hydraulic Bending Machine/CNC, Electro-Hydraulic |
| Certificate: |
ISO&CE&CQC |
| Automatic Grade: |
Automatic |
| Power: |
Electro-Hydraulic Synchronized |
| Processed Material: |
Carbon Steel, Stainless Steel, Alloy |
| Raw Material: |
Cast Iron, Steel |
| Model: |
Wc67k Series |
| Type: |
Press Brake |
| Application: |
Machinery & Hardware |
| Automation: |
Automatic |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Type For Cutting Machine: |
CNC Cutting Machine |
Product Description
1. Standard CE Electric Cabinet
2. YASKAWA Servo-system
3. High precise, high speed, precise fix position
The main machine adopts the structure of series WC67Y hydraulic press brake. Special CNC system for press brake. High precision, sophisticated ball screw. Back gauge driven by digital AC servo motor, high speed, high precise, precise fix position. Being equipped with double axles device, more axles are optional.
We'd like to supply best quality best price! Pls contact us for details!
|
MODEL |
40/2000 |
40/2500 |
63/1600 |
63/2500 |
100/3200 |
100/4000 |
125/3200 |
|
Nominal pressure of machine( KN) |
400 |
400 |
630 |
630 |
1000 |
1000 |
1250 |
|
Length of working table(mm) |
2000 |
2500 |
1600 |
2500 |
3200 |
4000 |
3200 |
|
Distance between horsing(mm) |
1640 |
2050 |
1340 |
2050 |
2600 |
3300 |
2600 |
|
Throat depth(mm) |
200 |
200 |
200 |
250 |
320 |
320 |
320 |
|
Ram stroke (mm) |
100 |
150 |
100 |
100 |
150 |
150 |
150 |
|
Max. open height between working table and ram(mm) |
360 |
360 |
360 |
360 |
410 |
415 |
415 |
|
Power of main motor(KW) |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
7.5 |
Overall dimensions |
L(mm) |
2060 |
2600 |
1700 |
2600 |
3260 |
4060 |
3280 |
|
W(mm) |
1500 |
1500 |
1500 |
1735 |
1753 |
1340 |
1300 |
|
H(mm) |
2050 |
2050 |
2010 |
2350 |
2500 |
2500 |
2600 |
|
Weight of machine(Kg) |
3300 |
3500 |
3000 |
4220 |
8000 |
10000 |
9000 |
|
MODEL |
160/3200 |
160/4000 |
200/4000 |
200/6000 |
250/4000 |
320/4000 |
- |
|
Nominal pressure of machine( KN) |
1600 |
1600 |
2000 |
2000 |
2500 |
3200 |
- |
|
Length of working table(mm) |
3200 |
4000 |
4000 |
6000 |
4000 |
4000 |
- |
|
Distance between horsing(mm) |
2600 |
3300 |
3300 |
5100 |
3300 |
3300 |
- |
|
Throat depth(mm) |
320 |
320 |
320 |
400 |
320 |
400 |
- |
|
Ram stroke (mm) |
200 |
200 |
200 |
200 |
200 |
250 |
- |
|
Max. open height between working table and ram(mm) |
465 |
465 |
465 |
465 |
465 |
560 |
- |
|
Power of main motor(KW) |
11 |
11 |
15 |
15 |
15 |
22 |
- |
|
Overall dimensions |
L(mm) |
3260 |
4060 |
4060 |
6100 |
4060 |
4060 |
- |
|
W(mm) |
1930 |
1930 |
1930 |
1950 |
2340 |
2570 |
- |
|
H(mm) |
2800 |
2800 |
2800 |
2900 |
3200 |
3560 |
- |
|
Weight of machine(Kg) |
10500 |
14000 |
15000 |
25000 |
21000 |
24500 |
- |
We are a hi-tech enterprise in Jingjiang. We are mainly specialized in the research and development of kinds of metal workers.
Products Include: Iron worker, hydraulic iron worker, electro-hydraulic synchronized CNC press brake, hydraulic punching, hydraulic press brake, bending machine, hydraulic shear, hydraulic shearing machine, hydraulic cutting machine, hydraulic swing beam shear, hydraulic guillotine shearing machine, autofeed hydraulic shear, hydraulic shear with pneumatic support device
Our ironworers, which have been sent to Australia, are all equipped with ATOS pump valve of Italy, and Electric's appliances. Before the installation, we will provide two solutions for customers' choices, respectively adopted different configurations of world brand products and Chinese famous brand products. We make sure the quality, and satisfy the clients with comprehensive after-sales service.
Jiangsu Puxin Machinery Manufacturing Co. Ltd is the production of various types of forging press machines and equipment professional firm, the company passed the ISO9001: 2000 quality system certificatian and export of electromechanical products through a national license certification and CE certification.
Company has first-class professional and technical personnel, strong technical skills, complete testing means. Our long-term accumulated experience and lessons to broad areas of advanced technology to constantly adjust product structure, to market the most sophisticated forging machinery. Selling products, a large number of exported to Europe, the Middle East and Southeast Asia, has long been Chinese and foreign custmers alike.
Each of the company manufacturing parts for each machine in a safe, functional, maintenance, and performance in line with the highest quality requirements, its design based on use of human and machine control based on the quality and reliability is our top priority. The company will adhere to the people-oriented, science as a precursor to new business ideas, science service, customers return to the company, and our aim is to"honesty, quality first. "with yhe company's products, you will have the strength and the future!
