Shaanxi HAVEN Equipment Co., Ltd. >> Wc67y-125X2500 Hydrualic Press Brake, Stainless Steel Bendig Machine, CNC Folding and Bending Machine

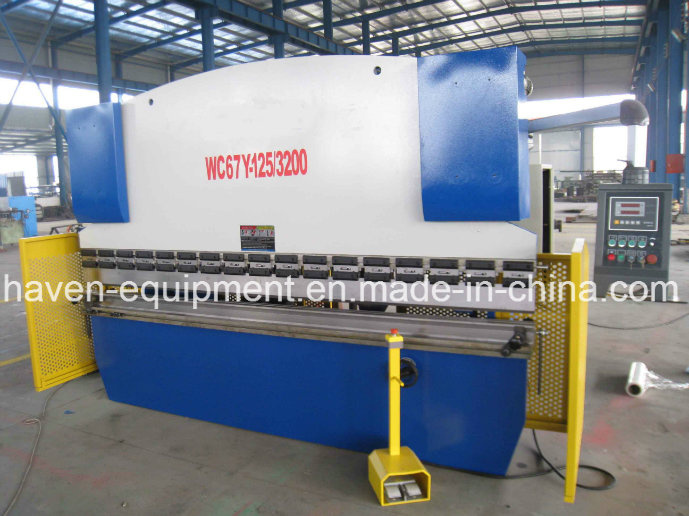

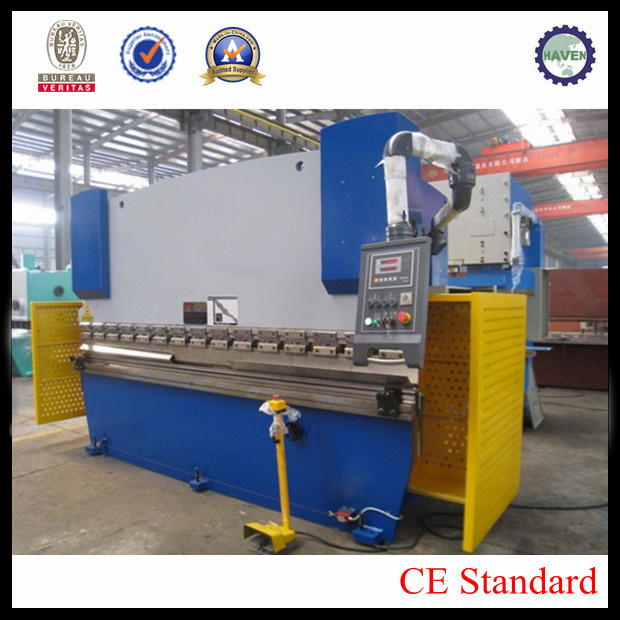

Wc67y-125X2500 Hydrualic Press Brake, Stainless Steel Bendig Machine, CNC Folding and Bending Machine

Name: Wc67y-125X2500 Hydrualic Press Brake, Stainless Steel Bendig Machine, CNC Folding and Bending Machine
Brand: china-manufacturer-directory.com
SKU: 668233282
Availability: InStock
Rating: 4.9 (120 reviews)

Supplier:	Shaanxi HAVEN Equipment Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	WC67Y-125X2500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Steel Body:	Digital Readout
Application:	Machinery & Hardware
Type For Fold-bending Machine:	CNC Fold-bend Machine

Product Description

Hydraulic press brake:
1) Steel-welded constuction, vibration to eliminate stress, with high strength and gppd rigidity;
2) Hydraulic top drive, steadiness and reliability. Mechanical stop, steel torsion bar to maintain synchronization, high precision;

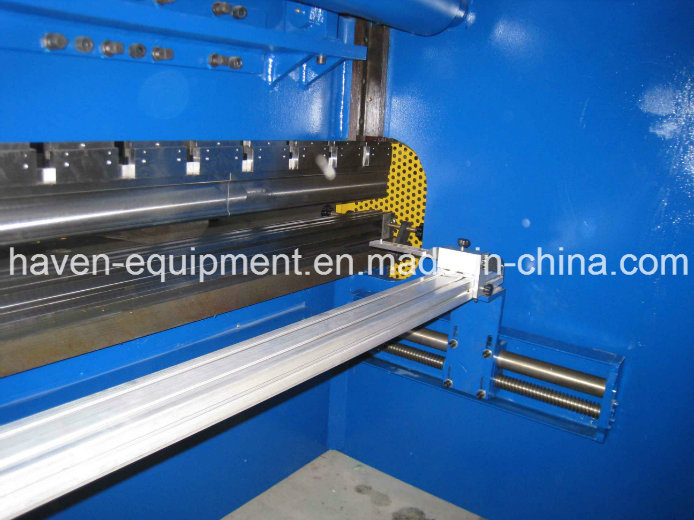

3) Motorized-adjusting device of backgauge and rams stroke, fine adjusting by handwheel, numerical display;

4) Deflection compensation unit installed on the top die. Manual crowned bottom die holder is adopted for the machine above 250T, Length 4000mm;
5) Travel limit protection. Full machine guarding with safety interlocker.

model	Normal pressure(kn)	Working table length (mm)	Distance between housing	Throat depth (mm)	Ram travel (mm)	Max. open height	Adjust- ment of ram travel (mm)	Working table Height (mm)	Main motor		speed	Oil flow rate (L/min)	Machine overall Dimension (mm) L x W x H	Machine weight(T)
model	Normal pressure(kn)	Working table length (mm)	Distance between housing	Throat depth (mm)	Ram travel (mm)	Max. open height	Adjust- ment of ram travel (mm)	Working table Height (mm)	Power (kw)	Speed (mm/s)	Approach/ Working/ return	Oil flow rate (L/min)	Machine overall Dimension (mm) L x W x H	Machine weight(T)
30x1300	300	1300	1110	200	40	275	80	710	3	1440	8 / 6 / 8	10	1800x1550x1900	1.8
30x1600	300	1600	1225	200	40	275	80	710	3	1440	8 / 6 / 8	10	1950x1550x1900	2.1
40x1300	400	1300	1080	200	100	275	80	710	4	1440	8 / 6 / 8	10	1950x1550x1990	2.1
40x1600	400	1600	1200	200	100	320	80	710	4	1440	8 / 6 / 8	10	1950x1550x1900	2.3
40x2000	400	2000	1500	220	100	320	80	730	4	1440	8 / 6 / 8	10	2150x1600x1980	2.8
40x2200	400	2200	1500	220	100	320	80	740	4	1440	8 / 6 / 8	10	2250x1700x1950	3
40x2500	400	2500	2000	220	100	320	80	730	4	1440	8 / 6 / 8	10	2505x1125x2000	3.1
50x2500	500	2500	1900	250	120	300	120	750	5.5	1440	8 / 6 / 8	10	2570x1270x1800	3.3
50x3200	500	3200	2600	250	120	300	120	750	5.5	1440	8 / 6 / 8	10	3270x1350x1960	3.2
63x2000	630	2000	1500	250	100	360	100	770	5.5	960	8 / 6 / 8	25	2060x1725x2280	3.8
63x2500	630	2500	2050	250	100	360	100	770	5.5	960	8 / 6 / 8	25	2560x1725x2280	4.2
63x3200	630	3200	2600	250	100	360	100	770	5.5	960	8 / 6 / 8	25	3260x1700x2260	5.5
80x3200	800	3200	2600	250	100	360	100	780	7.5	960	8 / 6 / 8	25	3520x1620x2230	6.6
80x4000	800	4000	3200	250	100	360	100	780	7.5	960	8 / 6 / 8	25	4050x1820x2280	7.5
100x2500	1000	2500	2050	320	130	390	100	850	7.5	960	8 / 6 / 8	25	2600x1750x2230	6.8
100x3200	1000	3200	2600	320	130	390	100	850	7.5	960	8 / 6 / 8	25	3500x1750x2230	7.2
100x4000	1000	4000	3200	320	130	390	100	850	7.5	960	8 / 6 / 8	25	4060x1800x2500	8.2
100x5000	1000	5000	4080	320	130	390	100	850	7.5	960	8 / 6 / 8	25	5100x1800x2700	9
125x2500	1250	2500	2050	320	130	390	100	850	11	960	8 / 6 / 8	25	2600x1750x2330	7.8
125x3200	1250	3200	2600	320	130	390	100	850	11	960	8 / 6 / 8	25	3500x1750x2330	7.5
125x4000	1250	4000	3200	320	130	390	100	850	11	960	8 / 6 / 8	25	4080x1750x2500	7.5
125x5000	1250	5000	4080	320	130	390	100	850	11	960	8 / 6 / 8	25	5080x1750x2600	7.5
160x3200	1600	3200	2600	320	200	470	160	840	11	960	7 / 5 / 7	25	3400x2100x2520	10.5
160x4000	1600	4000	3200	320	200	470	160	840	11	960	7 / 5 / 7	25	4060x2100x2600	11.8
160x5000	1600	5000	4080	320	200	470	160	840	11	960	7 / 5 / 7	25	5080x2100x2600	14
160x6000	1600	6000	4800	320	200	470	160	840	11	960	7 / 5 / 7	25	6100x2100x2680	15.8
200x3200	2000	3200	2600	320	200	520	180	850	15	960	7 / 5 / 7	63	3400x2200x2650	12.8
200x4000	2000	4000	3200	320	200	520	180	850	15	960	7 / 5 / 7	63	4080x2200x2650	14.5
200x5000	2000	5000	4080	320	200	520	180	850	15	960	7 / 5 / 7	63	5100x2200x2660	16
200x6000	2000	6000	4800	320	200	520	180	850	15	960	7 / 5 / 7	63	6120x2200x2660	17.5
250x3200	2500	3200	2600	400	250	560	220	865	18.5	960	7 / 5 / 7	63	3400x2300x2800	13.5
250x4000	2500	4000	3200	400	250	560	220	865	18.5	960	7 / 5 / 7	63	4120x2300x2800	15
250x5000	2500	5000	4080	400	250	560	220	865	18.5	960	7 / 5 / 7	63	5100x2300x2850	17
250x6000	2500	6000	4800	400	250	560	220	865	18.5	960	7 / 5 / 7	63	6120x2300x2900	19
