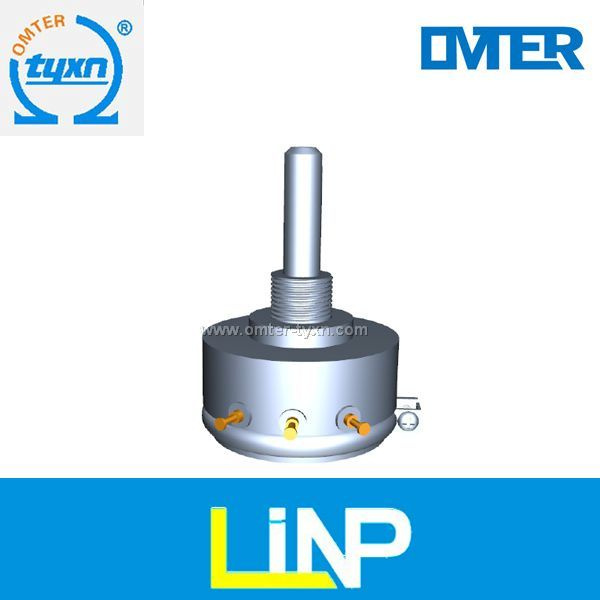

Wdd32z-3 Linear Position Transducerprecision Potentiometer

Product Specifications

Prod Model:	WDD32Z-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Omter
Rated Power:	2W
Resistance Tolerance:	+-15%
Perating Temperature:	-55 Degree to +125 Degree
Mechanical Travel:	360°
Dielectric Strength:	1 Minute at 1000V(AC.RMS)
Independent Linearity:	0.1%, 0.2%, 0.3%, 0.5%, 1.0%
Bearing:	2 Pairs Ball Bearing
Output Smoothness:	≤±0.10%
Insulation Resistance:	1000mat 500V.D.C
Resistance:	Variable Resistor
Type:	Rotary Potentiometer
Installation:	DIP Resistor
Function For Resistance:	Protective Resistor
Package Type:	Surface Mount
Material:	Stainless Steel +Aluminum Alloy

Product Description

Standard Resistance Value: 1kΩ , 2kΩ , 3kΩ , 5kΩ
Total Resistance Tolerance: ± 15
Independent Linearity Tolerance(%): 0.1, 0.2, 0.3, 0.5, 1.0
Electrical Travel: 345° ± 2°
Mechanical Travel: 360° ( endless)
Power Rating: 2W(70° C) FFOW(125° C)
Temperature coefficient of resistance: ≤ 0.04%/° C
Insulation Resistance: ≥ 1000M Ω (500VDC)
Dielectric Strength: 500V(AC. RMS)1min
Smoothing of output: ≤ 0.05
Working Temperature Range: -55° C+125° C
Stopper Strength: ≤ 1

Product detailed:









Product characteristic:

Knob it is an edge with one or a series of label of the common circular protrusion, disc or dial,

Can be rotated or push pull, to start and to manipulate or control something. (such as radio or television).

It has plastic knob, baklite knob, aluminium knob, metal knob etc.

Application scope:

This series products mainly Suit for Consumer Electronics, Medical Devices, Mechanical components, Electrical equipment and products etc.





Product packing:





More products:


Test Report:





Express delivery:





Sample:

1. Free charge sample: Could provide(less than 10 PCS), freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union



Quality Guarantee:

1. Strictly quality control before leave factory

2. Quality guarantee within one year



Advantage:

1. Low MOQ: 50~100PCS

2. New design Accepted: As your requirement

3. Good Service: Customer as God

4. Good Quality: Strict quality control and good reputation

5. Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)



Order Guide:

1. Inquiry-Professional quotation.
2. Confirm the price, lead time, packing requirement, payment term etc.
3. OMTER sales send the Proforma Invoice with OMTER seal.
4. Customer make the payment and send us Bank receipt.
5. Will inform client that we have got the payment, arrange the production & inform the estimated time.
6. After delivery will inform the tracking number and check the status for clients.
7. Feedback to TALL about Quality, Service, Market Feedback & Suggestion. And we can do better.



Company Picture:

Electrical:
Standard Resistance	1K, 2K, 3K, 5K (Ω)
Resistance Tolerance	±15%
Independent Linearity	0.1%, 0.2%, 0.3%, 0.5%, 1.0%
Electrical Travel	345°±2°
Power Rating	2W ( @70°C )
Resist. Temperature Coefficient Of Wire	≤   ±400 P.P.M/°C
Insulation Resistance	≥1000MΩat 500V.D.C
Dielectric Strength	1 minute at 1000V(AC.RMS)
Output Smoothness	≤±0.10%
Mechanical:
Mechanical Travel	360°(Endless)
Starting Torque (MAX.)	≤10x10-4N.M
Bearing	2 Pairs Ball Bearing
Shaft	Stainless Steel
Housing Case	Aluminum alloy
Environmental:
Life Expectancy	Approx. 50,000,000(Shaft Revolutions)
Operating Temperature	-55°C~ +125°C
Vibration	15G 2000Hz
Shock	50G 11ms
