Yueqing Omter Electronic & Technology Co., Ltd. >> Wdd35D-4 Rotary Precision Potentiometer

Wdd35D-4 Rotary Precision Potentiometer

Name: Wdd35D-4 Rotary Precision Potentiometer
Brand: china-manufacturer-directory.com
SKU: 689771502
Availability: InStock
Rating: 4.3 (76 reviews)

Supplier:	Yueqing Omter Electronic & Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	WDD35D-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Omter
Rated Power:	2W
Resistance Tolerance:	+-15%
Perating Temperature:	-55 Degree to +125 Degree
Mechanical Travel:	360°
Dielectric Strength:	1 Minute at 1000V(AC.RMS)
Independent Linearity:	0.1%, 0.2%, 0.3%, 0.5%, 1.0%
Bearing:	2 Pairs Ball Bearing
Output Smoothness:	≤±0.10%
Insulation Resistance:	1000mat 500V.D.C
Resistance:	Variable Resistor
Type:	Rotary Potentiometer
Installation:	DIP Resistor
Function For Resistance:	Protective Resistor
Package Type:	Surface Mount
Material:	Stainless Steel +Aluminum Alloy

Product Description

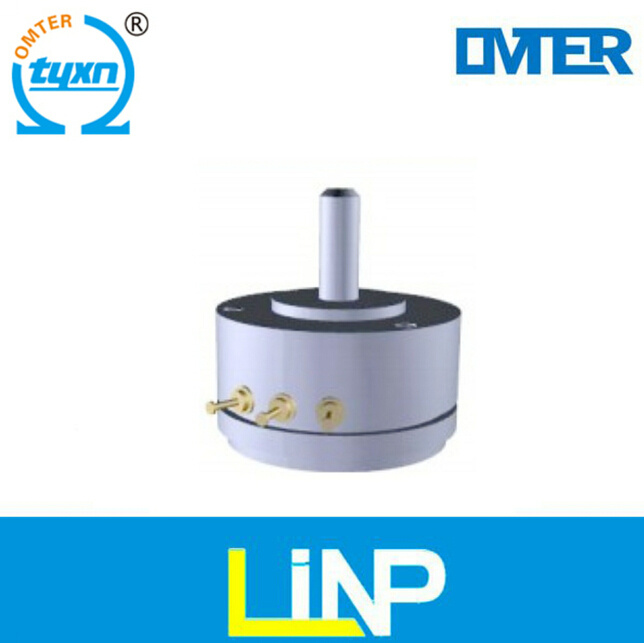

WDD35D-4 potentiometer

Model: 2WDD35D-4

Standard Resistance Value: 1kΩ,2kΩ,3kΩ,5kΩ

Total Resistance Tolerance: ±15

Independent Linearity Tolerance(%): 0.1,0.2,0.3,0.5,1.0

Electrical Travel: 345°±2°

Mechanical Travel: 360°( endless)

Power Rating: 2W(70°C) FFOW(125°C)

Temperature coefficient of resistance: ≤0.04%/°C

Insulation Resistance: ≥1000M Ω(500VDC)

Dielectric Strength: 500V(AC.RMS)1min

Smoothing of output: ≤0.05

Working Temperature Range: -55°C+125°C

Stopper Strength: ≤1

Product detailed:

Product characteristic :

Knob it is an edge with one or a series of label of the common circular protrusion, disc or dial,

can be rotated or push pull, to start and to manipulate or control something. (such as radio or television).

It has plastic knob, baklite knob, aluminium knob,metal knob etc.

Application scope:

This series products mainly Suit for Consumer Electronics,Medical Devices,Mechanical components,Electrical equipment and products etc.

Test Report:

Express delivery :

Sample:

1. Free charge sample: Could provide(less than 10 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

Company Picture:

LINP OMTER INTERNATIONAL HOLDINGS LIMITED, Including WENZHOU LINP TRADING Co., Ltd. And YUEQING OMTER ELEC&TECH COMPANY Ltd.

YUEQING OMTER ELEC&TECH COMPANY Ltd. Is a factory special in manufacturing knob, potentiometer and joystick and dealing with domestic business. WENZHOU LINP TRADING Co., Ltd. is responsible for the production of our company and various products of other companies import and export business.

Company have Strong technical force, with excellent supporting mold and injection molding equipment, professional technical personnel, with new product design, development and production capacity. Advanced production equipment, complete testing hand side, strict quality control, is a professional manufacturer of knobs.

Our TYXN knob according to the material difference. Have plastic knob, Bakelite knob, metal knob, aluminum knob and so on. According to the function difference. We have potentiometer knob. Radio push knob. Sound plastic components. Sound knob, dial knob, instrumentation knob. Electronic knob. Switch knob, welding knob and so on, Meanwhile. We also could make knob as customer need.

Our products are widely used in Security Industry of control the keyboard, move the camera and CCTV control systems, test equipment, measurement control, medical imaging control system, automatic machine control, video editing and production equipment, industrial and scientific use of instruments, wheelchair control, printing equipment, satellite, aviation, aerospace, marine, missiles, remote connector, operating robots, medical equipment, etc...

Our product are popular in America, Europe. Japan, Korea and so on. We are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more information.
