Product Description

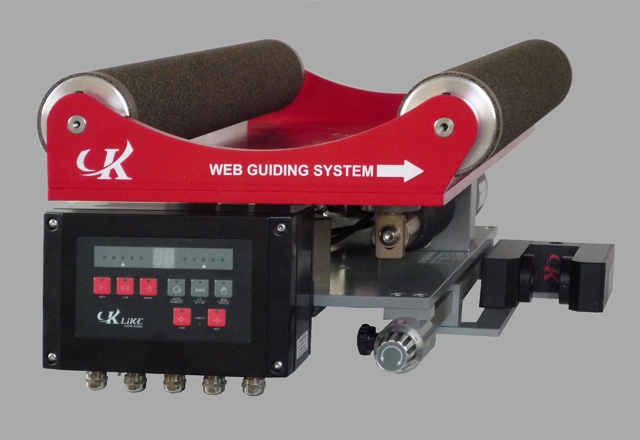

ICFL Series Web Guiding Control System
Web guiding control system mainly used for solving the problem of material in the operation of the offset problem
Model: ICFL160-1000
Main Parts: Controller\performing mechanism and sensor
Main advantages:
1. Human interface, Friendly man-machine dialogue mode
2. Miniaturization economy, Easy Integration with machinery
3. Built-in overload protection to ensure highly efficient and stable system
4. Two-sensor connections, the bilateral detection, precise control of materials center
5. Opt coupler signal transmission, control more stable and more rapid response.
6. Color flow wire-guided positive body
7. Sensor with dust-removal device
8. Non-slip scroll wheel
9. Low Power servo thrusters
10. CE safety certification.
|
Controller Model: |
GDA-6200 |
|
Power Input: |
24VDC ± 5% |
|
Input signal: |
1. sensor signal 0-10V( analog inputs) |
|
|
2. Position Sampling Signal(BOOL) |
|
Output signal: |
± 24VDC, max. 0.8A(PWM) |
|
Output protect: |
Following situation occurrence, the system will Automatic close |
|
|
Motor Output Short circuit |
|
|
2. Material leads correctly to get difficulty seriously |
|
Power consumption: |
36VA |
|
Motor cable: |
0.15mm2x3m, MAX: 20meter, Must independence wiring |
|
|
Have to go together with the line and high pressure electric power line to insulate independently |
|
ambience temperature: |
0 – 50 º C |
|
Air humidity: |
0 – 90 % |
|
Protection class: |
IP54 |
|
Outer shell: |
The aluminum quality die-castings to model |
|
Controller size: |
160× 120× 65mm |
|
Weight: |
1000g |
|
|
EC-2323Q Sensor technical data
|
|
Model: |
EC-2323Q |
|
Power Input: |
DC± 5V Controller supply |
|
Entrance Distance: |
23mm |
|
signal Type: |
Infrared sensor Light source(Shoot)(Don' t support) |
|
Output signal: |
Sensor signal 0-10V(analogue inputs) |
|
Signal range: |
Columnar light source Valid diameter 23MM |
|
Examination Type: |
Materiel brim, Materiel return to medium |
|
Ambience temperature: |
0 – 50 º C |
|
Air humidity: |
0 – 90 % |
|
Anti- shot Light source Interference: |
Sunlight 10, 000 Lux upwards, daylight lamp 3, 000 Lux upwards |
|
Protection class: |
IP54 |
|
Outer shell: |
The aluminum quality is refined to spray |
|
Sensor size: |
81x94x38mm |
|
Weight: |
300g |
|
Spoilage accessory: |
Nonexistence |
|
Maintenance: |
Wipe infrared Windows greasy dirt dust |
