NEW DIESEL MACHINERY CO., LTD can provide all series weichai engines, wellcome to contact with us for more information.
WEICHAI DIESEL ENGINE FOR GENSET
WEICHAI WP6D152E200
PARAMETER: INSTRAIGHT, WATER COOLING, 4 STROKE, WET CYLINDER BLOCK, TURBOCHARGER, AFTER COOLING
DISPLACMENT: 6.75L
BORE * STROKE: 105*130 MM
RATED CAPACITY: 138kw
STANDY BY CAPACITY: 152KW
RUNNING SPEED: 1500RPM
APPLICATION: CAN BE USED FOR INSTRIAL GENSET LOWER THAN120KW
EMISSION: NON-ROAD Euro II.

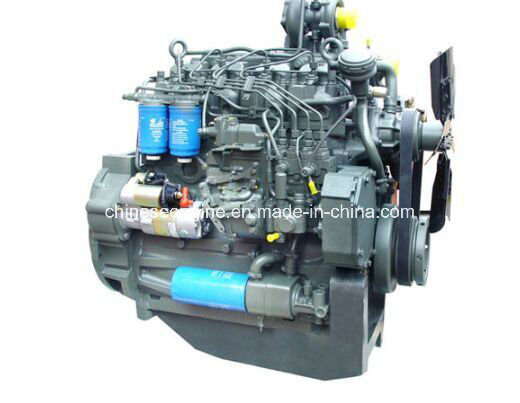

Specification On Weichai Engine WP4G95E221
Main Parameter:
Mode: WP4G95E221
Type closed water cooling, in line, direct injection, four stroke
Rated Output (kW) 70
Aspiration type Turbocharged and intercooler
Speed (r/min) 2200
Cylinder No.-Bore*Stroke(mm) 4-105*130
Total Displacement of Piston(L) 4.5
Steady governing rate Mechanical ≤5%
Emission Standard China Non-road Standard II
Lubrication consumption ≤0.3%
Coolant capacity L 17
Lubrication capacity (L) 9
Noise dB ≤105
Crankshaft Anti clockwise (Facing Flywheel)
Net weight kg 550
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
