Product Specifications
| Prod Model: |
MARINE WEICHAI WP4/WP6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
66-158kw |
| Running Speeed: |
1500-1800rpm |
| Bore*Stroke: |
105*130mm |
| Fuel: |
Diesel Engine |
Product Description

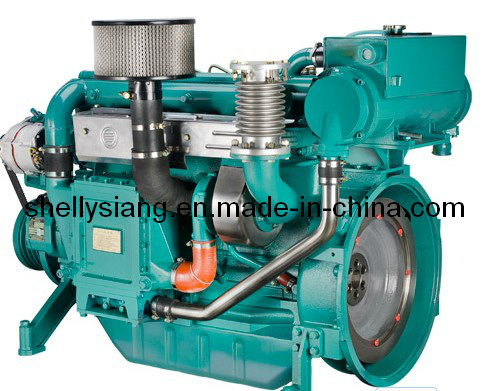

WP4 and WP6 power product for marine diesel oil power generation
WP4 and WP6 series products are jointly developed by Weichai Power and Deutz Company which include the wisdom of staff of European R&D center. With adaptive development of all dimension according to characteristics of power of land based power generation, formed latest supporting power of 50kW to 150kW gen-sets; The engine have characteristics of advanced performance, compact structure, high reliability, environment protect, low noise, easy to start and strong environmental adaptability.
The engine adopts gantry frame structure engine body, single cylinder head and wet cylinder liner. WP6 engine adopts second-generation engine body, and built-in engine oil cooler, increase the cooling capacity of diesel oil and reliability significantly.
Meet qualifications of CCS, ZY, BV and RS; Take the leading in same industry to pass ISO9001 quality system and GJB9001A-2001 military standard
| Engine Model | WP4 | WP6 |
| Cylinder No. | L4 | L6 |
| Bore/Stroke(mm/mm) | 105/130 |
| Displacement(L) | 4.5 | 6.75 |
| Power range(kW) | 66-118 | 132-158 |
| Rate speed range(r/min) | 1500/1800 |
| Lowest fuel consumption(g/kW@h) | ≤198 |
| Emission | IMO tierII |
New Diesel Machinery Co., Ltd. Has more than ten years experience in complete engine, power generator set, engine pump sets and spare parts.
We are the OEM factory of China Cummins(such as B series engines, C series engines, L series engines, and N series, K series, ISBe, ISDe, ISCe, ISLe etc. ); DEUTZ/KHD(912 series, 913 series, 413/513 series, TBD series, and 1013 series, 1015series, D302 series and so on ), ISUZU(4JB1, 4JA1 etc ), PERKINS(1003, 1004 series), CATERPILLAR(3306 series ), SOFIM and so on. With years experience, we also can supply power unit for the engine, design according to customer's special needs.
Meanwhile we manufacture power generator set (marine generator set /industrial generator set ) &engine pump set for all the customer over the world.
Our Goal: Customer-oriented service and quality products.
Our Tenet: Honest, Professional, and innovation-seeking.
