Product Specifications
| Prod Model: |
WP12C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: |
Diesel Engine |
Product Description
| TYPE | FOUR STROKES,WATER COOLED,DIRECT INJECTING COMBUSTION CHAMBER | | AIR INTAKE TYPE | TURBOCHARGE | TURBOCHARGE, INTER-COOLING | | CYLINDER NO.--BORE*STROKE | 6-126*155 | 6-126*155 | 6-126*155 | | DISPLACEMENT (L) | 11.596 | 11.596 | 11.596 | | PRESSURE RATIO | 17:01 | 17:01 | 17:01 | | RATED OUTPUT | 258KW/350hp | 295KW/400hp | 330KW/450hp | | SPEED/RMP | 1500 | 1800 | 2100 | | FUEL CONSUMPTION | ≤192g/kw.h | ≤192g/kw.h | ≤192g/kw.h | | OIL CONSUMPTION | ≤1.63g/kw.h | ≤1.63g/kw.h | ≤1.63g/kw.h | | COOLING TYPE | FORCED WATER COOLED | | LUBRICATION | PRESSURE AND SPLASH | | STARTING | ELECTRIC STARTING | | NET WEIGHT/KG | 1200 | 1200 | 1200 | | DIMENSION/MM | 1717×836×1274 | 1717×836×1274 | 1167*619*1158 |
|
Upgrade and replacement of new power - five special technologies
Saving fuel: The lowest fuel consumption is 192g/kwh
Strong power: External characteristic is up to 2100Nm
Environment protect and low noise: Smoke value in range of full load is less than 1.0Rb

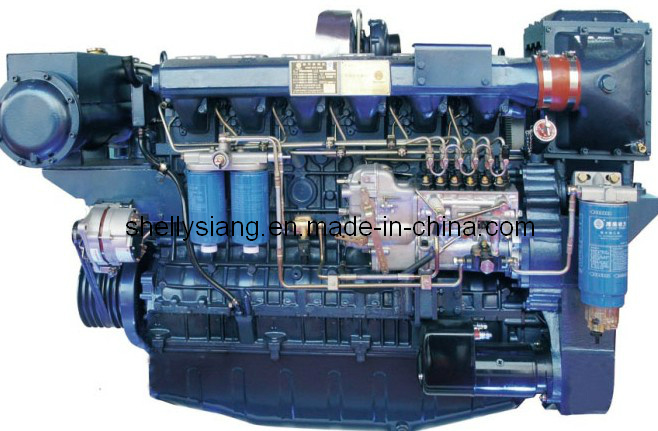

WP12C series marine diesel engines based on Landking national WP12 series diesel engine which Weichai owned independent intellectual property rights, and focus on use characteristics and configuration requirements of marine power, adopt design concepts to optimize and design special energy saving and environment protection diesel engine for marine, and is the ideal power for inland shipping, fishing and public boat.
Five special technologies
Reliability Safety High efficiency Low-noise Convenience
Reliability-Special oil pan technology for marine-Flat oil pan
Improve reliability
Adopt special flat oil pan for marine with overall stamping design, and arrange the ribs reasonably to improve the strength; No welding line on the surface, formed at one time, prevent the leakage failure, and improve reliability.
Convenient to maintenance
Reduce the overall height, increase the distance to the bottom of the cabin, convenient to replace
