Product Specifications
| Prod Model: |
qym-0012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mesh Type: |
Construction Wire Mesh |
| Width: |
Optional |
| Wire Diameter: |
3.0mm-6.0mm |
| Length: |
50m~200m |
| Opening Size: |
as Your Request |
| Weave: |
Plain/ Twill/ Dutch Weave |
| Finish1: |
Electro-Gal, Hot Dipped Gal |
| Finish 2: |
PVC Coated or Stainless Steel |
| Surface: |
All Ral Standard Color |
| Type: |
Welded Mesh |
| Certification: |
BV |
| Application: |
Decorative Mesh |
| Surface Treatment: |
Galvanized |
| Material: |
Galvanized Iron Wire |
| Condition: |
New |
| Color: |
Green |
| Mesh Size: |
Optional |
| Hole Shape: |
Rectangle or Square |
| Weave Technique: |
Welded |
Product Description

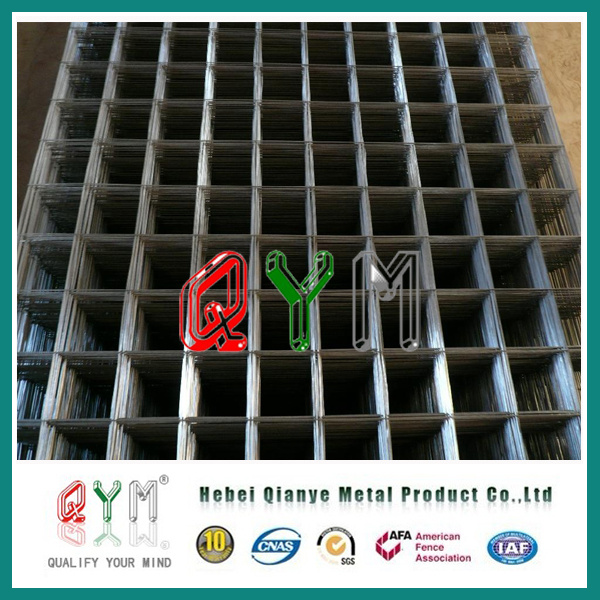

Welded Wire Mesh
1. Materials:
Galvanized iron wire, hot DIP galvanized iron wire, PVC coated wire, stainless steel wire.
2. Applications:
Welded mesh is mainly used in fencing for buildings and factories, as animal enclose and fence in agriculture and other uses.
3. Major types of processing:
>welded mesh welded before galvanized
>welded after galvanized
>welded before hot-DIP galvanized
>welded after hot-DIP galvanized.
4. Finish:
Electro-galvanized, hot-dipped galvanized, stainless steel or PVC coated
5. Package:
>Waterproof Paper and Plastic film
> Waterproof paper and shrink plastic film
> As customers' request.
6. Standard Specifications
(see the tables below)
Q&A
Q: Where is your company?
A: QYM is a Chinese company. The factory is located in Raoyang County. There is an office in Shijiazhuang City and a registered sub-company in HongKong called Qianye Metal (HK) Limited.
Q: What's QYM's main product?
A: Metal fencing and security wire.
Q: What's the gurantee of QYM's product?
A: QYM's products are certified by ISO9001: 2008, and guaranteed at least 5 to 10 years.
Q: What's QYM's after service policy?
A: QYM's after service staff will contact you when you received the products, and ask for your comments on the products.
Any issues on QYM's products, please call us by +86-311-85525815. QYM will service you timely with whole-heartedness and profession.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable.
Q: How can we get the quotation from QYM?
A: Please send your inquiry to QYM's official email
Q: How to be QYM's agent, wholeseller or distributor in my country?
A: Please send your company's basic information. COM. A feedback will be sent to you within 7 working days.
Specifications of Welded Mesh
|
Opening
|
Wire Diameter
|
In inch
|
In metric unit(mm)
|
1/4" x 1/4"
|
6.4mm x 6.4mm
|
22,23,24
|
3/8" x 3/8"
|
10.6mm x 10.6mm
|
19,20,21,22
|
1/2" x 1/2"
|
12.7mm x 12.7mm
|
16,17,18,19,20,21,22,23
|
5/8" x 5/8"
|
16mm x 16mm
|
18,19,20,21,
|
3/4" x 3/4"
|
19.1mm x 19.1mm
|
16,17,18,19,20,21
|
1" x 1/2"
|
25.4mm x 12.7mm
|
16,17,18,19,20,21
|
1-1/2" x 1-1/2"
|
38mm x 38mm
|
14,15,16,17,18,19
|
1" x 2"
|
25.4mm x 50.8mm
|
14,15,16
|
2" x 2"
|
50.8mm x 50.8mm
|
12,13,14,15,16
|
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 2.4m
2,Special sizes available on request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
|
Galvanized Fencing Mesh
|
Opening
|
Wire Diameter
|
In inch
|
In metric unit(mm)
|
2" x 3"
|
50mm x 75mm
|
2.0mm,2.5mm,1.65mm
|
3" x 3"
|
75mm x 75mm
|
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
|
2" x 4"
|
50mm x 100mm
|
2.11mm,2.5mm
|
4" x 4"
|
100mm x 100mm
|
2.0mm,2.5mm
|
Technical Note:
1,Standard roll length:130m;width: 0.5m to 2.4m
2,Special sizes available on request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
|
PVC coated welded mesh
|
Opening
|
Wire Diameter
|
In inch
|
In metric unit(mm)
|
1/2" x 1/2"
|
12.7mm x 12.7mm
|
16,17,18,19,20,21
|
3/4" x 3/4"
|
19mm x 19mm
|
16,17,18,19,20,21
|
1" x 1"
|
25.4mm x 25.4mm
|
15,16,17,18,19,20
|
2" x 2 "
|
50.8mm x 50.8mm
|
15,16,17,18,19,20
|
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 2.4m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls.special packing available on request.
|
Hebei Qianye Metal Product Co., Ltd is a company engaged in production and exportation of metal fence as well as other metal products. Its registered capital is RMB50, 100, 000(about USD7, 400, 000), covering a land area of 30, 000 square meters.
Since its foundation in 2002, this company has been always adhering to the principle of uncompromising integrity and credibility first in doing things. We making our own Brand QYM and has been exporting the QYM-Welded Mesh Fence, QYM-Airport Fence, QYM-High Security Fence, QYM-Palisade Fence and other high grade protective fences to over 100 countries and regions in Europe, America, Africa, Middle East and Australia. In 2008, our export of 120 km metal fence to America made us an apparent leader in the local fence industry; In 2009, we successfully took and completed the orders from UN which perfectly proved our good reputation and our strong production capability.
Through years of production experience, we deeply understand that the qualified product is the factory basis for survival and development. In order to ensure consistency of product quality, our company introduced a fully automatic panel fence welding equipment, automatic electrostatic spraying production line, as well as advanced welding machines, cutting machines, punching machines and bending machines. We have first-class product design department responsible for new product reserch, first-class quality control department responsible for timely monitoring of product at each production process and first-class one-to-one sales staff to provide you with efficient services.
