Product Specifications
| Prod Model: |
DYWM849 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Barbed Length: |
1.5-3cm |
| Barbed Spacing: |
7.5cm-15cm |
| Color: |
Silver |
| Type: |
Welded Mesh |
| Certification: |
ISO9001 |
| Mesh Size: |
1 Inch |
| Application: |
Filter |
| Surface Treatment: |
Galvanized |
| Material: |
Galvanized Iron Wire |
| Hole Shape: |
Square |
| Weave Technique: |
Plain Weave |
| Condition: |
New |
Product Description
Welded Wire Mesh
Material: High quality low-carbon steel wire, black wire or stainless steel wire
Surface treatment: Electro-galvanized, hot-dipped galvanized, PVC coated

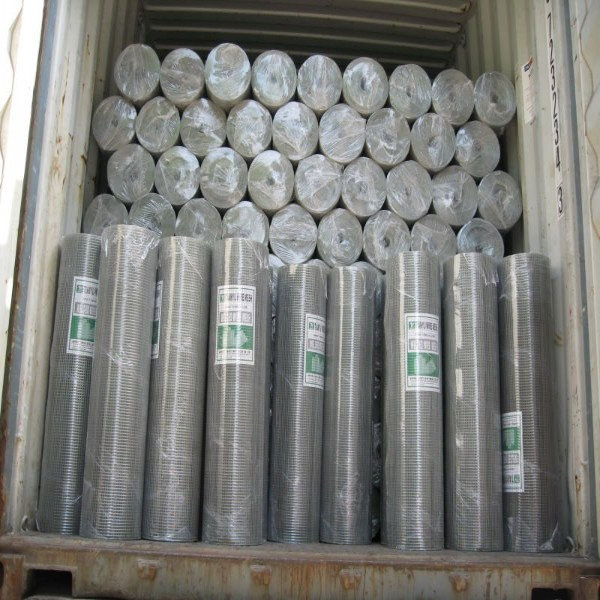

Packing: In rolls packed with moistureproof paper and plastic film. Custom packing available at request
Manufacture process: The electro-galvanized and hot dip galvanized welded wire mesh, which galvanized after welding, PVC coated mesh are made with high-quality steel wire, galvanized then PVC coated.
Characters: Smooth mesh surface, well-proportioned meshes, strong welded points and bright luster. The mesh doesn't come loose even if cut in parts or being exerted force on parts. Compared with general iron wire, the products are better in respects of anti-corrosive and anti-rust
Roll Width: 24inch, 36inch, 1Metre, 48inch, 72inch or 84inch
Roll Length: 100feet or 150feet
Note: other roll width or roll length can be made according to request.
Mesh Size |
Wire Gauge Diameter |
In MM |
In Inch |
BWG No. |
MM |
6.4mm |
1/4Inch |
BWG24-22 |
0.56mm- 0.71mm |
9.5mm |
3/8Inch |
BWG23-19 |
0.64mm - 1.07mm |
12.7mm |
1/2Inch |
BWG22-16 |
0.71mm - 1.65mm |
15.9mm |
5/8Inch |
BWG21-16 |
0.81mm - 1.65mm |
19.1mm |
3/4Inch |
BWG21-16 |
0.81mm - 1.65mm |
25.4x 12.7mm |
1 x 1/2Inch |
BWG21-16 |
0.81mm - 1.65mm |
25.4mm |
1Inch |
BWG21-14 |
0.81mm - 2.11mm |
38.1mm |
1 1/2Inch |
BWG19-14 |
1.07mm - 2.11mm |
25.4x 50.8mm |
1 x 2Inch |
BWG17-14 |
1.47mm - 2.11mm |
50.8mm |
2Inch |
BWG16-12 |
1.65mm - 2.77mm |
50.8mm to 305mm |
2 to 12Inch |
At Request |
Anping DongYa Wire Mesh Production Co., Ltd was founded in 1996, located in "Hometown of Wire Mesh in China". Now we are a leading manufacturer of wire and mesh. Due to high quality products, reasonable price and considerate services, our company enjoys a high reputation both at home and abroad. At present, we have 156 employees, 3 engineers, 11 inspectors. Equipped with more than 280sets advanced machines of production and inspection. our annual output is 9.60 million square meters of mesh and 80 million tons of various metal wire, which of those more than 90% are used to export. We have been producing the greatest width of wire mesh is 6 meters.
Our main products cover wire: galvanized wire, iron wire, stainless steel wire, tie wire, loop tie wire, and mesh: stainless steel wire mesh, welded wire mesh, iron wire mesh, polyester mesh, polyester printing screen. We have adopted advanced international quality control system and our products are also manufactured in accordance with international standard strictly.
Good quality, competitive price, efficient service and about thirty years experiences, these advantages have enable us to be one of the most reliable suppliers of wire mesh in Anping County. And we have established regular business relationship with many customers from USA, Australia, Germany, the UK, Japan, Singapore, Korea and some other countries and regions of the world.
We always think "to be creditable", "to be dedicated", "to learn" and "to innovate" as the root of our enterprise development. To ensure our long-term success, we aim to build value for our customers, employees and the society.
We Sincerely invite you to visit our company and we are looking forward to cooperating with you.
