Welding Forming Machine

Name: Welding Forming Machine
Brand: China-Manufacturer-Directory.com
SKU: 696132722
Availability: InStock
Rating: 4.7 (94 reviews)

Supplier:	Botou Golden Integrity Roll Forming Machinery Co., Ltd.
Price:	US $ 300000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pipe Material:	Carbon Steel
Dimension(LWH):	6572.8
Power(W):	Power(W)
Weight:	40t
Certification:	ISO,CE,SGS
Round Diameter:	25-90mm,1.0-4.0mm
Square Tube:	1515-7070mm, 1.0-3.0mm
Voltage:	380V 50Hz 3phase

Product Description

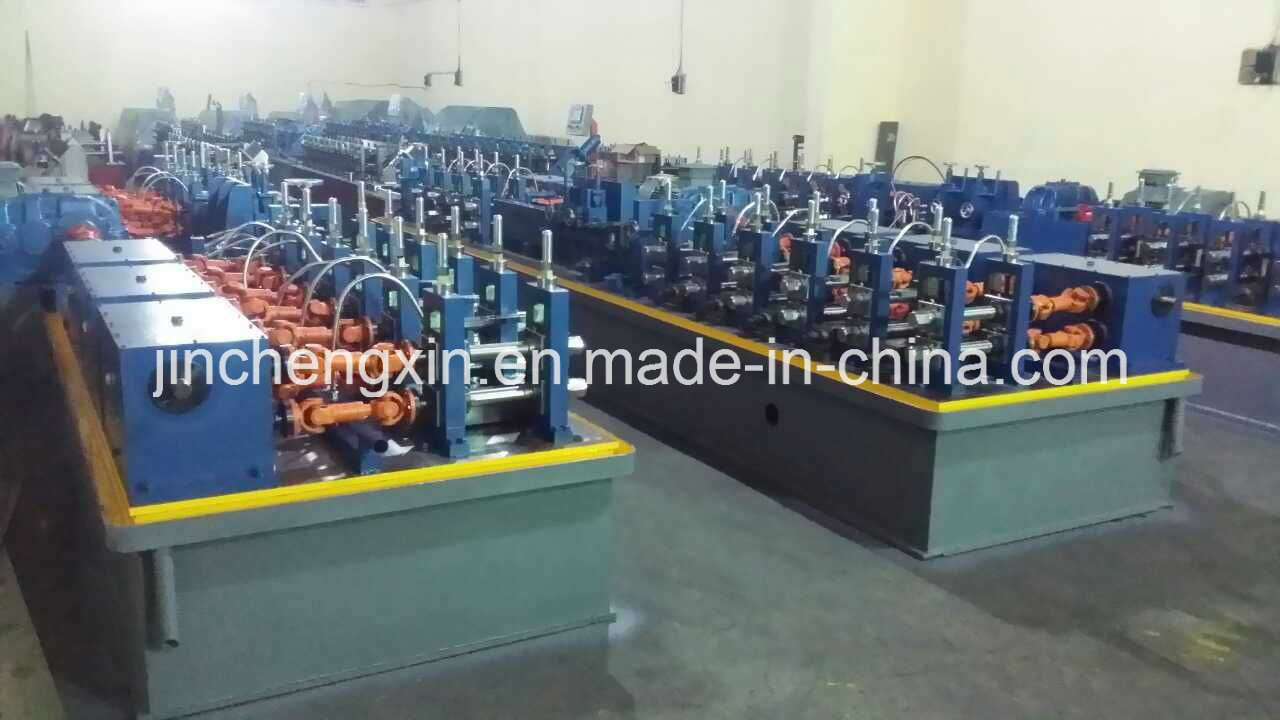

High frequency straight seam welded pipe mill

High frequency welded pipe mill is the special equipment producing welded steel pipe and profile pipe for industries such as metallurgy,construction,transportation,machinery,vehicles and so on.Take cold or hot rolled steel as raw materials,through cold formed and high frequency welding method to produce the round pipe,square pipe and rectangle pipe.

1 Raw material: Carbon steel,Galvanized steel
2 Round diameter: 25-90mm,1.0-4.0mm
3 Square tube:15*15-70*70mm, 1.0-3.0mm

General processing:

Double head uncoiler → Shear & butt welder → Accumulator → Forming section(flattening unit+mani driving unit+forming unit+guide unit) → High frequency welding unit+ squeeze roller → De-burr frame → Cooling unit → Sizing unit and straightener → Flying saw under computer control → Run out table.

1.Double head uncoiler:

Loading the raw material then seperating the coil stock to next stage.

2.Shearing and butter-welding machine:

Which insure two coiled steel strips shearing tidily and then welding together and leveling weld seam.

3.Accumulator:

Storing enough strips to ensure manin machine to run continuously during coil changing period.

4.Forming and welding machine:

After the steel strip entering into the forming machine,the steel strip will be extruded to a round shape by rollers.Then HF welding machine welding and connect the welding seam.Scrape clean the welding seam to make sure the pipe is smooth.

5.Sizing machine:

Pipe come from forming machine maybe not perfect and have some tolerance,so we need sizing machine to finish the pipe,achieve the accuracy we expected.If you want to produce square,rectangle or some special shape tube,we just change the molds of sizing machine.

6.Flying cutting saw:

Pipe or tube finished from sizing machine is very long,so we need fly cutting saw to cut the pipe we need,length can be setting according to your requirement.

7.Rut out table:

It is used to convey the finished pipe,can set the direction when pipe off line.Final worker pack it.
