Product Description

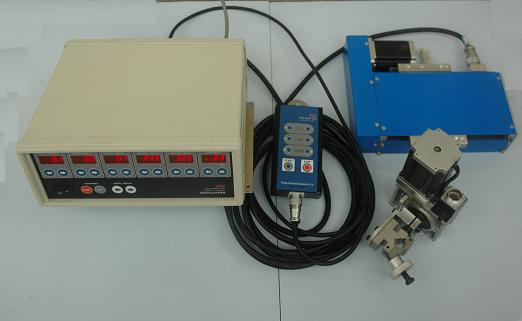

Welding Oscillator
This welding oscillator controls the torch with back and forth movement. It can reduce the number and layers of weld by the controlling of oscillate speed, width and pause time. Then reduce welding defects for perfect welding seam. ED-WL welding oscillator uses advanced micro-controller, high-brightness LED display and long life touch buttons. All input and output ports are using the optical isolation, which makes reliable and stable performance.
Left/right dwell time: 0.1~5s
Center dwell time: 0~5s
Accuracy of dwell time: 0.1s
Oscillate width: 0~100mm
Accuracy of width: 0.2mm
Oscillate speed: 0~2400mm/min
Accuracy of oscillate speed: 0.1mm/s
Stepping motor driver, transmitted by ball screw and linear bearing.
Loading capacity: 25KG
16 groups oscillate parameters.
Achieve long-distance operation with remote controller (OPTION)
Remote control port can be connected with the PLC, and also set the encoder port by user's requirements.
