Product Specifications
| Prod Model: |
Aws E6013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Offered |
| Size: |
2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm |
| Package: |
2.5/5kgs/Inner Box, 20kga/Outer Box |
| Length: |
300mm, 350mm, 400mm |
| Certificate: |
ISO 9001, ABS, CE, Aws, CQC |
| Type: |
E (',Carbon Steel Electrodes/ Low Alloy Steel Electrodes) |
| Function: |
High Efficient Iron Powder Electrode |
| Material: |
Low Carbon Steel, Alloy Steel |
Product Description

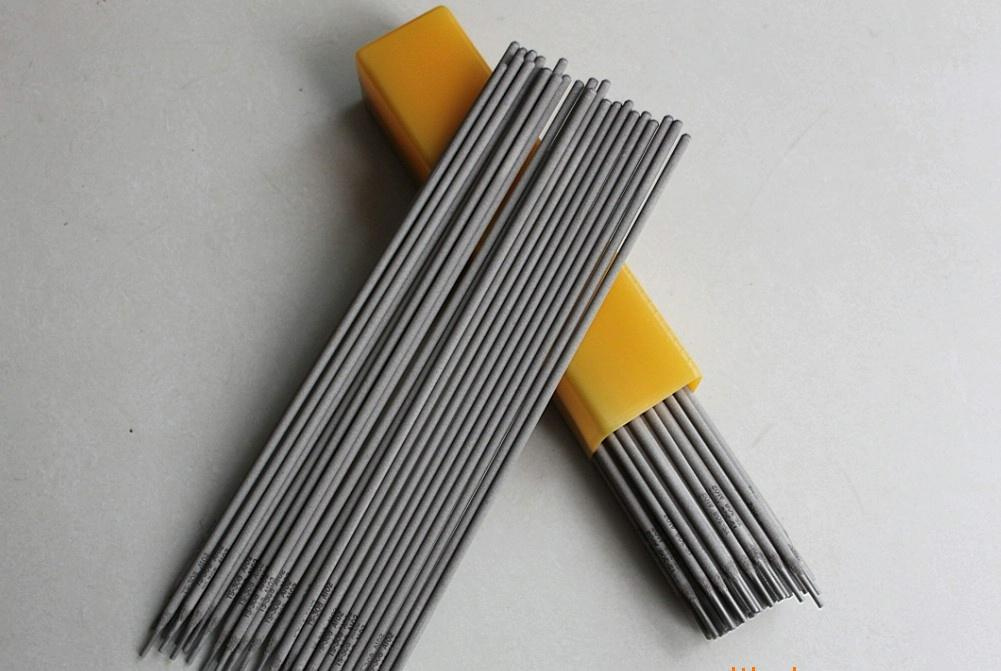

E6013 welding electrodes:
*Applications: For important mild steel stucture and low steel with low strenght.
*Size: 2.5mmx300mm, 3.2x350mm, 4.0x400mm
*Materials: Titanium oxide coating, carbon steel covered electrode
*Color: Grey or as required
*Features: Omni-directional welding, Excellent welding process performance, Easy to start arc, ensure
The weld appearance
*Advantages: The electrode is able to provide excellent welding technological performance because the arc is extra stable and spatter loss is negligible, the slag has good fluid and solidified slag is very easy to remove, the manipulate is free and restrike is easy. It can give smooth and beautiful ripples.
Description:
It is a mild steel electrodes with titanium coating, H08A core wire, and suitable for both AC and DC.
It can be welded in all positions with easy operate and restrike. It is used in welding general carbon steel and Zinc-coated steel sheets for ships and so on.
Attention:
It requires no hearting before using, if welding electrodes is damp, pls hearting it under the temperature 100 for 30-60 minutes according to the damp situation.
Characteristics
Rutile type, thin coated, general purpose mild steel electrode depositing smooth welds of radiographic quality having good mechanical properties. The slag is thin and easily removable.Products Show
factory scale
Certificate
Delivery:
MOQ: 5MT,Net weight delivery
Time: 10~20 days, Qingdao Port
Package: OEM package, Neutral carton, SOLID brand carton
1.Delivery time to North of America is 30~35 days.
2.Delivery time to Asia countries&middle east is 5~30 days.
3.Delivery time to Africa countries is 40~50 days.
4.Delivery time to Euro countries is 30~40 days.
|
Commodity |
Size |
Batch No. |
Mfg Date |
Standard |
Shielding Gas |
Date of issue |
|
Welding electrodes |
3.25 mm |
- |
2014.03 |
AWS E6013 |
-- |
2014.03 |
|
Chemical Composition (%) |
|
Element |
C |
Mn |
Si |
P |
S |
Cu |
Ni |
Cr |
Mo |
V |
Ti |
|
Specification |
≤0.10 |
0.32-0.55 |
≤0.30 |
≤0.035 |
≤0.030 |
|
- |
- |
- |
- |
- |
|
Filler Metal |
0.065 |
0.4 |
0.14 |
0.017 |
0.015 |
|
- |
- |
- |
- |
- |
|
Mechanical Properties |
|
|
Tensile Strength
MPa |
Yield Point
MPa |
Elongation
(%) |
Impact Temp
(C) |
Impact Value
(J) |
|
Requirement |
440-570 |
≥355 |
≥22 |
0 |
≥47 |
|
Real Parameter |
540 |
455 |
26 |
0 |
94 |
|
Remarks |
We hereby to certify that the mechanical properties and chemical composition of the whole lot satisfy all requirements.
THIS PRODUCT CONTAINS NO MERCURY |
