Product Specifications
| Prod Model: |
DLS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mining Object: |
Electromagnetic Separator |
| Type: |
Beneficiation Machinery |
Product Description
DLS high gradient magnetic separator is independently developed and produced by YYDLS, which is exported to Australia, Turkey, Vietnam, India, etc. For iron ore updating and ceramics materials cleaning.
Technical Parameter
1. Ring diameter: 500~3000 mm
2. Magnetic intensity: 11000 GS (intensity adjustable)
3. Capacity: 0.05~250 TPH
4. Energizing Power(kW): 0~87
5. Water Consumption (m3/h): 1.5~530
6. Feedin Particle Size (mm): 30~100
4. National Patent No.: ZL 2008 2 0119589.7

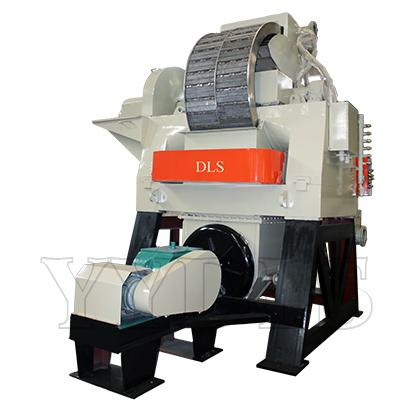

Double Vertical Ring High Gradient Magnetic Separator Model DLS is a patented mineral processing machine for beneficiation of metallic and non-metallic minerals. This separator is independently designed and manufactured by Yueyang Dalishen Electromagnetic Machinery Co., Ltd.
Functions of magnetic separator (WHIMS):
1. Concentrate fine, feebly magnetic minerals, such as hematite, limonite, siderite, ilmenite, chromite, wolframite, tantalum niobium, tungsten, cassiterite, etc.
2. Purifying (iron and titanium removal) nonmetallic minerals such as quartz, feldspar, nephelite, fluorite, sillimanite, spodumene, kaolin, etc.
Features: High Intensity, high gradient, vertical rotation of rings, pulsating beneficiation, high frequency vibrator, no matrix block, high concentration rate, adjustable to different fineness, concentration and mineral grade.
Separator Model: DLS 250, DLS 200, DLS 175, DLS 150, DLS 125, DLS 100, DLS 75, DLS 50
We offer:
- Mineral specimens test for free
- Tailored magnetic separator
- Considerate service
Please inform us the characteristics of minerals to be beneficiated and your specific needs for inquiry.
For More Details Please Feel Free to Contact Us.
|
Technical Date of DLS Series |
|
Part\Model |
DLS-50 |
DLS-750 |
DLS-100 |
DLS-125 |
DLS-150 |
DLS-175 |
DLS-200 |
DLS-250 |
DLS-300 |
|
Ring diameter (mm) |
500 |
750 |
1000 |
1250 |
1500 |
1750 |
2000 |
2500 |
3000 |
|
Rotation speed (r/min) |
0~3 |
0~3 |
0~4 |
0~4 |
0~4 |
0~4 |
0~4 |
0~4 |
0-4 |
|
Particles size mm(-200 mesh) |
-1.0(30-100) |
-1.0(30-100) |
-1.3(30~100) |
-1.3(30~100) |
-1.3(30~100) |
-1.3(30~100) |
-1.3(30~100) |
-1.3(30~100) |
-1.3(30~100) |
|
Slurry density(%) |
10~40 |
10~40 |
10~40 |
10~40 |
10~40 |
10~40 |
10~40 |
10~40 |
10~40 |
|
Slurry throughput(m3/h) |
0.5~1.0 |
1.0~2.0 |
12.5~20 |
20~50 |
50~100 |
75~150 |
100~200 |
180~450 |
350-650 |
|
Handling capacity(t/h) |
0.05~0.25 |
0.1~0.5 |
4~7 |
10~18 |
20~30 |
30~50 |
50~80 |
80~150 |
150-250 |
|
Rated back ground Field intensity(T) |
0-1.1 |
0-1.1 |
0-1.1 |
0-1.1 |
0-1.1 |
0-1.1 |
0-1.1 |
0-1.1 |
0-1.1 |
|
Rated Exciting current(A) |
0-1200 |
0-850 |
0-650 |
0-850 |
0-950 |
0-1200 |
0-1200 |
0-1400 |
0-1400 |
|
Rated Exciting voltage(V) |
0-8.3 |
0-13 |
29 |
0-26.5 |
0-23 |
0-28 |
0-31 |
0-45 |
0-62 |
|
Rated exciting power(KW) |
0-10 |
0-11 |
0-17 |
0-19 |
0-27 |
0-37 |
0-42 |
0-63 |
0-87 |
|
Ring motor power(KW) |
0.18 |
0.55 |
1.1 |
1.5 |
3 |
4 |
5.5 |
11 |
18.5 |
|
Vibration motor power(KW) |
0.37 |
0.75 |
2.2 |
2.2 |
4 |
4 |
7.5 |
11 |
18.5 |
|
Vibration stroke(mm) |
0~50 |
0~50 |
0~30 |
0~20 |
0~30 |
0~30 |
0~30 |
0~30 |
0~30 |
|
Vibration frequency(r/min) |
0~400 |
0~400 |
0~300 |
0~300 |
0~300 |
0~300 |
0~300 |
0~300 |
0~300 |
|
Water supply pressure (MPa) |
0.1~0.2 |
0.1~0.2 |
0.2~0.4 |
0.15~0.3 |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
0.2~0.4 |
|
Water consumption (m3/h) |
0.75~1.5 |
1.5~3.0 |
10~20 |
30~50 |
60~100 |
80~150 |
100~200 |
200~400 |
350-530 |
|
Mainframe weight(t) |
2 |
3 |
6 |
14 |
20 |
35 |
50 |
105 |
175 |
|
Weight of Heaviest Part |
0.5 |
0.7 |
2.5 |
4.5 |
5 |
12 |
16 |
18 |
25 |
|
Overall dimension(mm) |
1800*1400*1320 |
2000*1360*1680 |
2700*2000*2400 |
3200*2320*2700 |
3600*2900*3200 |
3900*3300*3800 |
4200*3550*4200 |
5800*5000*5400 |
6600*5300*6400 |
