Product Specifications
| Prod Model: |
DLS-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mining Object: |
Wet Magnetic Separator |
| Application 1: |
Concentrate Metallic Minerals Such as Hematite and |
| Application 2: |
Purify Non-Metallic Minerals Such as Feldspar and |
| Capacity (Solid): |
0.05~0.25t/H |
| Diameter Of Ring: |
500 Mm |
| Max Background Field: |
12000 GS |
| Max Ore-Feeding Size: |
-1.3 Mm |
| Ore-Feeding Concentration: |
10~40% |
| Capacity (Slurry): |
0.5~1.0 M³/H |
| Machine Weight: |
1.5~2 Tons |
| Type: |
Beneficiation Machinery |
Product Description

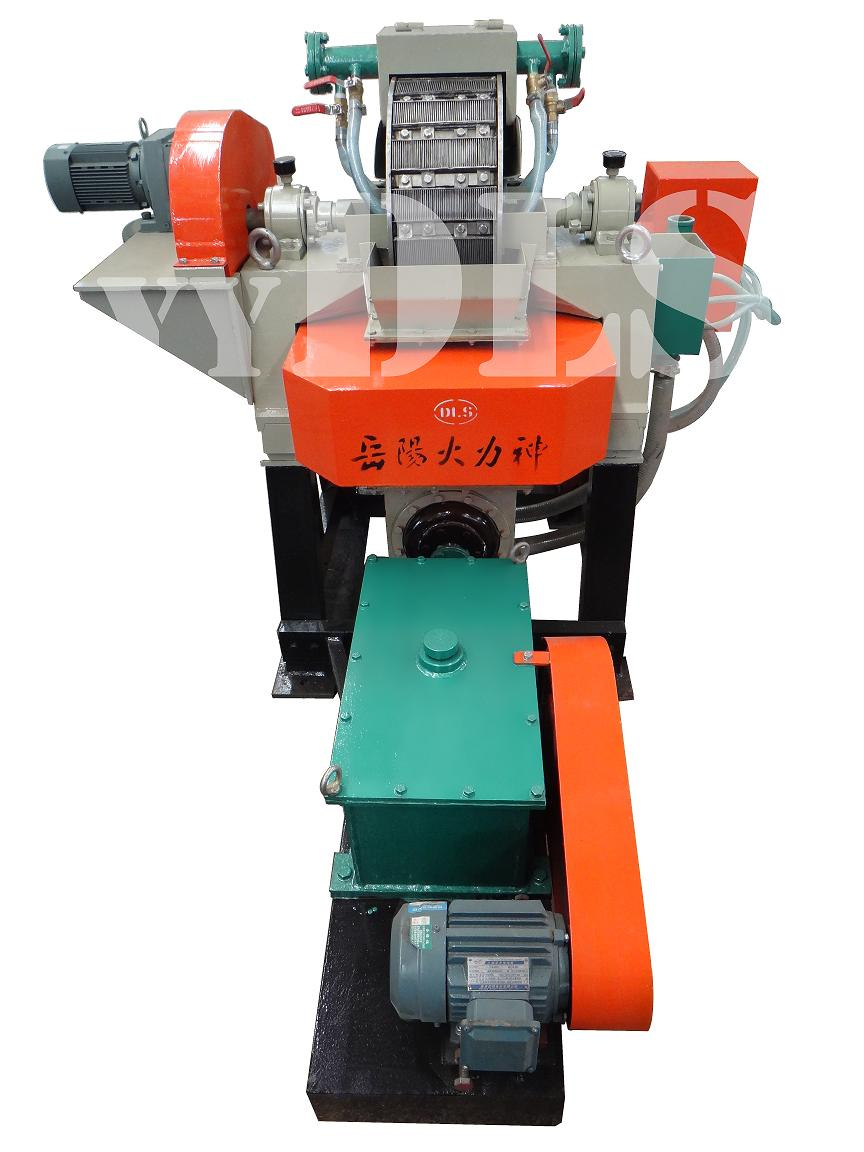

DLS High Gradient Magnetic Separator from YYDLS is well developed magnetic beneficiation machine, with wide application in mineral processing.
General Specification of Separator
-Processing: Wet Fine
-Ring diameter: 500~3000 mm
-Magnetic intensity: 11000 GS (intensity adjustable)
-Throughput(t/h): 0.05~250
-Pulp Concentration(%): 10~40
-Feeding Particle Size (mesh): 30~100
-Energizing Power(kW): 0~87
-Water Consumption (m3/h): 1.5~530
-National Patent No.: ZL 2008 2 0119589.7
Functions of magnetic separator (WHIMS):
1. Concentrate fine, feebly magnetic minerals, such as hematite, limonite, siderite, ilmenite, chromite, wolframite, tantalum niobium, tungsten, cassiterite, etc.
2. Purifying (iron and titanium removal) nonmetallic minerals such as quartz, feldspar, ziconite, nephelite, fluorite, silica sand, spodumene, kaolin, etc.
Features and Benefits
-High Gradient Matrix Medium
-High Intensity
-vertical rotation of rings
-pulsating beneficiation
-high frequency vibrator
-less matrix block
-high concentration rate
-different configurations to varies particle size, concentration and mineral grade
Options:
DLS 250, DLS 200, DLS 175, DLS 150, DLS 125, DLS 100, DLS 75, DLS 50
We offer:
- Mineral specimens test for free
- Tailored magnetic separator
- Processing Plant Consultancy
Please inform us the characteristics of minerals to be beneficiated and your specific needs for order.
Double Vertical Ring High Gradient Magnetic Separator Model DLS is a patented mineral processing machine for beneficiation of metallic and non-metallic minerals. This separator is independently designed and manufactured by Yueyang Dalishen Electromagnetic Machinery Co., Ltd.
Model
Part |
DLS-50 |
DLS-75 |
DLS-100 |
DLS-125 |
DLS-150 |
DLS-175 |
DLS-200 |
DLS-250 |
Ring Diameter
(mm) |
500 |
750 |
1000 |
1250 |
1500 |
1750 |
2000 |
2500 |
|
RotationSpeed (r/min) |
0-3 |
0-3 |
0-3 |
0-3 |
0-3 |
0-3 |
0-3 |
0-3 |
|
Max. Feeding Particles Size (mm) |
-1.0 |
-1.0 |
-1.3 |
-1.3 |
-1.3 |
-1.3 |
-1.3 |
-1.3 |
|
Suitable Size Distribution |
30%~ 100% = -200 BBS mesh |
Slurry Density
(%) |
10-40 |
10-40 |
10-40 |
10-40 |
10-40 |
10-40 |
10-40 |
10-40 |
Slurry Throughput
(m3/h) |
0.5-1.0 |
1.0-2.0 |
12.5-20 |
20-50 |
50-100 |
75-150 |
100-200 |
180-450 |
Feeding CapacitySolid
(t/h) |
0.05-0.25 |
0.1-0.5 |
4-7 |
10-18 |
20-30 |
30-50 |
50-80 |
80-150 |
Rated BG Intensity
(Tesla) |
0-1.2 |
0-1.2 |
0-1.2 |
0-1.2 |
0-1.2 |
0-1.2 |
0-1.2 |
0-1.2 |
Rated Exciting Current
(A) |
0-1200 |
0-850 |
0-650 |
0-850 |
0-950 |
0-1200 |
0-1200 |
0-1400 |
Rated Exciting Voltage
(V) |
0-8.3 |
0-13 |
0-26.5 |
0-23 |
0-28 |
0-31 |
0-35 |
0-45 |
Rated Exciting Power
(kw) |
0-10 |
0-11 |
0-17 |
0-19 |
0-27 |
0-37 |
0-43 |
0-63 |
Ring Motor Power
(kw) |
0.37 |
0.55 |
1.1 |
2.2 |
4 |
5.5 |
7.5 |
11 |
Vibration Motor Power
(kw) |
0.55 |
0.75 |
2.2 |
2.2 |
4 |
5.5 |
7.5 |
11 |
Vibration Stroke
(mm) |
0-20 |
0-20 |
0-20 |
0-20 |
0-20 |
0-30 |
0-30 |
0-30 |
Vibration Frequency
(r/min) |
0-300 |
0-300 |
0-300 |
0-300 |
0-300 |
0-300 |
0-300 |
0-300 |
|
Water Supply Pressure (MPa) |
0.1-0.2 |
0.1-0.2 |
0.2-0.4 |
0.15-0.3 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
0.2-0.4 |
Water Consumption
(m3/h) |
0.75-1.5 |
5~8 |
10-20 |
30-50 |
60-90 |
80-120 |
100-150 |
200-300 |
|
Cooling Water Quantity(m3/h) |
1.5-2 |
1.5-2 |
2-2.5 |
2.5-3 |
3-4 |
4-5 |
5-6 |
6-7 |
MainBody Weight
(t) |
1.5 |
3 |
6 |
14 |
20 |
32 |
48 |
102 |
Overall dimension
(mm) |
Length |
1900 |
2000 |
2800 |
3400 |
3450 |
3900 |
4290 |
5200 |
|
Width |
1580 |
1360 |
2200 |
2400 |
3050 |
3500 |
3800 |
4850 |
|
Height |
1320 |
1680 |
2560 |
2640 |
3150 |
3800 |
4500 |
5560 |
