Wet Type Magnetic Cylinder Separator for Sale Mining Equipment

Name: Wet Type Magnetic Cylinder Separator for Sale Mining Equipment
Brand: china-manufacturer-directory.com
SKU: 765787915
Availability: InStock
Rating: 4.9 (36 reviews)

Supplier:	Jiangxi Shicheng Yongsheng Ore Processing Equipment Manufacturing Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR

Product Specifications

Prod Model:	YS-CT400/900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Magnetic Separator:	Strong Magnetic Field Force
Type:	Magnetic Separator
Voltage:	220V
Certification:	CE
Warranty:	2 Years
Color:	Grey
Customized:	Customized
Condition:	New
Weight:	468 Kg

Product Description

Brief Introduction:

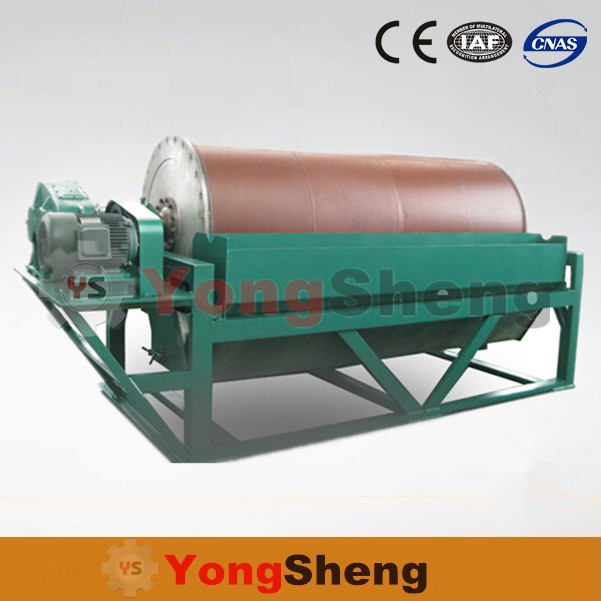

Our CT series permanent magnetic cylinder separator is mainly make from NdFeB-one kind of permanent magnetic material and ferrite composed of compound magnetic system. This magnetic separator featured with strong magnetic field force, high efficiency of iron wiping ratio, easy operation, reliable quality and safety guarantee. Further more, weight of this series machine is 30% lighter than ordinary ferrite magnetic separator and magnetic field on the cylinder surface is 150-600mT. Application of this machine is focus in picking of magnetic dopant in power materials like silica sand and purification of magnetic materials. In order to attain large scale purification or picking production, you can make several machines to work together by cascading or parallel connection. This series machine qualified by JB/T7895-1999 standard.

Model Choosing Principle:

We advice users to choose model with different magnetic field strength according to their different materials to be processed. Take gold, iron, copper ore as example, iron ore mixed in these ore is the most precious material. In this case, we need to pick out iron without other impurities which will degrade the ore. Strong magnetic field force magnetic separator is the best choice.
To attain the best separation effect, we must decide the machine when we have the features of the ore. Further more, an analysis about the ore is necessary.

Models&Parameters:

Models&Technical Parameters
Model	Diameter	Tube Length	Magnetic induction density	Rotation speed(r/min)	Particle Sorting Size	Dealing Capacity		Power	Weight
Model	mm	mm	mt	r/min	mm	t/h	m3/h	Kw	kg
YS-CT400/400	400	400	100 to 600	48	0.8 to 6	0.5 to 1	1.5 to 3	1.1	301
YS-CT400/900	400	900	100 to 600	48	0.8	2 to 5	6 to 12	1.1	468
YS-CT500/600	500	600	100 to 600	44	0.8	3 to 7	9 to 21	1.5	423
YS-CT500/1200	500	1200	100 to 600	44	0.8	5 to 15	15 to 45	1.5	711
YS-CT600/900	600	900	100 to 600	39	0.8	8 to 15	24 to 45	2.2	678
YS-CT600/1200	600	1200	100 to 600	39	0.8	10 to 20	30 to 60	2.2	846
YS-CT750/900	750	900	100 to 600	35	0.8	10 to 25	30 to 75	2.2	736
YS-CT750/1800	750	1800	100 to 600	35	0.8	20 to 45	60 to 135	3	1268
YS-CT900/1800	900	1800	100 to 600	31	0.8	25 to 55	75 to 165	4	1456
YS-CT1050/2100	1050	2100	100 to 600	22	0.8	45 to 88	135 to 264	5.5	2006
YS-CT1200/2400	1200	2400	100 to 600	19	0.8	65 to 100	195 to 300	7.5	3968

Working Principle of Magnetic Separator:

The pulp flows into cell body from the pulp box, and under the water flow of the feeding spray pipe, the mineral grain will go into the feeding area of the cell body in the loose condition. In the magnetic field, the magnetic ore particles will have magnetic gathering and form magnet group or magnet chain which is influenced by the magnetic force inside the pulp and moves to the magnetic pole and finally is absorbed onto the cylinder.

Features of Magnetic Separator:

1. Strong Magnetic field force.
2. High iron wiping ratio&efficiency.
3. Easy operation&maintain.
4. Reliable quality and safety guarantee.
5. Light gross weight&convenient transportation.
