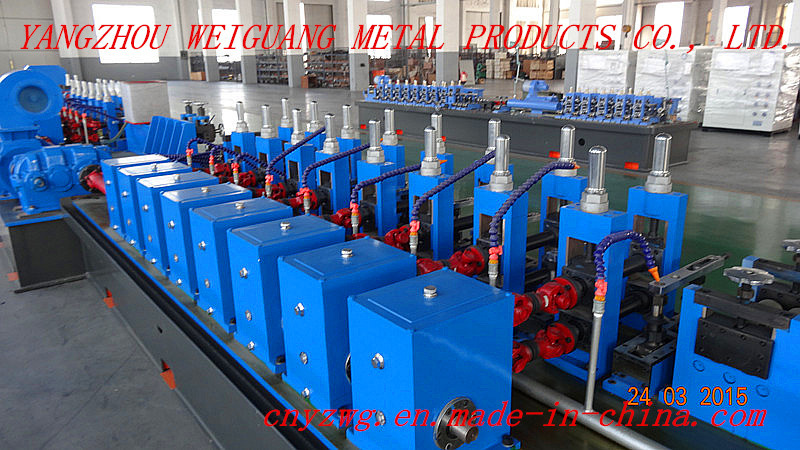

Wg32 Pipe Welding Machine

Name: Wg32 Pipe Welding Machine
Brand: China-Manufacturer-Directory.com
SKU: 753497995
Availability: InStock
Rating: 4.9 (37 reviews)

Supplier:	YANGZHOU WEIGUANG METAL PRODUCTS CO., LTD.
Price:	US $ 15000-500000/Piece
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WG32
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia
Pipe O.D:	13mm-63.5mm
Wall Thickness:	0.5-1.8mm
Speed:	90m/Min
Main Motor:	110kw
H.F Welder:	150kw

Product Description

WG32 pipe welding machine

1.pipe O.D(round):13mm-63.5mm(Φ0.5~ Φ2.5inch)
2.Square pipe:10X10mm-50X50mm
3.Wall thickness:0.5-1.8mm
4.length:4-12m
5.Speed:90m/min
6.Main motor:110Kw
7.H.F welder:150Kw

Craft Flow:
uncoiling→shearing and butt welding→material accumulating→flattening→forming system→high frequency induction welding machine→inside and outside burr removing frame→water cooling system→sizing system→leveling system→speed testing→Turkish frame→saw cutting→running out table

Main components:

1.	Uncoiler
2.	Accumulator
3.	Shearing and butt welding machine
4.	Forming machine
5.	Roller System of Forming
6.	Seam Guide
7.	High Frequency Induction Welding Machine
8.	Roller System for Moving
9.	Burr Removing Frame(Inside and outside)
10.	Water cooling system
11.	Sizing machine
12.	Roller System of Leveling
13.	Speed Testing Wheel
14.	Turkish Frame
15.	Auto flying saw controlled by Computer
16.	Run-out table
17.	Electric control Equipment18
18	High frequency welding machine

Basic necessaries for the Buyer

Steel strips	material	Low-carbon steel, low alloy steel:,σs≤345mpa,σb≤610mpa
	I.D	Φ350~Φ450mm
	O.D	Φ600~1000mm
	Width	40~200mm
	Thickness	0.5-1.8mm
	Maximum.weight	≤1000KGS

necessary accessories prepared the Buyer :

1	Workshop,Foundation construction
2	electric appliance work,civil engineering and necessary materials.
3	Electric connection wires and cables ,pipes(including connectors) from Power supply,air supply,water supply and hydraulic station to each equipment(control table,button station) of the production line
4	Auxiliary machine :fer example lifting equipment,air compressor,air storage tank,water pump,high-pressure pumps for pipe welding machine cooling,cooling water pools for pipe-welding machine and high frequency electric equipment, volume 35m3with water pipe, water pressure meter and valve
5	Auxiliary parts and low value consumable items :for example:steel strip,welding strip,blades,Lubricating oil, cycle oil, gear box oil test run material, magnetic rod, bearing etc.

Descriptions:

Packaging	Sea worthy packing, the mechanical parts are in nude pack, and the electrical arts and the spare parts are simply packed
Loading Port	Shanghai
Containers.No	Roughly estimated about each 6no of 40GP
Type of payments	T/T L/C
Lead Time	90 days after deposit for pipe making machine made in China
We are make the products according to the customers..

Item	Pipe O.D (Round)	Square Pipe	Wall Thickness	Max. Speed	Main Motor	H.F. Welder
WG-16	Φ0.3~ Φ1.0inch (Φ8mm~Φ25mm)	7×7mm 20×20mm	0.3 ~ 1.2mm	100m/Min	22Kw	60Kw
WG-25	Φ0.3~ Φ1.2inch (Φ8mm~Φ32mm)	7×7mm 25×25mm	0.3 ~ 1.5mm	90m/Min	37Kw	100Kw
WG-28	Φ0.5~ Φ2.0inch (Φ13mm~Φ50mm)	10×10mm 40×40mm	0.5 ~ 1.8mm	90m/Min	75Kw	100Kw
WG-32	Φ0.5~ Φ2.5inch (Φ13mm~Φ63.5mm)	10×10mm 50×50mm	0.5 ~ 1.8mm	90m/Min	110Kw	150Kw
WG-50	Φ0.8~ Φ3.0inch (Φ20mm~Φ76mm)	16×16mm 60×60mm	0.7 ~ 3.0mm	80m/Min	132Kw	200Kw
WG-60	Φ1.2~ Φ4.0inch (Φ32mm~Φ102mm)	25×25mm 80×80mm	1.0~ 3.5mm	70m/Min	160Kw	200Kw
WG-76	Φ1.0~ Φ5.0inch (Φ25mm~Φ127mm)	20×20mm 100×100mm	1.0~ 3.5mm	70m/Min	185Kw	200Kw
WG114	Φ1.6~ Φ5.0inch (Φ40mm~Φ130mm)	35×35mm 100×100mm	1.5~ 5.0mm	60m/Min	160Kwx2	400Kw
WG155	Φ2.0~ Φ6.0inch (Φ50mm~Φ155mm)	40×40mm 120×120mm	1.5~ 5.0mm	60m/Min	160Kwx2	400Kw
WG165	Φ2.0~ Φ7.6inch (Φ50mm~Φ195mm)	40×40mm 150×150mm	2.0~ 6.0mm	45m/Min	200Kwx2	500Kw
WG219	Φ3.5~ Φ8.60nch (Φ89mm~Φ219mm)	70×70mm 170×170mm	4.0~ 8.0mm	40m/Min	200Kwx2	600Kw
WG273	Φ4.0~ Φ10.7nch (Φ100mm~Φ273mm)	80×80mm 215×215mm	4.0~ 12mm	25m/Min	320Kwx2	800Kw
Remark:we have own design teams,we can design the production line as customers's request

YANGZHOU WEIGUANG METAL PRODUCTS Co., Ltd. is a specialized manufacturer of various kinds of machinery, covering middle and high grade welded pipe making machines, precise stainless steel equipment, a series of machines for refrigeration pipes of refrigerators and ice chests (such as 8mm precise pipe machine, drawing line, annealing line, and plating line), and composite pipe making machines, as well as cold-bend steel equipment in various specifications. Our company possesses two production plants in the east and west region respectively, covering an area of over 35, 000 square meters and over 10, 000 square meters of the standard building area. We also have staff members of more than 300, among whom 5 are with intermediate and senior technical titles, and 10 are with basic technical titles.

Excellent production conditions, well-trained and experienced team members, and first-class facilities provide our company with full assurance to make various kinds of high-grade machinery to meet the increasing requirements of the market. Our company specializes in the manufacture of welded pipes with diameters ranging from 16mm to 165mm. Our company has precision equipment for welded pipes (Model No. WG16, WG20, WG32, WG50, WG76, WG114, and WG165) as well as equipment for argon-arc welded stainless steel, cold-bended shaped steel, and cold-rolled strip steel. Our products enjoy a good reputation from customers home and abroad.

Our company will always work hard to meet customers' requirements with products of high quality and sophisticated technology and all-around services. Mr. Wang Guanglin, our board chairman, welcomes customers from all over the world to visit us for business negotiation.
