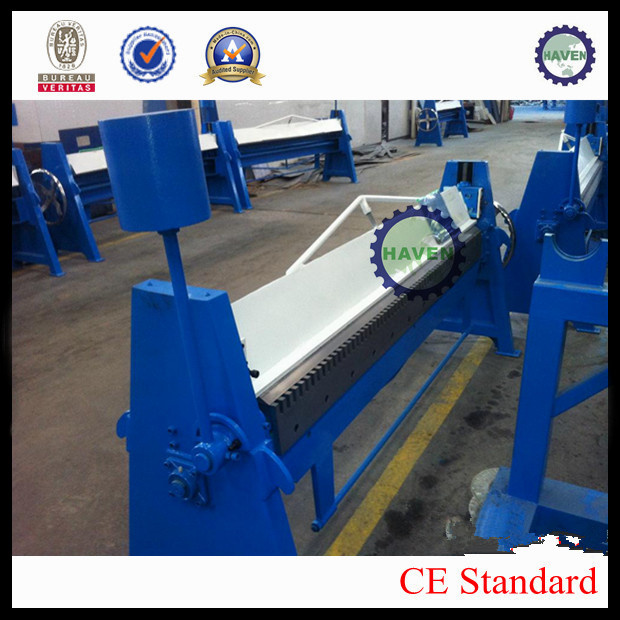

Wh06-1.0X915A Series Hand Folding Machine
Product Specifications
| Prod Model: |
WH06-1.0x915A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
Manual |
| Automation: |
Manual |
| Type For Fold-bending Machine: |
Manual Fold-bend Machine |
| Application: |
Apparel |
| Type For Cutting Machine: |
Mechanical Type |
| Type: |
Mechanical Shearing Machine |
Product Description
Main functions:
Incorporates all the outstanding features of other popular hand press brake;
Both upper and lower movements can be adjusted;
Process workpiece according to the customer's requirement;
Folds sheets into a box/pan configuration;
|
Model |
Capacity |
N.W./G.W.(kgs) |
Packing size (cm) |
|
Width(mm) |
Thickness(mm) |
Angle |
|
WH06-1.0x915A |
915(36") |
1.0 |
0-135° |
70/80 |
117x35x44 |
|
WH06-1.2x1010 |
1010(40") |
1.2 |
0-150° |
118/150 |
135x82x50 |
|
WH06-1.5x1050 |
1050(40") |
1.5 |
0-150° |
190/260 |
162x90x115 |
|
WH06-1.5x1220 |
1220(48") |
1.5 |
0-135° |
140/170 |
163x48x68 |
|
WH06-2.5x1220 |
1220(48") |
2.5 |
0-135° |
580/640 |
175x77x90 |
|
WH06-1.2x1300 |
1300(50") |
1.2 |
0-150° |
138/171 |
160x82x56 |
|
WH06-1.5x1500 |
1500(60") |
1.5 |
0-135° |
480/580 |
200x76x120 |
|
WH06-1.2x2000 |
2000(80") |
1.2 |
0-135° |
625/735 |
250x76x120 |
|
WH06-1.5x2540 |
2540(100") |
1.5 |
0-135° |
810/960 |
350x77x129 |
|
WH06-2.0x2040 |
2040(80") |
2.0 |
0-135° |
800/940 |
250x77x99 |
|
WH06-2.0x2540 |
2540(100") |
2.0 |
0-135° |
850/1010 |
350x77x99 |
|
WH06-2.5x2040 |
2040(80") |
2.5 |
0-135° |
870/1030 |
300x77x99 |
|
WH06-2.5x2540 |
2540(100") |
2.5 |
0-135° |
890/1060 |
350x77x129 |
|
WH06-1.5X3050 |
3050(120") |
2.0 |
0-135° |
1300/1500 |
350X77X110 |
We, Shaanxi Haven Equipment Co., Ltd, is consisted with 2 factories and 1 international trading company, so we can export our products directly at competitive price. To run our business conveniently, we set up our 2 factories in Nantong Industry Zone which is located in the most developed economic area in China and is nearby the Shanghai Sea Port, that will be much helpful to low our export cost.
With experienced engineers and worker, we produce high quality machines and supply good after sale service. In the past years, we are specialized in import and export of machinery and equipment such as machine tools, vehicles maintenance equipments, motors, bearings, hand tools, power tools and industrial materials. Our business scope also includes import and export of technology, contracting overseas projects and engineer training services.
Our products have been exported to more than 30 countries or regions in the world with high quality, We commit ourselves to cooperating with importers and exporters all over the world. We are looking forward to your enquiries and collaboration. Our technicians will assure you of appropriate equipment with reasonable prices and best pre-sale and after-sale services.
Our Business Scope Include: Turning Machines (Lathe), Drilling Machines, Drilling And Milling Machines, Boring Machines, Milling Machines, Machining Centers, Grinding Machines, Tool Grinding Machines, Gear Cutting And Finishing Machines, Planning Machines, Shaping Machines, Slotting Machines, Broaching Machines, Sawing Machines, Cut-Off Machines, Screwing And Threading Machines, Honing Machine, Polishing Machines, Shearring Machines, Press Brakes, Bending Machine, Punching Machine, Iron Worker, Presses, Rolling Machine, Notching Machine, Engraving Machines, Electric Discharging Machine (EDM), etc.
Our target is: High quality, efficient service, reliable honesty.
Management System Certification: ISO 9001,ISO 9000
International Commercial Terms: FOB, CFR, CIF
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: one monthOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 11~20 People
Export Year: 2003-09-09
Export Percentage: >90%
Main Markets: South America, Eastern Europe, Southeast Asia, Africa, Mid East
Factory Address: No. 31Nan Er Huan East Road, Xi'An, China
R&D Capacity: Own Brand(HAVEN)
No. of R&D Staff: 11-20 People
No. of Production Lines: 3
Annual Output Value: US$10 Million - US$50 Million
