Shenzhen Huiqitong Xing Electronic Co., Ltd. >> What Is DVR=Digital Video Recorde

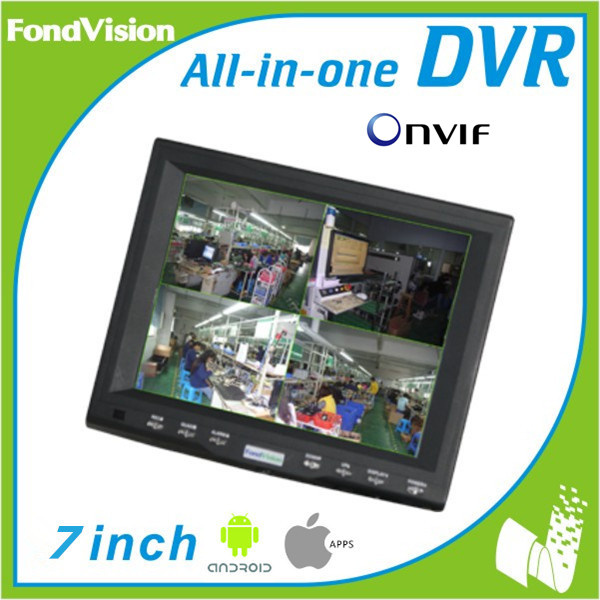

What Is DVR=Digital Video Recorde

Name: What Is DVR=Digital Video Recorde
Brand: China-Manufacturer-Directory.com
SKU: 726242585
Availability: InStock
Rating: 4.9 (134 reviews)

Supplier:	Shenzhen Huiqitong Xing Electronic Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FV07D04AT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Size:	7inch/8inch
Camera:	4PCS/Sets
Main Processor:	1g Arm Handle
Video Stardand:	PAL/NTSC
Video Code:	H.264
Package:	Carton
Weight:	3.6kg
Feature:	Vandal-proof
Operating System:	Linux
Technology:	Infrared
Sensor:	CMOS
Style:	Bullet Camera
Horizontal Resolution:	600tvl
Type:	CCTV Camera

Product Description

Advantages
Low power consumption, low-carbon environmental protection, whole machine power consumption is lower than 4W, can save a few hundred electric charge.
It can work 2hoursr with hard disk video when powered off, it can work 5hours with SD card video when powered off.
Touch screen operation, more convenient and quick
Adopt the H. 264 high compression technology, compression rate is higher, the quality is better
Four D1 are coding and decoding at the same time, all in real-time
Built-in 2 w speakers and microphones, can intercom directly.
Support the built-in TF card, you can customize 8 G, 16 G version, to implement low cost security
USB OTG function, standalone DVR can become a mobile hard disk
Ultra-thin design, easy to hang on wall
Can fixed time switch, help you to save money.
Ali cloud and amazon's cloud services at the same time, the PC and mobile phone clients support P2P mode.
DVR state consolidation in the mobile phone messages, you may know in time if there are situations.

	model
system	main processor	1G ARM handle
	operate system	embedded Linux operation system
	system resources	4 routes D1 real time video,at the same time,4routes real time playback
interface	operation interface	support mouse/touch/remote keypad operation
interface	image display	1/4 image
video	video standard	PAL/NTSC
	video code	H.264(Hight profile)
	surveillance quality	monitor:D1;VGA,HDMI
	playback quality	4routes real time playback
	motion detection	set up multistage sensitivity every image
audio	audio compression	G.711a
audio	language intercom	support
video and playback	video mode	manual operation>alarm>motion detection>fixed time
video and playback	video query	time/calendar/fact/ channel retrieval
storage and back-up	video save	local hard disk,network
storage and back-up	back-up mode	network backup,USB mobile HD
port	video input	4 routes D01 switch in
	video output	1route CVBS,1route HDMI HDV output
	audio input	built-in MIC
	audio output port	built-in 8R 2W horn
	alarm input	Two route
	alarm output	ONE route
	network port	RJ45 10M/100M application to Ethernet
	PTZ control	1route RS485 port,support various PTZ protocol
	USB port	1 main USB2.0,1 OTG USB
	hard disk port	1 route SATA port
other	power supply	5.5V/2A
	consumption	<5W(including hard disk)
	operating temperature	0-55C
IP Camera parameters
Image sensor	Sensor	1/3''Low illumination progressive scan CMOS
	display resolution	1280*720pixel(100pixel)
	Camera Lens	3.6mm
	minimum illumination	0.1lux at F2.0
Audio	input/output	Linear input/output,can realize two-way voice intercom
Audio	comprssion way	G.711A
video	Video compression way	H.264 High Profile
	graphics frame rate	1~30fps
	image resolution	1280720,720576,352288,172144NTSC,1280720,720480,352240,172120
	image adjust	adjustable(brightness,contrast,saturation,chroma)
	white balance	Adjustable
	infrared mode	automatic manual
	infrared irradiation distance	30M
network	Ethernet	Ethernet 10/100Mbps RJ-45
	support protocol	HTTP,FTP,TCP/IP,UDP,SMTP,DHCP,PPPoE,DDNS,UPnp,GPRS
	wireless standard	WIFI(IEEE802.11b/g/n)
	Support IP address	Static/dynamic IP address
	P2P	P2P connections,needn't port mapping
alarm	alarm input/output	An alarm input,an alarm output
	alarm detection	motion detecting
	alarm notification	send alarm message to the mobile terminal
hardware interface	Power interface	DC5V/2.0A
hardware interface	audio input/output surface	1audio input socket,1audio output socket
environment	working temperature	0~55 C
environment	working humidity	10~99%(without condensation)
