Product Specifications
| Prod Model: |
918A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Medium-sized Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

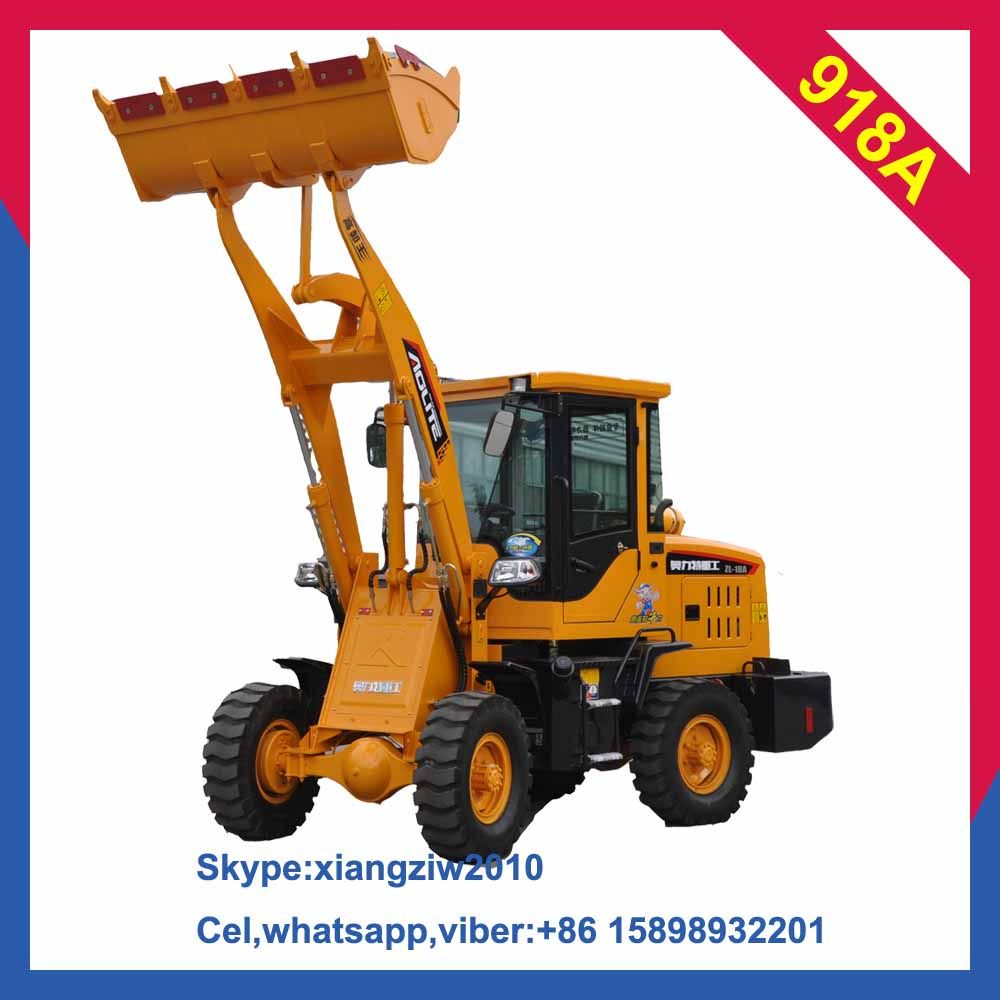

Wheel loader bucket wheel loader front loader
Features:
1. High productivity and low fuel consumption for our wheel loader.
2. Our wheel loader is applied with Isuzu(Japan) axle, it is high quality and good performance for loader.
3. Drive model:4WD.
4. With auto low mode, it can provide smooth gear shifting at low engine speeds suitable for general excavting and loading while offering reduced fuel consumption. Maual mode, the transmission is fixed to the gear speed and selected with the gear shift lever. Auto medium and high mode, are suitable for different work situation.
5. Adopted with cylinder buffer rings, it is installed to the head-side of the all-hydraulic cylinders to lower the load on the rod seals, prolong cylinder life by 30% and maximize overall reliability.
6. Bucket, edge steel with extra hardened and toughened wear plates, with longer operating life.
Specifications for wheel loader 918A:
918A
Wheel Loader |
Overall Dimension |
5550*1810*2750mm |
Rated Load |
1000kg |
Operate Weight |
2910kg |
Arm Thickness |
22mm |
Bucket Width |
1700mm |
Bucket Capacity |
0.5m³ |
Max. Dumping Height |
2800mm |
Battery |
80A |
Engine |
Standard Configuration |
Yunnei 490 |
Rated Power |
39kw(53.04hp) |
Four-Cylinder |
Type |
Normal |
Advanced Configuration |
Quanchai 490 |
Rated Power |
38kw(51.68hp) |
Transmission
System |
Gearbox Model |
3+2 Mechanical |
Axle |
Isuzu Axle |
Drive Model |
4WD |
Brake Model |
Oil Brake |
Tyre Size |
Size |
15/90-16 |
Model |
Road Tyre |
Package |
1 set in 1*20GP container,3 sets in 1*40 HQ Container |
MOQ |
1 Set |
Optional
Configuration |
Quick Hitch/Quick-Change Bucket
Quick-Change Pallet Fork/Quick-Change Screening Bucket
Quick-Change Grass Fork/Quick-Change Wood Fork
Quick-Change Snow Blow / Quick-Change Snow Bucket
Quick-Change 'V' Snow Plow/Quick-Change Sweeper
4 in 1 Bucket/2 in 1 Bucket
Air Condition/Rear View Camera |
Color |
Yellow, Red,Camouflage.... |
Certification |
CE Certification
ROPS/FOPS Test Report
CO(Certification of Origin)
Commodity Inspection
|
Other models:
We can supply various wheel loader models, or you can tell us your requires, we also can accept.
Qingzhou Olei Heavy Industry Co. Ltd, is an integrated enterprise. We produce road construction machinery, environmental protection machinery and industrial automation equipment. Recent years, we import advanced technology, and do research and development of high quality waste incineration fly ash handling equipment, sludge treatment equipment, stabilized soil mixing plant, concrete mixing plants, concrete mixing station, slaked lime production equipment.
We have strict quality management system from the design, manufacture, sales, testing and after-sale service. Try to supply the best quality and best service. Now we already got good reputation from the quality and technology from users.
Our main products are ash stabilization/solidification treatment equipment, sludge solidification/stabilization treatment equipment, sludge drying equipment, sludge synthetic fuel facilities, WCB series stabilized soil mixing station, HZS series concrete mixing station, JS series mixers, PLD series batching machine, LSY series screw conveyor and lime digestion equipment and other products.
We will try our best to service for you and build win-win business with you.
