Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wheel Excavator |
| Type2: |
Front Loader |
Product Description
The appearance is compact and nice. Good cost performance will help you create more fortune.
1. Hydraulic steering system, convenient and easy steering
2. Frame style chassis structure, simple in structure and easy in maintenance
3. Air conditioning and heating system provide better operation environment
4. Front and rear frame use long span connecting structure for reduce the stress in hitch pin
5. Anti-abrasion integral cutting edge with teeth and adapters, prolong the life of bucket.
6. Long wheelbase and centrally symmetrical structure make the front and rear tracks superposed on each other for extending the life of tire.
7. Optional implements: High dump, Coal bucket, Log fork, Quick disconnect
|

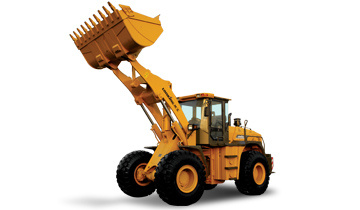

Overall data of wheel loader LG856B |
|
Rated loading capacity |
kg |
5000 |
|
Bucket Capacity |
m³ |
2.7-3.0 |
|
Wheel base |
mm |
3230 |
|
Tread |
mm |
2240 |
|
Dumping height |
mm |
3103 |
|
Dumping reach |
mm |
1210 |
|
Opreating weight |
kg |
17000 |
|
Total cycling time |
s |
11.0 |
|
Steering angle |
º |
± 35 |
|
Overall dimensions |
|
Overall length |
mm |
8050 |
|
Overall width |
mm |
3000 |
|
Overall hight |
mm |
3400 |
|
Engine |
|
Engine model |
|
WD10G220E11 |
|
Rated power/speed |
kw/rpm |
162/2200 |
|
Rated torque/speed |
N· m/rpm |
860/1400-1500 |
|
Calibration of fuel consumption rate |
g/kw· h |
225± 5 |
|
Total displacement |
L |
9.726 |
|
Travel speed |
|
Forward-gear(F/R) |
km/h |
0-10.2 |
|
Forward-gear(F/R) |
km/h |
0-35 |
|
Reverse-gear(F/R) |
km/h |
0-14 |
|
Transmission type |
|
Planetary hydraulic shift |
|
Drive axle and tires |
|
Main reducer |
|
Spiral bevel, 1-stage Reduction |
|
Final reducer |
|
Spur gear cylindrical geat planetary drive |
|
tire |
|
23.5-25-16PR |
|
Working hydraulic system |
|
Working pump |
|
P7600-F100N0367.6G |
|
Displacement |
mL/r |
100 |
|
System working pressure |
mpa |
16 |
Shanghai Longji Construction Machinery Co., Ltd.Which started in the year of 2002, now has achieved the advanced selling level of Shanghai.Our Longji Co., Ltd are the agent of both domestic and international famous brand products, such as:Wheel loader, vibratory roller of China XCMG series;The grab of ShanTui Machinery series;The special automobile of Anhui Xingma Co., Ltd and the kinds of heavy trucks of Anhui Hualing Co., Ltd.
At present, our company has started many branch offices and estanblished Shanghai Hualing Engineering Machinery Co., Ltd, which professional deals in the engineering machinery fittings, so we have successfully estanblished a whole piece of start-to-finish line service.
We will strengthen the good cooperations with the manufacturers, and supply clients with our highest quality, the most competive price and the best service as the sincerely friends!Let us hands in hands to start a bright cooperation future and wish we can be the aircraft carrier in Shanghai engineering machinery selling!
