Product Specifications
| Prod Model: |
LQ928 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wheel Loader: |
Wheel Loader |
| Type: |
Medium-sized Loader |
| Certification: |
CE |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Load And Unload Method: |
Front Discharge |
Product Description

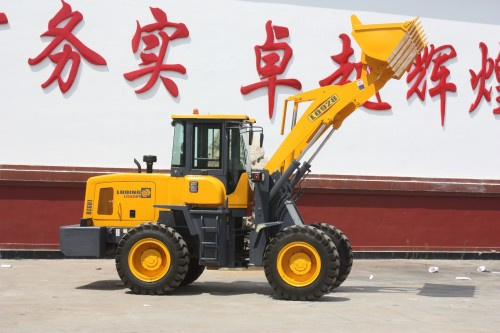

Wheel loader---LQ928
1. Originated from Komatsu technology, high reliability and productivity
2. Torque converter and counter-shaft transmission gearbox-Komatsu technology, assembled separately, higher reliability and
3. Easier maintenances
4. Driving Axle-Meritor technology
5. Fully hydraulic steering system, power shift transmission, easier operation
6. Bucket can be leveled automatically, optimized working device, higher productivity
7. Comfortable operation environment, new design cabin, Grammar seat, air-conditioner at option
8. Various working devices of attachment are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork etc, to meet different needs.
| Rated capacity | 1.5m³ |
| Rated weight | 2800kg |
| Transportation | 6150× 1970× 3000mm |
| Wheel base | 2470mm |
| Thread | 1380mm |
| Max. breakout force | 70KN |
| Max. dumping height | 3200/3500mm |
| Dump distance | 1084mm |
| Total time | 11.3s |
| Operating weight | 6000kg |
Engine
| Model | YTO YT4B2Z-24 |
| Pattern | Vertical, water-cooled, 4-stroke, direct injection |
| Rated power/speed | 74.9kw/2400rpm |
| Max. torque | 261.7N. m |
| Normal fuel consumption | 242g/kw. h |
| Total displacement | 4.4L |
| Fuel | 0# or -10# diesel oil |
Torque converter and transmission system
| Model of torque converter | YJ280 |
| Pattern | 3-element single stage |
| Transmission type | Full-power shift, countershaft type |
| Number of gear | 4 forward, 2 reverse |
| Max. travel speed | 24km/h |
| Axle | HUALU |
| Main reducer pattern | Arc taper gear, model ration of first grade |
| Pattern of wheel side moderation | Planet gear moderation of single |
Tire
Steering system
| Pattern | Articulated and hydraulic steering |
| Min. turning radius(outside of bucket) | 4500mm |
| Max. turning angle | 35° ± 1 |
Implement hydraulic system
| Implement pump | CBF25 |
| Displacement | 25ml/r |
| System working pressure | 16MPa |
| Distribution device model | DF20.2C |
Brake system
| Brake type | Air assisted oil disc on four wheel |
| Parking brake type | Soft axle control, outside bunch drum type |
