Product Specifications
| Prod Model: |
SAM836 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Type: |
Medium-sized Loader |
| Certification: |
ISO9001: 2000 |
Product Description

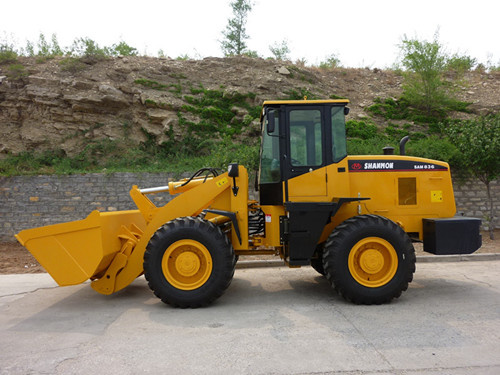

Main Characters of Wheel Loader SAM836:
1. To match the re-optimization engine with strong power, strengthened the good starting performance, and the operating efficiency and performance is greatly improved.
2. Advanced cooling system, and to withstand 40° High temperature, can also play the highest performance in a high dust environment.
3. Full hydraulic steering, the hydraulic valve designed and produced by international advanced technology with stable and reliable quality to promote the hydraulic system performance.
4. Using ISR hoses with high quality, strength and reliability is greatly improved.
5. Fixed axle gearbox, power shift, featured by simple structure, high transmission efficiency, long life, easy maintenance, more gear, and high speed, is suitable for heavy load operating conditions.
6. The cab fully adopting tempered glass, driving comfortably with wide view, bigger counterweight, bigger load capacity.
7. New cooling system design, can meet minus 20-43 Degrees Celsius environment temperature.
The Technical Parameters of Wheel Loader SM836:
Rated loading 3000kg
Overall weight 9600kg
Rated bucket capacity 1.7-2.5m3`
Maximum tractive force 97KN
Maximum breakout force 127KN
Maximum dump height 3100mm
Maximum dump reach 1006mm
Overall dimension(L× W× H) 6890× 2430× 3070 mm
Engine model Yuchai YC6B125-T20
Rated power 92kw
Shandong Weimeng Engineering Machinery Co., Ltd, is located in Qingzhou city of Shandong province, It has 200, 000 squre meters factory, more than 200 technical engineers. Weimeng has many developed processing equipment, such as, Laser cutting machine, CNC flame cutting machine, Large CNC bending machine, which guarantees the reliable and strict quality. Large-scale assembly line, developed painting line and international-class test sit, helps Weimeng becomes one of biggest backhoe loader manufacturers inChina.
Weimeng has convenient transportation advantage, 100 kms away from Jinan international airport, 130 kms away formQingdaoport, which is the largest container port ofChina. Weimeng is a large comprehensive enterprise specializing in research\production and sales for construction machinery. It has three major categories of products including wheel loader (SMA826, ZL16F, ZL20F, SAM820-III, ZL30F, SAM836-III, ZL50G, SAM856-III, SAM866-III and SAM868)\backhoe loader(WZ30-25, WZY30-25 ) and forklift truck (CPCD20, CPCD25, CPCD30, CPCD35, CPCDC40, CPCD50, CPQD20, CPQD25, CPQD30, CPQD35, CPQDC40, CPQD50 forklift truck), which has already formed more than fifty varieties and has a yearly production capacity of ten thousand units. The products are popular at home and have exported to many regions and counties, such as Africa\America\Middle East and Russia.
The Weimeng company has powerful technical and manufacturing strength, which has introduced\digested and absorbed lots of domestic and foreign advanced technology, such as Cummins, ZF transmission and SEM technology. It has laser cutting machines\CNC flame cutting machines as well as advanced bending\stamping\welding and processing equipments. It also has a vehicle assembly line and high-class test sit. Certification includess: ISO9001 and CE.
The company has passed the certification of international Quality System ISO9001, continuously implemented the Lean Production, 6Sigma management and adopted ERP management method. The leading products have attained CE.
We will take the faith of creating value for customers, providing better products and more sincere service to customers and building a bright future.
