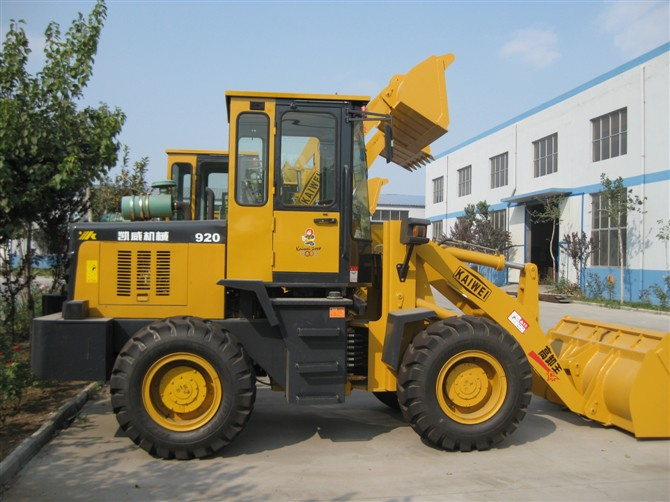

Wheel Loader with Weichai4rnsg3 Engine (ZL20A)
Product Specifications
| Prod Model: |
ZL20A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Weichai4rnsg3 |
| Rated Power(Kw): |
60 |
| Standard Tyre: |
16/70-20 |
| Walking Mode: |
Wheeled |
| Type: |
Medium-sized Loader |
| Load And Unload Method: |
Front Discharge |
| Certification: |
CE |
| Condition: |
New |
Product Description
1. All parts are made of high quality materials.
2. Streamlined design, elegant appearance.
3. Optimized by CAD, the bucket can be leveled automatically at high position; The bucket cylinder can only be tipped in one direction; "Z"type connecting rod, tremendous shoveling and digging force.
4. Split type engine and gearbox, with reliable performance.
5. The dynamic system can be equipped with famous engine from home or abroad, can meet the actual requirements of customers.
6. Fully hydraulic steering system, reliable and durable, easy and convenient operation and maintenance.
7. Deluxe cab with wide field of vision, adjustable seat comfort and relieve the driver.
8. There are various of options for customers' selection.
|
Specification |
overall weight(kg) |
5200 |
|
L× W× H(mm) |
5800*2250*2850 |
|
Rated bucket capacity(m3) |
1.2 |
|
Rated load(kg) |
2000 |
|
dump height (mm) |
3500 |
|
Bucket indicator |
YES |
|
Engine |
Brand and modle |
weichai4RNSG3 |
|
Type |
Four strokes, Water cooling, Inline, injecting combustion chamber
|
|
Rated power(kw) |
60 |
|
Rated speed(r/min) |
2400 |
|
Transmission system |
Model of torque converter |
YJ280 |
|
Type |
single-phase single-stage radial-inward turbine triplex |
|
Gearbox type |
Fixed-spindle power shift |
|
Gear shift |
2 gears ahead, 2 gear astern |
|
Hydraulic system |
Working pressure(Mpa) |
16 |
|
Capacity of tank(L) |
80 |
|
Steering system |
Type |
Articulated hydraulic steering |
|
Min turning radius(mm) |
4500 |
|
Brake system |
Brake type |
Oil brake(Vacuum booster) |
|
Tire |
Standard tire |
16/70-20 |
Qingzhou Shiji Kaiwei Construction Machinery Co., Ltd located in Qingzhou, Shandong Province, Which province is the biggest bases of heavy equipment in China. Near one of the most biggest seaport Qingdao, with convenient transportation, and that provides a unique condition for the development of enterprise.
The Company's strong economic strength, strong R & D capabilities, developed through the introduction of technology, equipment, development 908.910.912.915.916.918.920.926.928.930.932.936 series loaders, and get CE certification. Electric-hydraulic gearbox, easier operation, high working efficiency. Pilot controlled can be choose, fully hydraulic steering system, electric -hydraulic transmission, easier operation. Bucket can be leveled automatically, Optimized working device, higher productivity. Comfortable operation environment, new design cabin and Europe cabin can be choose, Air -condition at option.
Kaiwei loader is suitable for narrow space operations with small turning radius, steering flexible. It is hydraulic operation, simple structure, easy operation, good performance, reliable quality, low price, products sold at China and abroad, has been all over the world agency and customer high praised. The products are widely used in infrastructure projects, road construction, brick furnace, sand plant, coal processing industry, stones material factory, cement precast factory, farms, ports, railway stations and agricultural engineering etc. And it can be customized according to customer needs to produce wood fork\grass fork\tuber fork\ paper fork\ snow shovel, 4-in-1 bucket and multi-function accessories
The company can accept customized, OEM, ODM, etc., to meet customer requirements and strive to exceed customer expectations for the purpose, adhere to the people-oriented, and constantly introduce advanced management mode and modern management means, forge ahead, so that the company's management has always been the most advanced towards the goal.
Kaiwei hospitable people warmly welcome customers at home and abroad to come to our factory to negotiate business. Recruitment for agents from home and abroad!
