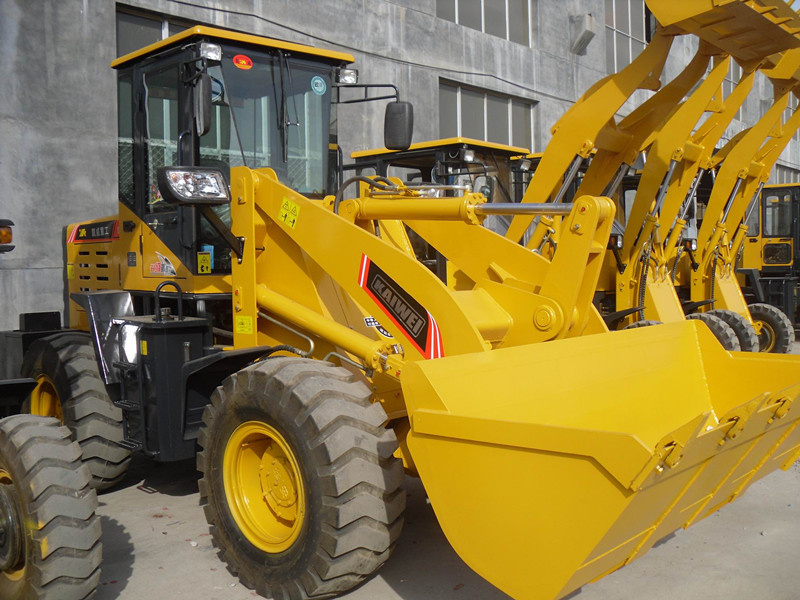

Wheel Loader Zl20 with Cummins Engine
| Price: |
US $ 12000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Western Union |
Zl20 Wheel Loader 2.0ton
Features of Front wheel loader CE ZL 20F:
1. Central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance.
2. Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, trafficability and more traction.
3. Fully enclosed cab with adjustable and suspension seat can provide comfortable driving and wide view;
4. Using 16/70-20 ultra-wide tyres to increase the stability of this mini whole machine and the service life of tyre;
5. Brake system adopts vacuum booster, air over hydraulic caliper disc brake on 4 wheels;
6. This small wheel loader adopts ZL280 integrated torque converter, and the whole machine is fully hydraulic transmission;
7. This compact wheel loader can be optionally equipped with pilot control system to make it easy to operate and increase the hydraulic performance of the whole machine;
|
Specification |
1. overall weight(kg) |
5800 |
|
2. L× W× H(mm) |
5800*2050*2850 |
|
3. Rated bucket capacity(m3) |
1.2 |
|
4. Rated load(kg) |
2000 |
|
5. dump height (mm) |
3500 |
|
6. Bucket indicator |
YES |
|
Engine |
7. Brand and modle |
CUMMINS 4BT3.9-C100,weichai , TYO,xichai ,yuchai engine |
|
8. Type |
Four strokes, Water cooling, Inline, injecting combustion chamber
|
|
9. Rated power(kw) |
75kw |
|
10. Rated speed(r/min) |
2400 |
|
Transmission system |
11. Model of torque converter |
ZL280 integrated torque converter |
|
12. Type |
single-phase single-stage radial-inward turbine triplex |
|
13. Gearbox type |
Fixed-spindle power shift |
|
14. Gear shift |
2 gears ahead, 2 gear astern |
|
Drive Axle |
15. Model of Axle |
ZL20 Hub reduction axle |
|
16. Wheel tread |
1600 mm |
|
17. wheel base |
2440mm |
|
Hydraulic system |
18. Working pressure(Mpa) |
20 |
|
19. Capacity of tank(L) |
93 |
|
Steering system |
20. Type |
Articulated hydraulic steering |
|
21. Min turning radius(mm) |
4500 |
|
Brake system |
22. Brake type |
Oil brake(Vacuum booster) |
|
Tire |
23. Standard tire |
16/70-20 |
| Prod Model: |
ZL20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall Weight(Kg): |
5200 |
| L×w×h(Mm): |
5800*2250*2850 |
| Rated Bucket Capacity(M3): |
1.2 |
| Rated Load(Kg): |
2000 |
| Dump Height (Mm): |
3500/3200 |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Type: |
Small Loader |
| Certification: |
CE |
| Load And Unload Method: |
Front Discharge |
Qingzhou Shiji Kaiwei Construction Machinery Co., Ltd located in Qingzhou, Shandong Province, Which province is the biggest bases of heavy equipment in China. Near one of the most biggest seaport Qingdao, with convenient transportation, and that provides a unique condition for the development of enterprise.
The Company's strong economic strength, strong R & D capabilities, developed through the introduction of technology, equipment, development 908.910.912.915.916.918.920.926.928.930.932.936 series loaders, and get CE certification. Electric-hydraulic gearbox, easier operation, high working efficiency. Pilot controlled can be choose, fully hydraulic steering system, electric -hydraulic transmission, easier operation. Bucket can be leveled automatically, Optimized working device, higher productivity. Comfortable operation environment, new design cabin and Europe cabin can be choose, Air -condition at option.
Kaiwei loader is suitable for narrow space operations with small turning radius, steering flexible. It is hydraulic operation, simple structure, easy operation, good performance, reliable quality, low price, products sold at China and abroad, has been all over the world agency and customer high praised. The products are widely used in infrastructure projects, road construction, brick furnace, sand plant, coal processing industry, stones material factory, cement precast factory, farms, ports, railway stations and agricultural engineering etc. And it can be customized according to customer needs to produce wood fork\grass fork\tuber fork\ paper fork\ snow shovel, 4-in-1 bucket and multi-function accessories
The company can accept customized, OEM, ODM, etc., to meet customer requirements and strive to exceed customer expectations for the purpose, adhere to the people-oriented, and constantly introduce advanced management mode and modern management means, forge ahead, so that the company's management has always been the most advanced towards the goal.
Kaiwei hospitable people warmly welcome customers at home and abroad to come to our factory to negotiate business. Recruitment for agents from home and abroad!
