Product Specifications
| Prod Model: |
WL08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

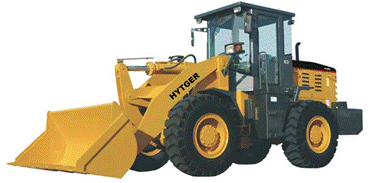

Wheel Loader |
| Type: |
Medium-sized Loader |
| Certification: |
ISO9001: 2000 |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Load And Unload Method: |
Front Discharge |
Product Description
Specifications
Powerful engine;
Modern apprearence and streamline outline with wider visibility;
Load-sensing hydraulic system;
And so on.
| 1 | Model |
| WL08 | WL10 | WL12 | WL15 | WL15B | WL18 |
| 2 | Rated weight | kg | 800 | 1000 | 1200 | 1500 | 1500 | 1800 |
| 3 | Rated capacity | m3 | 0.3 | 0.43 | 0.45 | 0.6 | 0.7 | 1.03 |
| 4 | Operating weight | kg | 2300 | 2300 | 2500 | 3000 | 3000 | 4000 |
| 5 | Model of engine |
| Changchai L24 | Changchai 28M | Changchai 2102 | Xichai 4DW81-37 | Xichai A498BT1 | Weichai ZH102G41 |
| 6 | Rated power | kw | 17 | 20 | 24 | 33 | 47 | 47 |
| 7 | Rated speed | r/min | 2200 | 2200 | 2200 | 2300 | 2550 | 2400 |
| 8 | Dump height | mm | 2900 | 2850 | 2850 | 2850 | 2750 | 3200 |
| 9 | Dunp distance | mm | 790 | 790 | 790 | 790 | 690 | 930 |
| 10 | Tire |
| 750-16 | 8.25-16 | 8.25-16 | 1200-16 | 12-16.5 | 20.5/70-16 |
| 11 | Wheel base | mm | 1750 | 2100 | 2100 | 2100 | 2150 | 2160 |
| 12 | Tread | mm | 1500 | 1440 | 1440 | 1400 | 1400 | 1520 |
| 13 | Total time of lifting, dumping, lowering | s | 13 | 13 | 13 | 13 | 13 | 9 |
| 14 | Max. breakout force | KN | 30 | 36 | 36 | 43 | 43 | 32 |
| 15 | Min. turning radius | mm | 3400 | 3400 | 3400 | 3400 | 4000 | 3500 |
| 16 | (**) Overall dimensions (L*W*H) | mm | 4600×1600×2450 | 4900x1600x2550 | 4900x1600x2550 | 5200×1600×2550 | 4800×1650×2650 | 5800×1730×2800 |
| 1 | Model |
| WL20 | WL28 | WL30 | WL52 | WL56 |
| 2 | Rated weight | kg | 2000 | 2800 | 3000 | 5000 | 5000 |
| 3 | Rated capacity | m3 | 1.3 | 1.3 | 1.7 | 3 | 3 |
| 4 | Operating weight | kg | 5500 | 6000 | 9500 | 16000 | 16000 |
| 5 | Model of engine |
| Weichai R4105G57 | YTR4108G92 | DEUTZ TD226B | STEYR WD12G220E11 | STEYR WD12G220E11 |
| 6 | Rated power | kw | 55 | 60 | 92 | 162 | 162 |
| 7 | Rated speed | r/min | 2200 | 2400 | 2200 | 2200 | 2200 |
| 8 | Dump height | mm | 3200 | 3200 | 3020 | 3098 | 3098 |
| 9 | Dunp distance | mm | 885 | 1084 | 1200 | 1198 | 1198 |
| 10 | Tire |
| 16/70-20 | 16/70-20 | 17.5-25 | 23.5-25 | 23.5-25 |
| 11 | Wheel base | mm | 2250 | 2470 | 2760 | 3200 | 3200 |
| 12 | Tread | mm | 1510 | 1380 | 1800 | 2250 | 2250 |
| 13 | Total time of lifting, dumping, lowering | s | 11.3 | 11.3 | 11 | 11.3 | 11.48 |
| 14 | Max. breakout force | KN | 48.87 | 70 | 138 | 172.3 | 172.3 |
| 15 | Min. turning radius | mm | 4500 | 4500 | 5700 | 7268 | 7268 |
| 16 | (**) Overall dimensions (L*W*H) | mm | 5910×1910×2810 | 6150×1970×3000 | 7050×2430×3120 | 7836×3010×3300 | 7934×3060×3483 |
Since the foundation of HYTGER, we have been strived to offer you high-class material handling solution and high-class service. HYTGER Group has been specialized in manufacturing and selling forklift trucks, stackers, pallet trucks, loader trucks, container cranes, tire presses, dock ramps, aerial work platforms, other hydraulic equipments and their parts. After many years successful development, HYTGER Group has grown up to be a strong global supplier in material handling equipments and construction machinery field.
After great and constant efforts in recent years, we not only have our own production bases and international trade company, and have set up a strict quality assurance system, built up a strong management framework and established a perfect after-sale service system. HYTGER has passed the ISO9001, ISO14001 and CE certifications, etc. In addition, our products have passed the inspection of global market and gain market recognition of the global customers!
With professional R&D team, well-trained workers and strict quality control system, we are able to supply reliable and high-quality products to our esteemed customers all around the world with guaranteed delivery time. The annual output reaches to 3000 units and our products are popular in over 50 countries and regions.
HYTGER will continue to follow the corporate spirit "Innovation, Aggressiveness and Integrity" in future. Meantime, we will strive to build the brand "HYTGER" with the standard of globalization, specialization and environment protection and offer high-class products and service to the global customers!
