Product Specifications
| Prod Model: |
steel structure |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection: |
High Strength Bolt |
| Derusting: |
Ball Blast |
| Window: |
PVC or Aluminium Alloy Window |
| Materials: |
Q235B or Q345 |
| Door: |
Sliding Door or Automatic Rolling Door |
| Cutting: |
CNC Gas Cutting Machine |
| Painting: |
Painting Automatic Powder Coating or Painting |
| Design: |
by Customized |
| Size: |
by Customized |
| Color: |
Gray,Red,Blue,Green |
| Material: |
Steel Structure |
| Usage: |
Prefabricated Buildings |
| Certification: |
SGS |
| Customized: |
Customized |
Product Description
| No. | Sort | Name | Specification |
| 1 | Specification | length | designed as per customers' requirements. |
| 2 | Width | designed as per customers' requirements. |
| 3 | Ridge height | designed as per customers' requirements. |
| 4 | Inside height | designed as per customers' requirements. |
| 5 | Standard accessory | Wall Panel | 75mm EPS sandwich panel, 0.42mm color steel sheet and 12kg/m3 polystyrene foam (EPS sandwich panel) density: 12kg/m3 inside. Heat Insulated coefficient is 0.041w/m. k. Heat transfer coefficient is 0.663w/. k. |
| 6 | Roof Panel | 50mm EPS sandwich panel, 0.35mm /0.42mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m. k. Heat transfer coefficient is 0.553w/. k. |
| 7 | Door(D-1) | Steel security door with dimensions of 740/840x1950mm, furnished with a cylinder lock with 3keys. Doorframe is made of Stainless steel, 50mm thickness |
| 8 | Door(D-2) | EPS sandwich panel door with dimensions of 750x2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. |
| 9 | Window(W-1) | Color steel sliding window with dimension of 1100mmx800mm, two bay sliding, |
| 10 | Window(W-2) | Color steel sliding window with dimension of 1100mmx400mm, two bay sliding, |
| 13 | Channel beams | material: Q235. Painted |
| 14 | Column | material: Q235, Galvanized |
| 15 | Roof beam | The trusses are composed of Q235 steel, Galvanized |
| 16 | Compressed tank | material: Q235. Galvanized |
| 17 | Option | Elevated ceiling | Ceiling of mineral wool acoustic panel, or
Ceiling of aluminium panel |
| 18 | Elevated floor | Steel structure with 14mm plywood |
| 19 | Decorative floor | PVC, laminated or ceramic tile |
| 20 | Drainage system | Provided plan, design and construction |
| 21 | Electric system | Provided plan, design and construction |
| 22 | Technical parameter | Bearing load | 50kg/m 2 |
| 23 | Wind pressure: | 0.5KN/M2 |
| 24 | Fire proof | B2 grade |
| 25 | Resistant temperature | -15----50 |
| 26 | The resistant earthquake grade | 7 degreee |

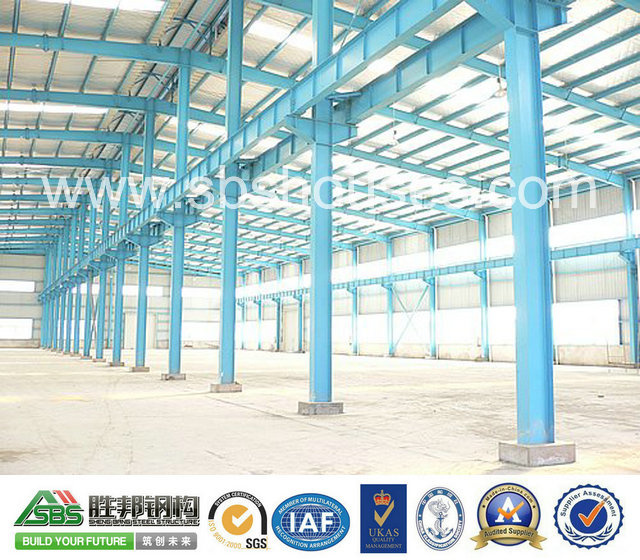

STEEL STRUCTURE WAREHOUSE
Shengbang's steel structure warehouse features of high fire resistance, strong corrosion resistance. Industry steel structure warehouse usually made of steel beams, steel columns, steel trusses and other components of the composition; each component using welds, bolts or rivets to connect. The usage scale includes large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and modular steel structure garage.
GARAGE
When it comes to building your own garage, do not settle for just a few years after the deterioration of rickety wooden structures or leave you constantly leaking. Shengbang Steel Structure Co., Ltd. produce the most durable and reliable prefabricated steel garage provides secure storage for your car, tools and landscaping equipment. Our building is very affordable, because they are designed to do its own builders, and is equipped with an easy to follow instructions and drawings completely prefabricated garage kit.
Company Profile:
Foshan Shengbang Steel Structure Co., Ltd.Possesses professional large-scale steel structure production equipments and the automatic spraying production line, so we can satisfy the different customers demand.We takes "build your future" as mission and takes company growth as premise.The company has trained many high quality marketing personnel, professional technician and construction workers.We take the customers' demand as the guidances, then provide reasonable, scientific and effective solution for customers.We regard practical growth, innovation and group solidarity as our company spirit, so that we can offer all-round service to customers.
Website:HTTP://www.Sbshouses.COM
HTTP://chinaprefabhouse.En.Made-in-China.Com
FOSHAN SHENGBANG STEEL STRUCTURE Co., Ltd
Add:Pingtang Industrial Park, Shipeng Village, Shishan Town, Nanhai District, Foshan, Guangdong Province, China
Tel:0086-757-63323396 Fax:0086-757-81196682
Foshan Shengbang Steel Structure Co., Ltd. (for short "SBS") is a fast developing enterprises integrating marketing, design, development, manufacturing and construction. It has been approved and certified by international ISO9001: 2008 quality management system, and SGS factory system. We have trained many highly qualified marketing and technical personnel as well on-site construction team during recent years' fast development. Being customer demand-oriented, SBS provides a full range of services with rational, scientific and effective solutions, as a practical, progressive, innovative & solidarity company.
Our company prefabricated house is a new type environmental friendly product that adopts steel structure as frames, employs various plates and panels as surrounding protection system, uses high strength bolts as component connection. The prefabricated house is mainly used as modular house, office, cleaning workshop, cold storage room, wide span workshop, warehouse, exhibition hall, stadiums, hangars, steel-structure supermarkets, high-rise steel constructions, logistics center, container house and so on. Our house has been sold well to Middle East, Africa, Southeast Asia, South America and other more than 30 countries and areas.
Foshan Shengbang Steel Structure Co., Ltd. Possesses professional large-scale steel structure production equipments and the automatic spraying production line, so we can satisfy the different customers demand. We takes "build your future" as mission and takes company growth as premise. The company has trained many high quality marketing personnel, professional technician and construction workers. We take the customers' demand as the guidances, then provide reasonable, scientific and effective solution for customers. We regard practical growth, innovation and group solidarity as our company spirit, so that we can offer all-round service to customers.
Foshan Shengbang Steel Structure Co., Ltd. Will cooperate sincerely with the customers and build better future under the principle of win-win cooperation.
