Product Specifications
Prod Model: |
XK-360 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type Of General Rubber Machinery: |
Mixing Roll |
Type Of Tire Machinery: |
Rubber Regeneration Machinery |
Certification: |
ISO, CE |
Name: |
Milling Machine |
Roll Working Diameter: |
360mm |
Roll Working Length: |
900mm |
Linear Velocity Of The Front Roll: |
16.25m/Min |
Friction Ratio Of Rolls: |
1:1.25 |
Max. Nip Of Rolls: |
10mm |
Type: |
General Rubber Machinery |
Product Description

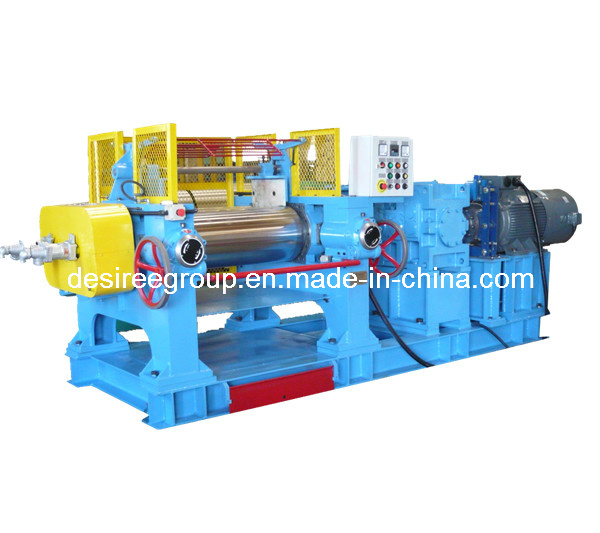

Wide Use Rubber Plastic Mixing Milling Machine
Function:
Mainly used for rubber warming, plasticating, mixing, and sheeting.
Features:
1. Weld structure.
2. Rollers: Made of alloy chilled cast iron, hollow, with smooth surface after precision grinding processing.
3. Reducer: With hard-tooth gears. Noise is low, and using life is long.
4. Bush: Three choices, nylon, copper, roller bearing
5. Nip adjustment: Two choices, manual and electric
6. Lubrication of roll: Two choices, oil lubrication and grease lubrication
7. Emergency stop device: With emergency stop lever and buttons, to ensure the safety of operator and equipment.
Quality Control:
BEFORE PACKAGE, LOAD TEST WILL BE CARRIED OUT, TO ENSURE THE CUSTOMER CAN USE THE MACHINE IMMEDIATELY AFTER INSTALLATION.
Our Services:
1. One year warranty.
2. Engineers available to service machinery overseas
3. Any demand, we will give feedback within 24hours.
If you have any question about our products, please feel free to contact with me.
Model No. |
XK-250 |
XK-360 |
XK-400 |
XK-450 |
XK-550B |
Roll working diameter(mm) |
250 |
360 |
400 |
450 |
550 |
Roll working length(mm) |
620 |
900 |
1000 |
1200 |
1500 |
Linear velocity of the front roll(m/min) |
14.1 |
16.25 |
18.65 |
24.26 |
27.94 |
Friction ratio of rolls |
1:1.17 |
1:1.25 |
1:1.27 |
1:1.27 |
1:1.22 |
Max. nip of rolls(mm) |
8 |
10 |
10 |
15 |
15 |
Feeding capacity per batch(kg) |
8~15 |
20~25 |
18~35 |
25~50 |
50~60 |
Motor power(kW) |
18.5 |
30 |
37 |
55 |
110 |
Overall size: L * W * H (mm) |
3400*1500*1800 |
3780*1850*1750 |
4350*1850*1785 |
5200*2380*1840 |
5870*2475*2045 |
