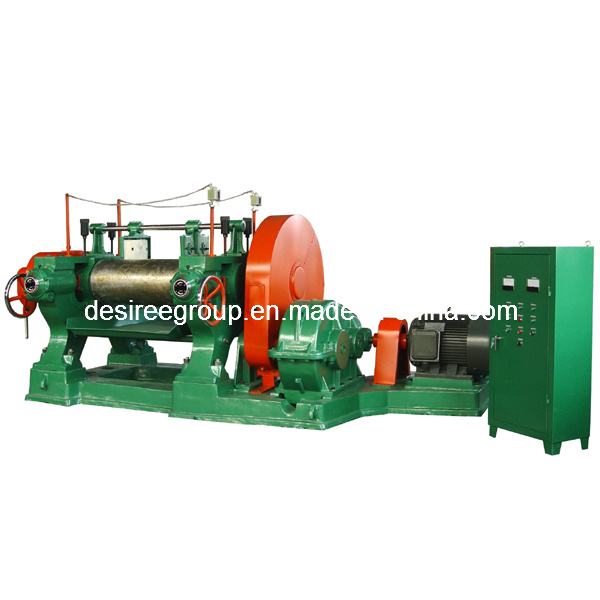

Wide Use Two Roll Rubber Plastic Compounding Machine

Name: Wide Use Two Roll Rubber Plastic Compounding Machine
Brand: china-manufacturer-directory.com
SKU: 688708232
Availability: InStock
Rating: 4.7 (117 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 16700-22700/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	XK-400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of General Rubber Machinery:	Mixing Roll
Type Of Tire Machinery:	Rubber Regeneration Machinery
Certification:	ISO, CE
Working Length:	Customised Is Accepted.
Color:	Specified by The Customer
Delivery Detail:	Within 60days After Receiving The Deposit
Type:	General Rubber Machinery
Warranty:	One Year

Product Description

Wide Use Two Roll Rubber Plastic Compounding Machine

Function:
Mainly used for rubber warming, plasticating, mixing, and sheeting.

Technical Parameters:
Model No.: XK-400

Roll working diameter(mm): 400

Roll working length(mm): 1000

Linear velocity of the front roll(m/min): 18.65

Friction ratio of rolls: : 1: 1.27

Max. Nip of rolls(mm): 10

Feeding capacity per batch(kg): 18~35

Motor power(kW): 37

Overall size: L * W * H (mm): 4350*1850*1785

Features:
1. Rollers: Made of alloy chilled cast iron, hollow, with smooth surface after precision grinding processing.

2. Reducer: With hard-tooth gears. Noise is low, and using life is long.

3. Bush: Three types, nylon, copper, and roller bearing

4. Nip adjustment: Two types, manual and electric

5. Lubrication of roll: Two types, oil lubrication and grease lubrication

6. Emergency stop device: With emergency button and lever, to ensure the safety of operator and equipment.

Quality Control:
BEFORE PACKAGE, LOAD TEST WILL BE CARRIED OUT, TO ENSURE THE CUSTOMER CAN USE THE MACHINE IMMEDIATELY AFTER INSTALLATION.

Our Services:

1. One year warranty.
2. Engineers available to service machinery overseas
3. Any demand, we will give feedback within 24hours.

If you have any question about our products, please feel free to contact with me.

Other Model's Technical Parameters:

Mixing Mill Model No.	XK-160	XK-230	XK-250	XK-300	XK-360	XK-450	XK-560	XK-550B	XK-660
Roll working diameter(mm)	160	230	250	300	360	450	560/510	550	660
Roll working length(mm)	320	600	620	750	900	1200	1530	1500	2130
Linear velocity of the front roll(m/min)	8.95	10.21	14.1	15.1	16.25	24.26	27.72	27.94	28.6
Friction ratio of rolls	1:1.35	1:1.19	1:1.17	1:1.25	1:1.25	1:1.27	1:1.2	1:1.22	1:1.24
Max. nip of rolls(mm)	4.5	7	8	10	10	15	15	15	15
Feeding capacity per batch(kg)	1~2	6~10	8~15	15~20	20~25	25~50	35~50	50~60	165
Motor power(kW)	5.5	15	18.5	22	30	55	90	110	245
Overall size: L * W * H (mm)	13808601320	280012001120	340015001800		378018501750	520023801840	584522841978	587024752045	746536622080
