Product Specifications
| Prod Model: |
KLD - Aquatic Fish Feed Machinery |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Aquatic Fish Feed Machinery |
| Brand Name: |
Kelid |
| Type: |
Feed Flakes Machine |
| Energy Source: |
Steam, Electricity |
| Raw Materials: |
Bone Powder, Fish Meal, Corn Powder and So on. |
| Product Shape: |
Flakes. |
| Capacity: |
20 - 200 Kg/H |
| Voltage: |
110 - 480 V |
| Automatic Grade: |
Fully Automatic. |
| Operation: |
Easy. |
| Application: |
Fish |
| Feed Type: |
Fish Meal |
| Customized: |
Customized |
Product Description
Widely Usage Turnkey Aquatic Fish Feed Machinery
Introduction of Aquatic Fish Feed Machinery:

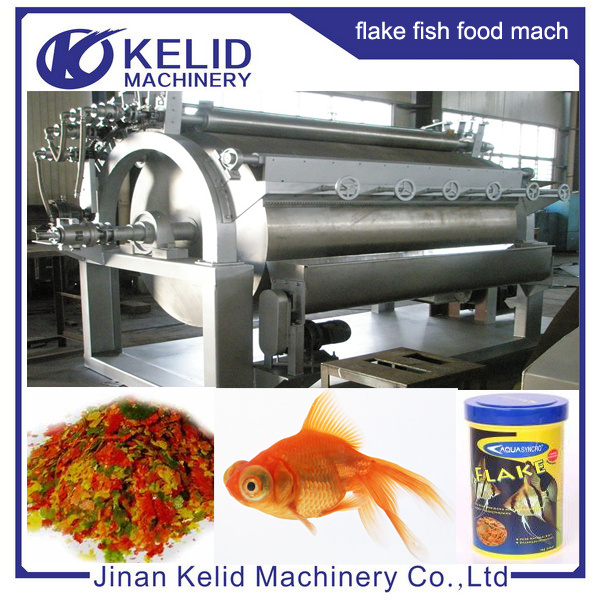

Flake fish feed machine is a kind of rotating continuous drying equipment with internal heating conducting_style. Certain thickness of materials film attached to the drum from material liquid vessel under the drum. Heat is transferred to the interal wall of the cylinder through pipes and then to the external wall and to materials. Dried products are then scraped off by the blade fitted on the serface of the cylinder, fall down to the sprial conveyor under the blade, and are conveyed, collected and packed.
Technical and Parameters of Aquatic Fish Feed Machinery:
Spec | Size of cylinder diameter × length(mm) | Effective heating area(m2) | Drying capacity(kg·H2O/m2·h) | Steam consumption(Kg/h) | Power of motor(Kw) | Size
L×W×H(mm) | Weight(Kg) |
| KLD - 600 | Φ600×800 | 1.12 | 40-70 | 100-175 | 2.3 | 1700×800×1500 | 850 |
| KLD -700 | Φ700×1000 | 1.65 | 60-90 | 150-225 | 3 | 2100×1000×1800 | 1210 |
| KLD -800 | Φ800×1200 | 2.26 | 90-130 | 225-325 | 4 | 2500×1100×1980 | 1700 |
| KLD -1000 | Φ1000×1400 | 3.30 | 130-190 | 325-475 | 5.5 | 2700×1300×2250 | 2100 |
| KLD -1200 | Φ1200×1500 | 4.24 | 160-250 | 400-625 | 7.5 | 2800×1500×2450 | 2650 |
| KLD -1400 | Φ1400×1600 | 5.28 | 210-310 | 525-775 | 11 | 3150×1700×2800 | 3220 |
| KLD -1600 | Φ1600×1800 | 6.79 | 270-400 | 675-1000 | 11 | 3350×1900×3150 | 4350 |
| KLD -1800 | Φ1800×2000 | 8.28 | 330-500 | 825-1250 | 15 | 3600×2050×3500 | 5100 |
| KLD -1800A | Φ1800×2500 | 10.60 | 420-630 | 1050-1575 | 18.5 | 4100×2050×3500 | 6150 |
Packaging & Shipping for Aquatic Fish Feed Machinery:
Packing: inside plastic bag, outside wooden case for Aquatic Fish Feed Machinery (Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Transportation: shipping, train, express or upon clients' demands.
Our Professional Service for Aquatic Fish Feed Machinery:
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
4. Overseas installation and training of equipment maintenance and operating personally;
5. Provide basic production techniques and formulas;
6. 1 year complete warranty for Aquatic Fish Feed Machinery.
Our Company Information:
Jinan Kelid Machinery Co; Ltd. is a professional supplier of food processing machines. Our company's Motto is: "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development.
We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the clients specific requirement, we also design and produce the machines to order. We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven, packaging machines, rice cake machine etc... Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
All inquiries are welcome.
Why Choose us as a reliable Aquatic Fish Feed Machinery supplier?
1. Advantage technology
2. High quality material
3. Tight quality control
4. Accurate maching
5. 7 - 24 hours service
1.What's your payment terms?
Our payment terms is 40% T/T as down payment, 60% by irrevocable L/C at sight or T/T before delivering.
2. What's your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service
3. How about the installation?
We will dispatch our engineers to your factory to guide you installation and commissioning work and training your operator.
