Product Specifications
| Prod Model: |
FS-C006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Advantage: |
Light and Durable |
| Life Spam: |
50 Years |
| Market: |
Global |
| Installtion: |
by Yourself But We Can Guide Installing |
| Size: |
as Your Requestment |
| Design: |
Professional Design |
| Design Data: |
Offered by Customer |
| Installation: |
We Can Guide The Installation |
| Delivery Time: |
30 Days After Deposit |
| Payment: |
30%Tt in Advance |
| Type: |
H-Section Steel |
| Standard: |
GB |
| Trademark: |
Quality Carbon Structural Steel and Alloy Structural Steel |
| Forming: |
Hot-Rolled Steel |
| Connection Form: |
Welded Connection |
| Member: |
Steel Column |
| Type Of Steel For Building Structure: |
H-Section Steel |
| Carbon Structural Steel: |
Q235 |
| Residential Wall Structure: |
Top Wall Beam |
| Application: |
Steel Structure Bridge |
Product Description

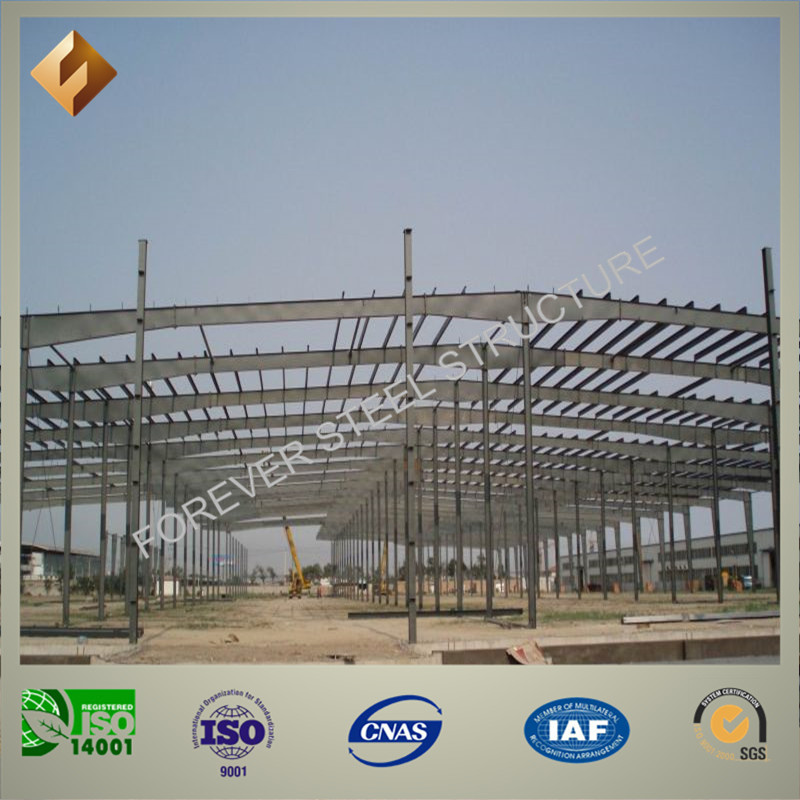

1. General Description for Prefabricated Light Steel Structure for Workshop:
Light steel structure for workshop is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors. Light movable steel structure warehouse is widely used in storage, processing, large factories, and so on.
2. Advantages of Prefabricated Light Steel Structure for Workshop:
1. low cost and easy installation
2. used in building site and can be reused in lots of projects.
3. We can design the layout according to your different requirements . It's fireproof, waterproof, quakeproof and heatproof.
4.Excellent in the feature of typhoon and earquakproofing grade is 8 grades.
6. The using life is around 50 years.Environmental protection and economy.
3. For the wall and roof, you can have the following choice
A)Color Steel Sheet Wall, thickness 0.425mm, Galv. With painting on surface
Advantage: Low cost and easy to install, the volume for the whole warehouse will be small, it can save some containers to load
Disadvantage: Insulation is bad
B)Color Steel Sheet + Glass Fiber + Aluminium Paper
Advantage: The cost is reasonable, the volume for the whole warehouse will be small, it can save some containers to load
Disadvantage: Insulation is good, Installation will need more labor cost and hours
C) EPS Sandwich Wall Panel(50mm or 75mm, even 100mm for cold area)
Advantage: The cost is reasonable, Easy to Install, Insulation is reasonable
Disadvantage: The volume for the whole warehouse will be Big, it will need more containers to load
D)PU Sandwich Wall Panel(50mm or 75mm, even 100mm for cold area)
Advantage: Easy to Install, Insulation is the best, we have a special embossed PU wall panel(27mm), it can make the house looks very good
Disadvantage: The cost is high, the volume for the whole warehouse will be Big, it will need more containers to load
4. We can design the warehouse or workshop for you, but we need the following information.
A) The layout, it can be very simple, maybe just the length x width x height
B) The usage for the house, warehouse or workshop, is there some crane? If so, what's the capacity and qty.
C)Wind resistance and snow resistance
| Material List |
| Foundation | Anchor bolts |
| Canopy | steel frame + steel sheet |
| Column | H section steel | Roof cladding | EPS sandwich panel |
| Tubular pillar | PU sandwich panel |
| Lattice column | Rockwool sandwich panel |
| Cross column | Corrugated steel sheet |
| Box column | Skylight panel |
| Beam | H section steel | Ventilator |
| Lattice beam | Wall cladding | EPS sandwich panel |
| Pipe truss | PU sandwich panel |
| Space frame | Rockwool sandwich panel |
| Roof purlin | C section steel | Corrugated steel sheet |
| Z section steel | Mezzanine | Decking floor |
| Wall purlin | C section steel | Checkered steel plate |
| Tie bar | Steel pipes | Insulation | Fiber glass wool |
| Roof bracing | Angle steel | Fasteners | High strength bolts |
| Steel pipes | Common bolts |
| Column bracing | Angle steel | Expansion bolts |
| Steel pipes | Accessories | Flashing |
| Pulling strap | Steel round bar | Trim |
| Sleeves | Steel pipes | Gutter |
| Knee bracing | Angle steel | Down pipe |
Our Advantages on Multi-Span High Quality Steel Structure Warehouse:
1. Long History and Rich Experience in Steel Structure Industry:
We have more than 9 years' experience with steel structure manufacturing and steel building projects running. During the past 9 years we have done many steel structure projects both at home and abroad. Now our projects stand in more than 20 countries around the world.
2. Advanced Equipment and Professional Production Line:
More than 200 well-trained workers running the 6 steel structure production lines all year round to ensure the project finished on time. All equipment is up to standard and all the facilities are maintained periodically by professional technicians.
3. Wide Range of Steel Structure Products:
Our products almost include all kinds of steel structure buildings, such as light steel workshops and warehouses, heavy industrialsteel structure buildings, steel commercial buildings, prefab houses, container houses, steel structure aircraft hangars, space frame and pipe truss roofs, and mining belt conveyor galleries.
4. Solid Design and Management Ability:
We have more than 20 experienced engineers who are familiar with the structure design and management procedures of all steel structure projects. There is a high-qualified, high-efficiency and professional technical team ready to find best solutions for you at any time.
5. Best Service and Qualified QC Management:
Every one of our marketing managers is well trained and willing to provide best services. And we have a strict standard for finished products testing, to ensure the quality of all our steel structures. Meanwhile we have also passed the ISO 9001 quality management system certificate.
Company Profile:
Qingdao Forever Steel Structure Co., Ltd lies in the City of Qingdao, a prosperous port for international shipping lines and hometown of many world-famous industry brands. Established in the year 2005, Forever has been specializing in the design, fabrication, exporting and installation on varied kinds of steel structures for 9 years.
There are 6 production lines for steel fabrication that all consists of advanced equipment in a total plant area of 100, 000 square meters. Different kinds of structural steel parts including welded H beams, T beams, "+" beams, box beams, steel pipe parts, angle steel parts, lattice beams, special shaped steel components, etc. Are fabricated here with an annual production capacity of 50, 000 metric tons. More than 200 experienced workers are busy with the production every day.
Qingdao Forever Steel Structure Co., Ltd has a professional technical team of more than 20 experienced engineers who are familiar with the structure design, local condition, customers' preference, governments' codes, etc. For overseas markets. Our team can help to design the structures of light steel gabled frames, commercial buildings, industrial platforms, pipe truss & space frames, petroleum pipe galleries and trestle structure for coal conveyors.
Forever has acquired the ISO9001 quality management system certificate and ISO14001 environmental management system certificate. With inherent honesty and growing strength that never stops, Forever has attracted customers from all over the world and our products have been shipped to more than 10 countries in Northern Asia, Middle East, Africa, Australia and Latin America.
Qingdao Forever Steel Structure Co., Ltd lies in the City of Qingdao, a prosperous port for international shipping lines and hometown of many world-famous industry brands. Established in the year 2005, Forever has been specializing in the design, fabrication, exporting and installation on varied kinds of steel structures for 9 years.
There are 6 production lines for steel fabrication that all consists of advanced equipment in a total plant area of 100, 000 square meters. Different kinds of structural steel parts including welded H beams, T beams, "+" beams, box beams, steel pipe parts, angle steel parts, lattice beams, special shaped steel components, etc. Are fabricated here with an annual production capacity of 50, 000 metric tons. More than 200 experienced workers are busy with the production every day.
Qingdao Forever Steel Structure Co., Ltd has a professional technical team of more than 20 experienced engineers who are familiar with the structure design, local condition, customers' preference, governments' codes, etc. For overseas markets. Our team can help to design the structures of light steel gabled frames, commercial buildings, industrial platforms, pipe truss & space frames, petroleum pipe galleries and trestle structure for coal conveyors.
Forever has acquired the ISO9001 quality management system certificate and ISO14001 environmental management system certificate. With inherent honesty and growing strength that never stops, Forever has attracted customers from all over the world and our products have been shipped to more than 10 countries in Northern Asia, Middle East, Africa, Australia and Latin America.
