Product Specifications
| Prod Model: |
ST-T01/02/04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Star |
| Storing Capacity When Offline: |
100, 000 |
| Power Supply: |
12VDC 3A or 12VDC 5A |
| Main Board Power Consumption: |
Less Than10 |
| Access Interface: |
TCP/IP, RS485 |
| Door Open Delay: |
From 1sec to 600secs |
| Working Temperature: |
-40 to 70 |
| Working Humidity: |
10--90%Rh, No Condensation |
| Card Capacity: |
20, 000 Privileges |
| Power Failure Protection: |
Flash Memory |
| Communication Mode: |
TCP/IP, RS485 |
| Type: |
Card |
Product Description

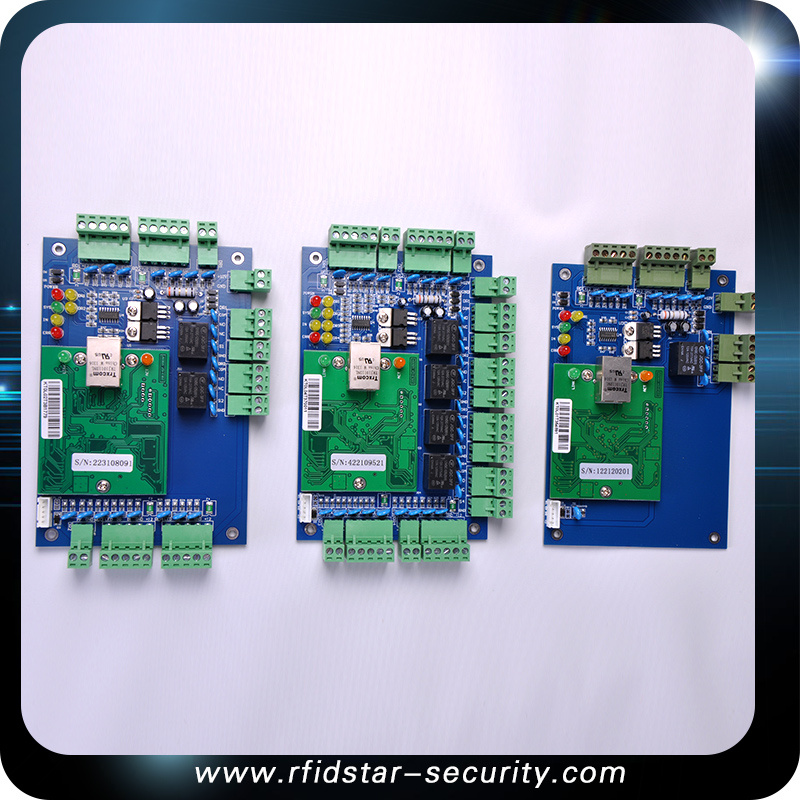

Wiegand TCP/IP Doors Access Controller Support 20000 Cards, 100000 Records.
One/Two/Four Door TCP/IP Access Controller
Specification
Type No.: ST-T01/02/04
Communication: TCP/IP, RS485
Short description: Dual directional control for Two doors
Main board size: 160mm× 106mm
Control box size: 273mm× 228mm× 65mm
Power supply: 12VDC 3A or 12VDC 5A
Main board power consumption: Less than100mA
Input reader format: Wiegand 26
Readers input No.: 2x2, 1x2, 1x4
Door open delay: From 1sec to 600secs
Maximum capacity: N× 256 Unlimited
Working temperature: -40 to 70° C
Working humidity: 10-90%RH, no condensation
Card capacity: 20, 000 privileges
Storing capacity when offline: 100, 000
Power failure Protection: Flash memory
Max distance from reader to main board: 100 meters, suggest not to exceed 80 meters
Accessories: Main board, main board cover, power supply and control box, cables, disk, 2 keys, cartoon
We also have more different types access contorller for card and door access control, if you are interested in, Pls contact us by our email.
Complsive open and close door at long time
| Yes |
Open door in remote distance
| Yes |
Inter block
| Yes |
Anti pass back and tail
| Yes |
Multi-card open door
| Yes |
Open long time at specified time
| Yes |
Electronic map
| Yes |
Urgency locking
| Yes |
First card unlocking
| Yes |
Unlock based on internal and external validation
| Yes |
Keypad (card+password, supper password)
| Yes |
Our services
1 Year Warranty
Fast lead time
Stable delivery way
Strict QC management
Timely information feedback
Company information
STAR SECURITY TECHNOLOGIES(Shanghai)Co., Limited is a professional manufacturer of Security Products, Main products are the access control RFID reader, offline or TCP/IP network Access Controller, related access control products. Along with the RFID Cards, special mini cards, Smart label, RFID Tags, NFC tag, Also we have Special trading business on the Animal Identification, like the Glass tag(microchip), ear tag, comply with ISO11784/11785.
STAR SECURITY TECHNOLOGIES(Shanghai)Co., Limited is a professional manufacturer of Security Products, Main products are the access control RFID reader, offline or TCP/IP network Access Controller, related access control products. Along with the RFID Cards, special mini cards, Smart label, RFID Tags, NFC tag, Also we have Special trading business on the Animal Identification, like the Glass tag(microchip), ear tag, comply with ISO11784/11785.
Since 2012, we focus on overseas market and integrate production and sales, we will try to provide most valuable products and service in our major area aiming to benefit our customer and end-users, also develop each other.
Star Security integrates designing, molding, manufacturing, testing, and finishing products. We comprise with a team of professional engineers and managers together with the sophisticated equipments for production and inspection. We have set up a standardized production workshop and a creative R&D base.
We also can OEM/ODM for a given brand and design all kinds of practical products as customers' requests, and response to the rapidly changing market quickly.
With the business philosophy of high-efficiency, preeminence, innovation and development, Star products are exporting to Europe, America, and Southeast Asia as well as other regions. Good quality products and comprehensive services have resulted in a high rate of customer satisfaction which has helped us earn a great reputation in this line of business. We will try to provide most valuable products and service in our major area aiming to benefit our customer and end-users, also develop each other.
For more about our company and our products, please contact us by e-mail, telephone...., we will try our best to do all well.
