Product Specifications
| Prod Model: |
KW5226 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wireless |
| Firewall: |
Firewall |
| Application: |
SOHO |
| Transfer Rate: |
10/100Mbps |
| Ports: |
8 |
| Port Structure: |
Modular |
| Network: |
CDMA |
Product Description

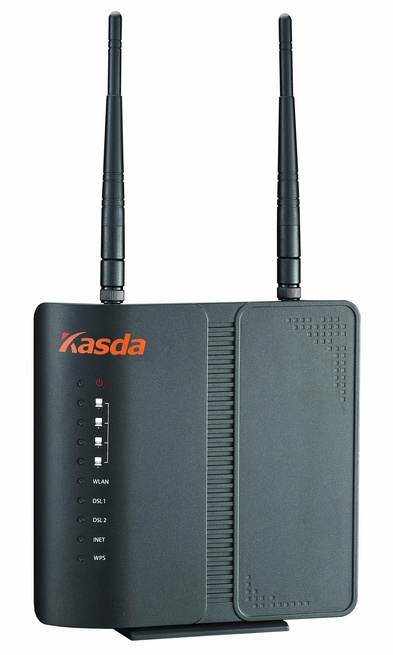

Product Number KW5226 (Wireless Bongding VDSL Modem Router)
WiFi Technology Wireless 802.11b/ g / n AP integrated
WiFi Performance 300 Mbps
WiFi Range Large homes
WiFi Band 2.4 GHz
Number of Ethernet Ports Three(3) 10/100 Mbps Fast Ethernet ports and Two(2)Gigabit Ethernet port
Number of USB Ports One USB port
Key Features Modem/Router /Switch= 3-in-1 Device, enjoy one stop networking solution
DSL & Ethernet dual wan acess
Easy Installation Wizard
Integrated With TR-069 Client
Transparent Bridge working mode
Wi-Fi On/Off Switch allows users to simply turn their wireless radio on or off
802.1p QoS, 4 Queues support
PPPOE, PPPOA, IPOE, IPOA, Bridge service type
DHCP server, relay and client
Parent Control allows to establish restricted access policies for children or staff
Seperated WiFi guest network
External two antennas
1 USB Port for printer
On/off LED lights option
Security NAT for basic Firewall support
Packet Filtering Firewall Support
Three ways of access authentication to Modem (admin/ user/ support)
URL Filtering
IP Filtering
MAC filtering
Processor BCM63168
Memory 8 MB flash and 64 MB RAM
Physical Specifications Dimensions: 7.48*5.51*1.38 in(190*140*35 mm)
Weight: 0.88 lbs(400 g)
Product Diagram
Package Contents VDSL Modem Router
Telephone Line
Base
Ethernet cable
Antennas
External Splitter
Power adapter
Standards compliant with VDSL, VDSL2 standard, Support Fall back to ADSL/ADSL2+
Profile 17a
System Requirements Microsoft® Windows 7, 8, 8.1, Vista® , XP® , 2000, Mac OS® , UNIX® , or Linux®
Microsoft® Internet Explorer® 5.0, Firefox® 2.0, Safari® 1.4, or Google Chrome™ 11.0 browsers or higher
Warranty 1 year warranty
