Price: | US $ 1-115/Piece |
---|---|
Trade Terms: | FOB,EXW |
Min Order: | 1/Piece |
Pay Type: | T/T,Western Union |
Item | Description | |
Operation system | Linux | |
GUI | Setup system parameters with remote controller | |
Security management | Support user password, supervisor password management; support encryption transmission | |
Video | Video input/output | 4-channel video input, 1-channel video output; 1.0Vp-p, 75Ω |
Dual stream | Support | |
OSD | Time & date, vehicle ID, GPS etc | |
Compression | H.264. Hisilicon high performance processor is applied. | |
Preview function | Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function | |
Video frame rate |
PAL: 100 frame/sec, up to 25 frame/sec for single channel NTSC: 120 frame/sec, up to 30 frame/sec for single channel |
|
Video resolution | CIF, HD1, D1,4D1 adaptive | |
Video quality | Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest | |
Video Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional 4D1: 800Kbps ~ 4Mbps, 8 levels of bit rate optional |
|
Audio | Audio input/output | 1-channel input; 1-channel output |
Compression | G.726 | |
Recording | Storage media | H8000 support Hard Disk+SD card, S8000 support only SD card |
File format/system | ASF/ FAT32 | |
Recording mode | Startup recording by default, support auto,timed, alarm & manual recording | |
Recording search | Search recording video files by time, type, storage device, etc. | |
Recording playback | Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time | |
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time | ||
Alarm | Alarm input | 5-channel I/O alarm input |
Alarm recording | Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min | |
Alarm output | 2-channel alarm output | |
Storage space | Support the setting of remain storage space alarm function | |
Functional alarm | Overspeed alarm, gsensor alarm, voltage alarm,snapshot alarm, motion detection alarm | |
Communication interface | RS232, RJ45 10M/100M self-adaption Ethernet interface | |
Wireless transmission (optional) | Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional; | |
GPS (optional) | Support external GPS module | |
Data remote transmission | Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download; | |
PTZ control | Support PTZ control function by local remote controller or client software; | |
Parameter configuration | Support parameter configuration | |
G-sensor | Built-in | |
System upgrade | Support hard disk and SD card / Remote upgrade | |
Power supply & consumption | Power supply management | ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown |
Input voltage | DC:+8V ~ +36V | |
Output voltage | +12V@4*0.5A;[email protected] | |
Power-off protection | Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs | |
Power consumption | Less than 10W in normal working state; less than 0.5W in standby mode | |
Working environment | Temperature |
Normal: 0 ~ +60 degree Hard disk pre-heating: -25 ~ +60 degree |
Humidity | 10% to 95% | |
Dimension | H8000:142(W) x62(H) x123(D) mm, S8000:142(W) x36(H) x123(D) mm | |
Weight | H8000:net weight:1000g , S8000:net weight:550g |

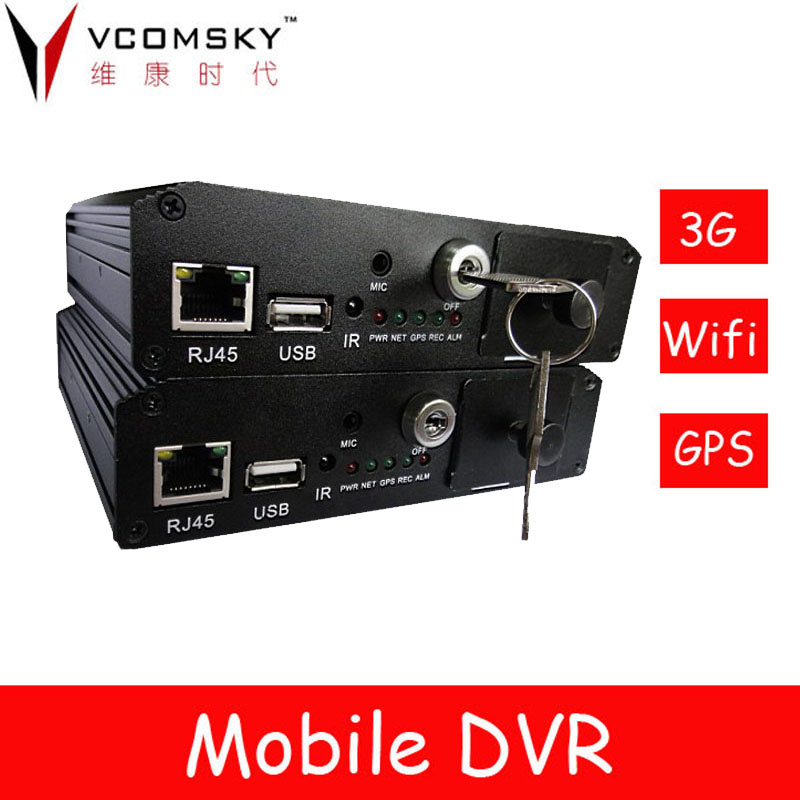

Prod Model: | S8000 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: | 8-36V Wide Range Voltage Input |
Shockproof: | Super Double Universal Shockproof System |
G-Sensor: | Built in G-Sensor Module |
Wireless: | Support GPS, 3G, WiFi for Optional |
Storagy: | Support SD Card |
Alarm: | Multiple Sensor Alarm and Alarm Linkage |
PTZ: | Support Local and Remote PTZ Control |
Video: | 4 Chnnals Video Input, 1 Channal Video Output |
Audio: | 2 Channal Audio Input, 1 Channal Audio Output |
Compression Format: | H.264 |
Brand: | Vcomsky |
Certification: | CE, FCC, RoHS |
Interface: | Airplug |
Warranty Time: | 13 Months |
