Supplier: | Shenzhen Holdjoy Technology Co., Ltd. |
---|---|
Price: | US $ 25-30/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB,CIF,DAT |
![]() |
Prod Model: | HTC-W6 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: | Remote Doorbell |
Style: | One-to-Many |
Talkback Type: | Color Video |
Automation: | Non Automation |
Peephole: | Peephole |
Wireless: | Wireless |
Active Doorbell: | Wireless Video Doorbell |
Wireless Video Doorbell Function: | Outdoor Monitoring |
Application Scope: | Home |
Waterproof: | Waterproof |
Power Source: | Plug |
Brand: | Holdjoy |
Module hardware attribute | Attribute explanation |
Main core | Adapt MTK Cortex-A9 core IC ,dual core 1.3GHz |
Storage | 4GbROM(Flash)+2GbRAM(DDR) |
Network | 3G(WCDMA)/2G(GSM)+WIFI(802.11.b/g/n) |
Camera | External ,can use 30W camera , OV7725 optional,300W optional OV3640,500W optional ;these camera are 1/4CCD,angle can be wide up to 150 degree. |
Display | External,MIPI adapter ,can us 5 inches(480X854),7inches (1024X768)display |
Consumption | Stand-by current 1mA,bidding current 50mA,work current without display260mA |
Battery | External ,2000mAh minimum ,can continue work around 2 month |
Circuit function | Function description. |
Power supply | 3.7-4.2Vpower supply |
PIR | external,support AS082+B200 moving detection |
SIM card | external,support8pin mircro SIM card( Micro SIM card 12*15mm) |
TF card | external,can expand to 32GB TF card |
Ethernet | external,supportSR9800 ic ,from RJ45 network wire adapt to USB |
MIC | external,support42db high sensitive mic |
Speaker | external,interal amplifier built in,can connect 1-3Wspeaker |
Button | On/off switch:to switch on/off machine; Reset -to reset machine; Call -to call customer mobile,or hang off communication |
Infrared night camera | Support external 850wavelength visible IR |
Indication lamp | Support external LED indication light,to show status of machine |
Standy by IO | Stand by GPIO for remote control of lock and smoke detector etc.. |
SOFTWARE FUNCIION | FUNCTION EXPLANATIONS |
DOORPHONE INTERCOM | Whenever there is network(WIFI/4G),customers terminal(MOBILE,TABLET) If customer usinf their mobile and customer press doorphone,,customer mobil also ringing and if customer receive the call, their last call will stop |
Remote monitor | Customer can monitor the main door situation and can listen the door situation but people at doorphone can not listen to customer's mobile tablet |
Real time security | Under the FIR moving detection system,whenever suspicious person stay in front of doorphone , our WIFI module will send alarm to customer terminal to enable their customer to monitor the situation real time. |
Remote open door | Support one remote door opening function (work under the permission from Court) |
Dialing | Support pre-selection SIM function ,if whenever customer has no network and vistor ring,can pre selection(setting) in mobile to compensate this fault; |
One key setting | Through WIFI ,customer can simplified the doorphone operation |
Video | Video format :supportH264,H263,MPEG4,VP8; Video quality (resolution):internet transmission quality 480P; Video delay : < 0.8 second (according to WIFI strength) |
Audio | Audio:supportG711,ILIBC,SPEEX etc ; Audio quality:full double ways transmission,in the hardware(software and echo suppression) and software/hardware echo depression and elimination. |
Customer terminal | Support android / ios system |

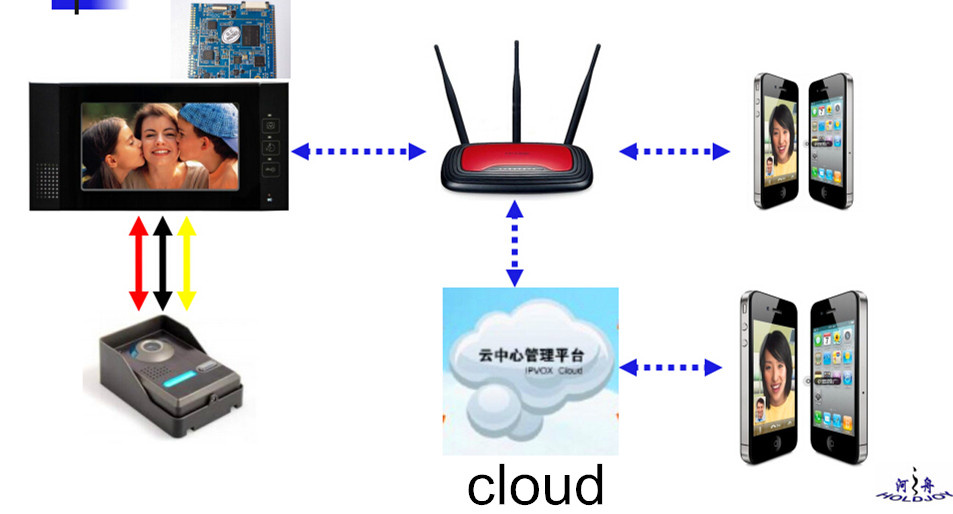

Server | Transmission:supportP2P mode; Service structure:support negative loading balance,service can establish active group |
FUNCTION | FUNCTIO DESCRIPTION |
Selection of doorphone | 1.Low consumption when stand by, only 1 mA standy time; 2.Video H264 calculation,low bit rate,better transmission result; 3.Audio full duplex intercom,more convenient in customer communication; 4.GSM network protection,to ensure user can receive every visitor's information; |
Can select the new doorphone | 1. Can send audio video signal to multi user mobile ,real time communication with visitor; 2.Support High Defination LCD; 3.Indoor monitor android system ,can expand and combine with other smartHome product to implement concept of internet of thing. |
