Product Specifications
| Prod Model: |
PDA-8848 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia |
| Certification: |
FCC |
| CPU: |
32 Bit ARM 7 |
Product Description

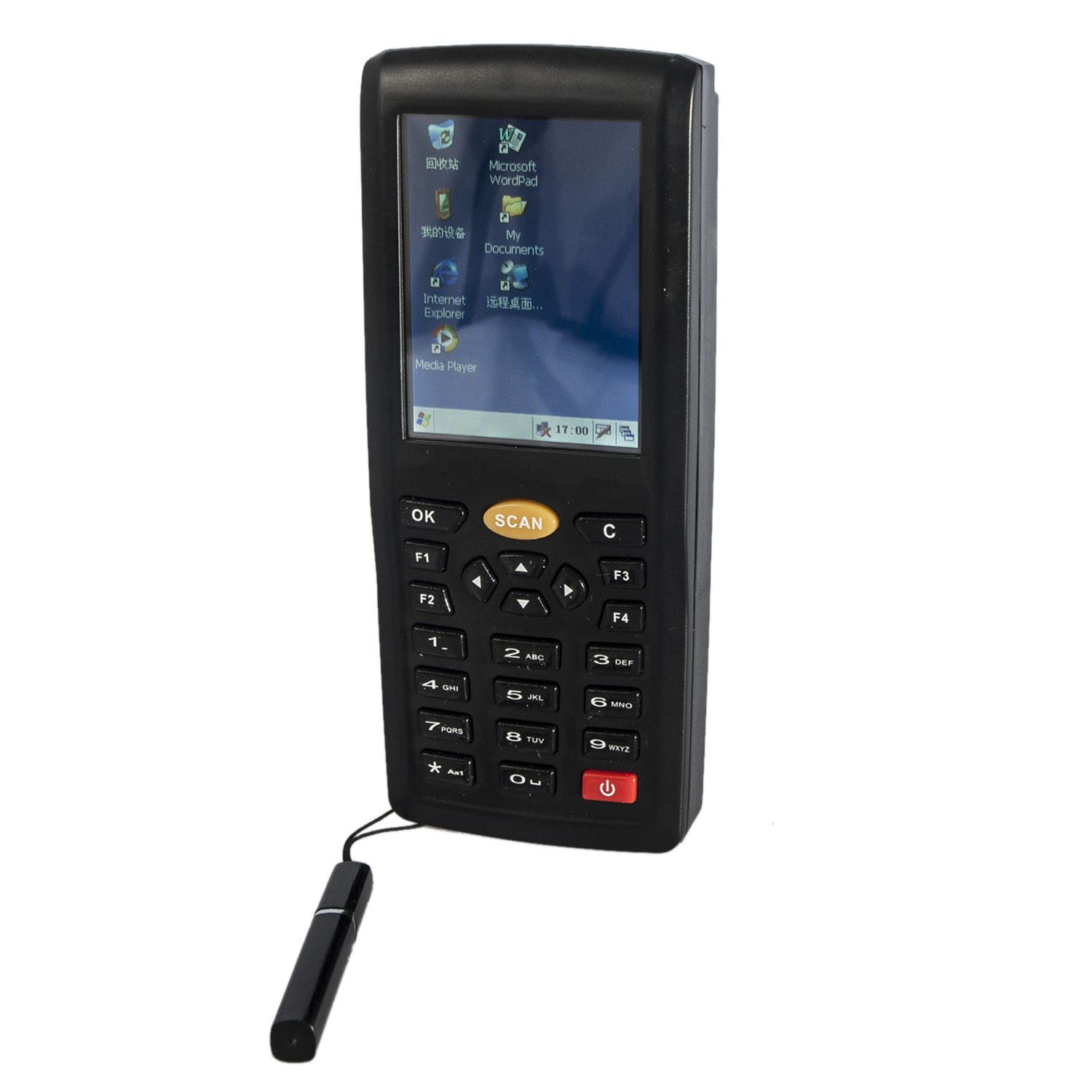

WinCE Data Collect Mobile Computer(PDA-8848)
Features:
1. MULTI-FUNCTIONAL
Covers the full circulation of commodity: Receiving, shipping, cycle counting, replacement and defects report
2. RECONIZABLE
Supports the download of the item file: Barcode scanned matches to the corresponding item automatically and displays on the screen of the unit right away
3. SIMPLE
2.8" touch screen color display and graphical menu makes it easy to understand;
4. EFFICIENT
Report is automatically generated right after inventory is processed, 90% savings on time, manpower and administrative overhead;
5. SAFE and RELIABLE
Supports real-time, storage and batch transmission of data without loss
6. WIRELESS
Integrated WiFi and Bluetooth communication;
7. ENDURING
2800mA POLYMER-Lithium-ion battery ensures long working hours of the unit
Field of Application:
Widely used in retail, manufacturing, postage, logistic, medication, assets management, warehouse, library, supermarket, exhibition and etc.
About Us:
Easytech is a technology-driven company specialized in the Auto-Identification (Barcode & RFID)
Industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner,
Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and
RFID Reader.
|
Main Unit |
|
Model |
PDA-8848 |
|
Color |
Frosted black |
|
Operating System |
Windows CE 5.0 |
|
CPU speed |
400MHz |
|
Memory |
|
RAM |
64KB |
|
ROM |
128MB |
|
|
MicroSD (TF), max. 8G |
|
Screen |
|
size |
2.8 " touch screen |
|
color |
16bit true color (65536 colors ) |
|
resolution |
240*320 TFT |
|
Physical |
|
Battery |
Rechargeable Lithium-ion (3.7V , 2800mAh ) |
|
Working time |
6 hours |
|
Standby |
15 days |
|
Dimension |
150mm ×63mm×31mm |
|
Material |
ABS + silicone |
|
Charging indicator |
LCD |
|
Working current |
420mA |
|
Standby current |
6mA |
|
EMC |
CE & FCC DOC compliance |
|
Scanning |
|
Light Source |
650nm Laser Diode |
|
Decode Rate |
45±2 scans / second |
|
Resolution |
4mil |
|
Scan width |
20mm @window , 100mm@100mm |
|
Depth of Field |
0 ~ 250mm (0.33mm , PCS 90% ) |
|
indicator |
beeper ,LCD |
|
Barcode supported |
EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 ,Matrix 2 of 5 , MSI^ |
|
Transmission |
|
cable |
USB 2.0 |
|
wireless |
WiFi & Bluetooth |
|
Environment |
|
Operating Temperature |
0 ~ 45 |
|
Storage Temperature |
-20 ~60 |
|
Humidity |
5% ~ 95% |
|
Lumination |
Max.5,000 Lux (Fluorescence ) |
Easytech is one of leading high technology companies which is specialized in the Auto-Identification (Barcode & RFID machine) industry. Our products include Laser Barcode Scanner, CCD Barcode Scanner, Barcode Data Terminal, RFID Data Terminal and RFID Reader.
In quest of the goal of "making the best cost-effective Auto-ID products in China", Easytech complies with a high standard and restrict requirements on product development, manufacture and services, and continuously searches for and releases products out of new demands of customers to meet the ever-changing market needs. Besides, Insisting on a principle of "well done of the experienced product before moving on to the next new, Making a plan on the new generation for the future while developing the present", Easytech is able to release at least one of leading products from the same industry every year.
Because of excellent performance and high quality of the products, Easytech has imajor companies such as China Mobile, China Telecom, China Petrol and branches of Public Security, and also our products are seen in many other retailers, chain-stores, logistic and manufacturing enterprises. In 2007, Easytech is honored as one of the "Top 10 National Brand of Barcode Industry" by the Auto-Identification Association of China.
Let us work together and make a better tomorrow with all new and old customers from all over the world.
