Product Specifications
| Prod Model: |
ZGS-Z. F-/35 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wind Power Generator: |
Transformer Wind Power Substation |
| Type: |
Power |
| Structure: |
Fixed Board |
Product Description

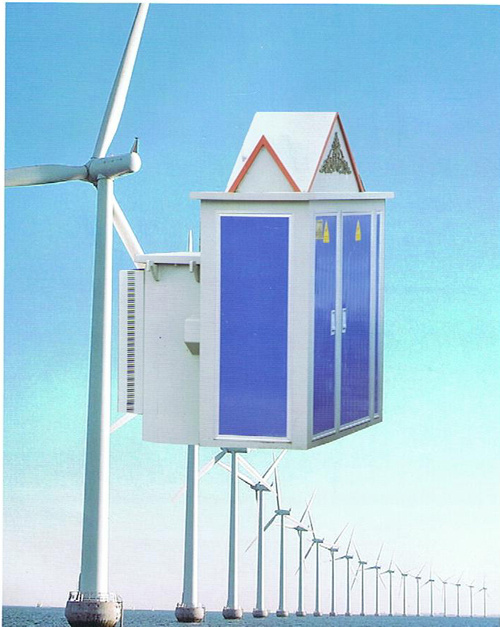

ZGS-ZF/ 35 series with a combined wind power transformer is a step-up transformer, high voltage current limiting fuse, load switch, voltage switch and the corresponding auxiliary equipment in one of the special electrical equipment. It issued 0.69kV wind turbine voltage increased to 35kV, after 35kV cable line up the output power. Is ideal for wind power generation system equipment.
Features:
1, sealed, safe and reliable products using the new S9/35kV series technology, reasonable structure, high reliability.
2, small size, compact structure, prefabricated substation for the common 1 / 3 to reduce the footprint.
3, strong overload capacity.
4, box using a special process, the two paint treatment, with good corrosion resistance, can effectively prevent the erosion of sand.
5, users can request the use of high light oil, to eliminate fire hazards.
Main Technical Specification:
1) Voltage
High-pressure side of the rated voltage: 35kV, 36.75kV, 38.5kV
Low side voltage: 0.69kV, 0.62kV
2) Rated frequency: 50Hz
3) Rated insulation level
Transformer high side: Power frequency withstand voltage: 85Kv; Shock peak voltage: 200kV (full wave)
Transformer low voltage side: Power frequency withstand voltage: 5kV
4) Phase: Three phase
Ningbo Ville Electric Co., Ltd. is a company specialized in research, development and production of transformer and high voltage & low voltage electrical power equipment.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in turnkey project contractor of power substation, power plant project and electric power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products.
Products application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
