Window and Door Profile Making Machinery

Product Specifications

Prod Model:	SJSZ65/132
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Window and Door Decoration
Power Supply:	3 Phase, 380-450V, 50-60Hz
Max Output:	250kg/H
Electrical Components:	Famous Imported Brands
Extruder Model:	Conical Twin Screw Extruder
Calibrating Table:	6m Length
Delivery Time:	50 Days
Guaranteed Time:	12 Months
Machine Dimension:	24m*2m*2m
Certification:	SGS
Automation:	Automatic
Product Type:	PVC Profile
Computerized:	Computerized
Screw:	Double-Screw
Customized:	Customized

Product Description

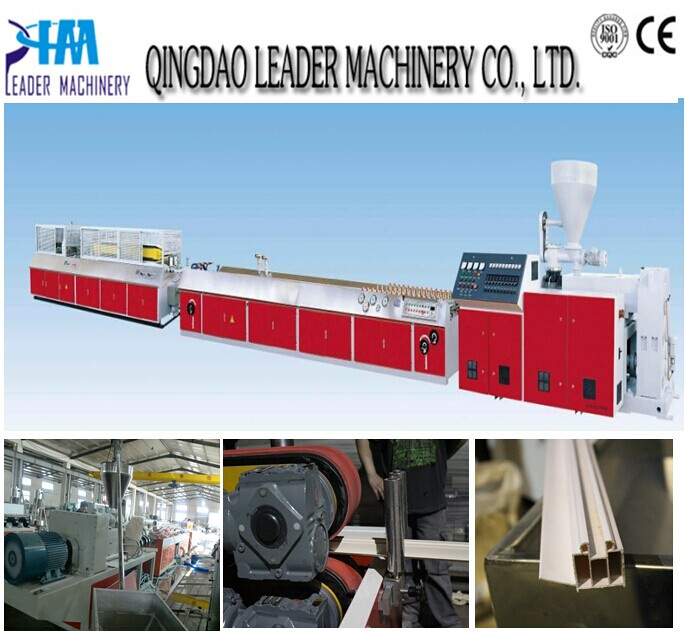

SJSZ-65/132PVC window/door profile extrusion machine
Applications:

This line is mainly used to produce PVC Window and Door Profile, PVC Ceiling Panel and Wall Panel, PVC Floor, PVC Wide Door Plate, Windowsill, Electrical Conduit Trunking Chanel and other Small Profiles.

Advantages of This Line
1. Even and Uniformed Plasticization
2. High Efficiency and Capacity
3. High Accuracy and Automatic Degree
4. Perfect Human-Computer Interface and Nice Out-looking
5. Work Stable, Easy to Operate
6. Safe, Durable
7. CE, ISO, SGS Certification, High Quality
8. Famous Important Electrical Components: Omoron, ABB, Schneider, Simens, RKC, Delix etc.

Accessory List
1 ZJF-700 Automatic Spring Feeding Machine 1 set
2 SJSZ Series Conical Twin Screw Extrude 1 set
3. Profile Die Heads/Moulds 1 set
4 ZDY Series Vacuum Calibration Table 1 set
5 QYY Series Hauling-off Machine/Unit 1 set
6 SFL Series Stacker 1 set
Optional Devices
1 SRL-Z High Speed Hot and Cold Mixing Machine/Unit 1 set
2 SWP-Plastic Crusher 1 set
3 SMP-Plastic Milling Machine/Pulverizer 1 set

Name of equipments	Spec./Model	YF210	YF240	YF500	YF800
Extruder	Extruder model	LSZ51/105	LSZ65/132	LSZ80/156	LSZ92/188
	Dimension(m)	3.3*1.45*2.1	3.45*1.45*2.25	5*1.54*2.28	6.2*1.55*2.7
	Capacity(kg/h)	50-150	80-250	100-350	200-600
	Installed paower(KW)	25	64	115	168
Sizing table	Dimension(m)	4.2*1*1.1	5.8*1.*1.1	6.5*1.5*1.1	6.5*1.5*1.1
	Installed paower(KW)	18	24	30	43
Hauling and cutting machine	Dimension(m)	5.8*1.1*1.7	5.8*1.1*1.7	3.1*1.3*1.7 2.2*1.45*1.8	3.55*1.85*1.6 2.5*1.8*1.6
	Hauling speed (m/min)	0-4	0-4	0-3	0-2
	Hauling force (N)	30000	30000	35000	50000
	Max cutting area and width (mm)	240*65	240*65	500*80	800*80
	Installed power (KW)	6	6	8	8
Stacker	Stacking length(mm)	6	6	6	6
