Product Specifications
| Prod Model: |
Anjia |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Technique: |
Weaving |
| Delivery Detail: |
in 30 Days After Receipt of The Advanced Payment |
| Size: |
as Customer Request |
| Material: |
Stainless Steel Wire |
| Hole Shape: |
Square |
| Application: |
Protecting Mesh |
| Surface Treatment: |
Galvanized |
| Weave Technique: |
Plain Weave |
| Customized: |
Customized |
| Color: |
Silver |
| Certification: |
ISO9001 |
Product Description

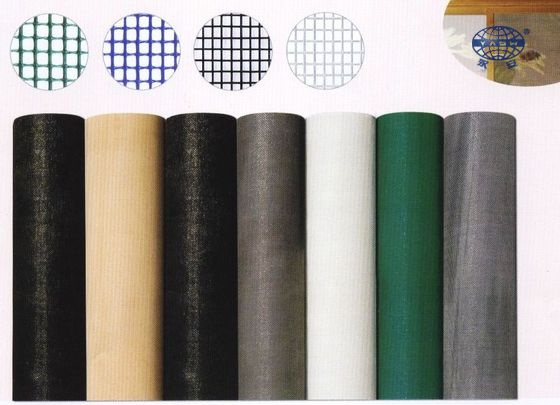

Window screen series are used for industrial purposes doors and porches guards, sieves, filers and numberless purposes.
General Use: With light weight, good flexibility and easy cleaning, window screen netting is mainly used in hotels, public buildings, civil residences against bugs, insects, etc.
Variaties available: Electro gaivanized wire, AL-MA alloy, stainless steel, fiberglass, plastic, enamelled iron etc.
Wire Materials: Mild steel wire, stainless steel wire, Al-ma alloy wire, galvanized iron wire, PVC wire, aluminum wire, chemical fiber.
Packing: Each coil moistureproof paper inside, polythene film outside; then 2 to 10 rolls in one carton.
Standard Window Screen Series fall in grades as follows:
Specification List of Window Screen Netting |
Variety |
Specification |
Technical Notes |
Mesh/Inch |
Wire Gauge |
Roll Size |
Gal.Iron Wire Netting |
10 x 10 |
BWG31
BWG32
BWG33
BWG34 |
3'x100' | | 4'x100' | | 1x25M | | 1.2x30M | | 1.5x25M |
|
Process: Electric galvanized after weaving
Color: White or blue white |
14 x 14 |
16 x 16 |
18 x 18 |
18 x 14 |
22 x 22 |
24 x 24 |
Enamelled Iron Wire Netting |
Same as above |
Green or dark green |
Aluminum Coated Iron Wire Netting |
Same as above |
Silver |
Aluminum Wire Netting |
Same as above |
Material: Al-mg alloy or pure aluminum
Painted aluminum wire netting epoxy resin paint |
Fiberglass Wire Netting |
12 x 12 |
BWG31
BWG32 |
3'x100'
4'x100'
1x25M
1.2x25M |
Available in different colors |
14 x 14 |
16 x 16 |
16 x 14 |
PVC Wire Netting |
12x 12 |
As above |
Twisted weaving:12*14*16mesh;
Plain weaving:18*22*24mesh;
Colors available:white,blue,green,etc. |
14 x 14 |
16 x 16 |
18 x 18 |
18 x 14 |
20 x 20 |
Stainless Steel Wire Netting |
14 x 14 SWG38
16 x 16 SWG37
18 x 18 SWG36
18 x 14 SWG35
20 x 20 SWG34 |
3'x100'
4'x100'
1x25M
1.2x25M |
Materials: Stainless steel 304*316*316L |
PVC Coated Wire Netting |
12x 12 |
BWG31
BWG32 |
As above |
Different colors available. Used in petroluem, pipes wrapping. |
Hebei Anjia Wire Net Weaving Co., Ltd. is a manufacturer specialized in producing metal wire and metal wire mesh. It was established in 1991, and located in Anpin City, Hebei Province, factory covers an area of 72, 000 square meters, China where above 60% amount of Chinese wire meshes are produced. Through 18 years' dedicated work and consistent effort of staff, we developed fast; And now we are one of the top three companies in Anpin City. Meanwhile, we set a branch at Guangzhou, the Guangzhou office is located at Ying Long Plaza, while another factory is at Zhuliao town, which is specialized in producing the expanded steel sheet.
We provide products including the welded wire mesh, hexagonal wire mesh, stainless steel wire mesh, brass wire mesh, window screen, fiberglass mesh cloth, black iron woven cloth, expanded steel sheet, expanded aluminum sheet, barbed iron wire, razor wire, galvanized iron wire, stainless steel wire, black annealed wire, PVC coated iron wire, knotted wire mesh fence, chain link fence, fence net and so on.
Our products are sold throughout the world and welcomed by our customers due to competitive price and best price/quality ratios, and they are manufactured under strict observation of the ISO2001&2000 and the Chinese National Standards. The product brand "Anjia" and "Yong'an" have been accepted and well known in some countries. We cherish our international prestige and will continue to dedicate ourselves to provide best products and service to our customers.
Anjia established a fence net production line in Anping in 1997 in order to code with the the strong demard of our market network. Fence net is a widely used product. Absorbing the essence of European fencing system and the profound understanding of the different demand, no matter for security or beautifying, you can choose from Anjia fence net products. With rich experience of 10 years and the market proof, we become one of the major market player in this line.
We will make a better future with your support and trust. We will bing you more value with our continuous innovation and creation.
