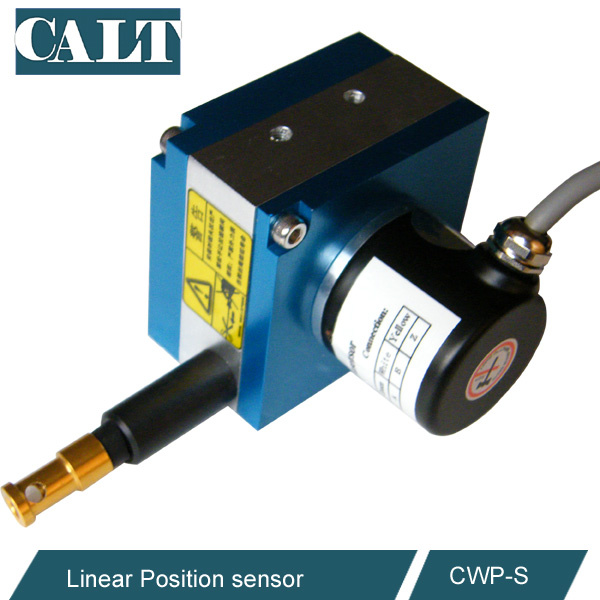

1)length measurment
2)measurement range 0~1000MM;
3)utput optional: 4 ~~20mA, 0 ~ 5V, 0 ~ 10V CWP-S 1000 series
Features
*compact size, rugged construction, easy to install
*economiccost, andcost savings for customers
* Various signals output optional: 4 ~~ 20mA, 0 ~ 5V, 0 ~~ 10V and so on
*The cylinders, testing machines and other industry has achieved large-scale applications, reliability
Dimension: (mm)
CODE
CWP-S1000
A
94
B
48
C
28
D
16
E
25
F
15.92
G
20
H
18
I
40
J
78
K
38
NOTE
Parameter table for general configuration dimension, the customers please reference order series of specific parameters (configuration changes will readjust)
Please feel free to write to me ask for more infomation!
Detection method |
Precision potentiometer |
Resolution |
Theory of infinite |
Measuring rang |
0~1000mm |
Anti-vibration |
10HZ - 2000HZ , 10G |
Output |
4~20mA , 0~10Vdc , 0~5Vdc ,
Resistance |
Repeatability |
+/-0.02FS |
Linearity |
Standard: 0.25%FS Precision: 0.1%FS |
Operating Temperature |
-10 °C ~ 70 °C |
rope |
wire rope 0.6-1.2mm, rope maximum load: 16KG |
Storage Temperature |
-20 °C ~ 80 °C |
Starting torque |
<600g |
protection |
IP65/IP54 |
PULL speed |
Max : 1m/s |
Life |
> 200 000 times |
Operating voltage |
12~24VDC |
Weight |
<600g |
