| Supplier: | Tjk Machinery Co., Ltd |
|---|---|
| Price: | US $ 1/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB |
|
|
| Prod Model: | MB3000, MB6000 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enter Attribute Here (e.g.: Size): | Enter Value Here (e.g.: 12 Inches) |

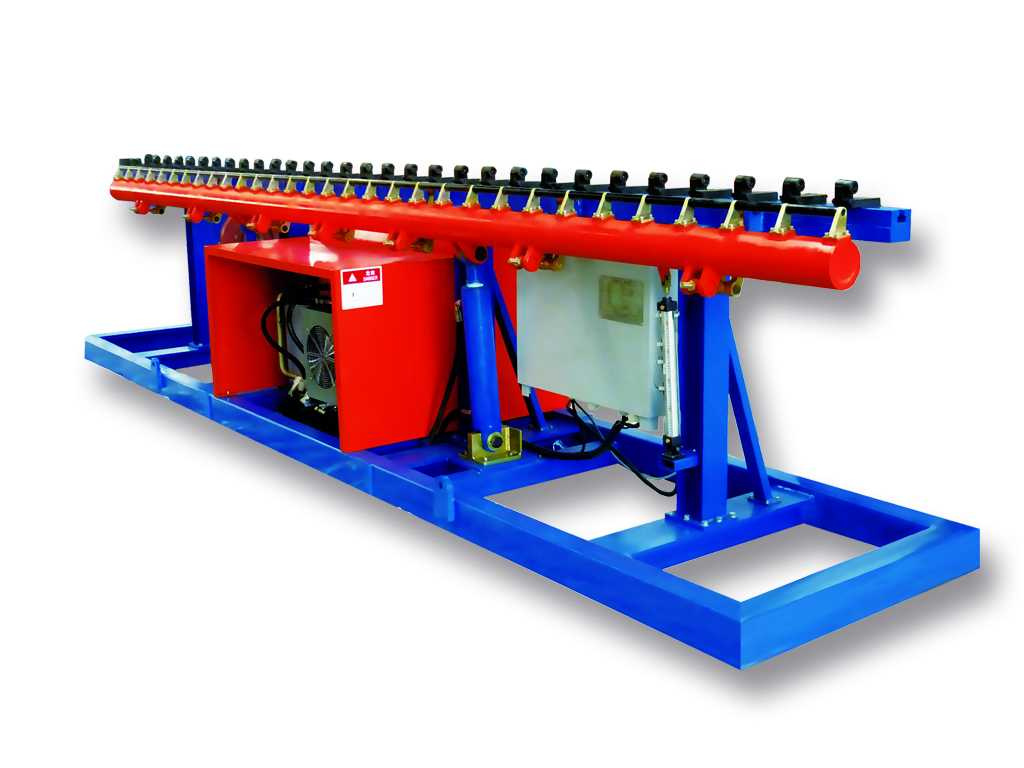

| Type: | Roller-Bending Machine |
| Application: | Machinery & Hardware |
| Type For Fold-bending Machine: | CNC Fold-bend Machine |
| Automation: | Automatic |
| Power voltage | 380V 50Hz |
| Rated Power | 7.5KW |
| Max Pressure of Hydraulic System | 12MPa |
| Hydraulic System Flow | 48 L/min |
| Max Mesh Width | 3000mm |
| Steel processing range | Φ6 - 12mm |
| Number of line Rebars | 30 pcs(Max 60pcs) |
| Min Grid Gap | 50mm |
| Min Bending Side Length | 120mm |
| Bending Angle | 0-180° |
| Machining Accuracy of Angle | ±1° |
| Bending Speed | About 30 degree/sec |
| Working temperature | 5 - 40ºC |
| Weight | 2 tons |
| Overall dimensions | 3000*1400*1000 (Length/Width/Height) |
| Note: Min bending side length will change depending on the diameter of rebar, pls notice when designing the mesh. Choose proper mold according to the diameter of the rebar, then adjust the position of the drum according to the instruction. The accuracy and consistency of the mesh bending will be affected by the difference of the rebar roundness and strength. | |
| Power voltage | 380V 50Hz |
| Rated Power | 7.5KW |
| Max Pressure of Hydraulic System | 12MPa |
| Hydraulic System Flow | 48 L/min |
| Max Mesh Width | 6000mm |
| Steel processing range | Φ6 - 12mm |
| Number of line Rebars | 60pcs |
| Min Grid Gap | 50mm |
| Min Bending Side Length | 120mm |
| Bending Angle | 0-180° |
| Machining Accuracy of Angle | ±1° |
| Bending Speed | About 30 degree/sec |
| Working temperature | 5 - 40ºC |
| Weight | 2.5 tons |
| Overall dimensions | 6000*1400*1100 (Length/Width/Height) |
| Note: Min bending side length will change depending on the diameter of rebar, pls notice when designing the mesh. Choose proper mold according to the diameter of the rebar, then adjust the position of the drum according to the instruction. The accuracy and consistency of the mesh bending will be affected by the difference of the rebar roundness and strength. | |
