Qingdao Bortome Import & Export Co., Ltd. >> Wire Netting (Plain, Twill, Dutch, Five Shed Weave)

Wire Netting (Plain, Twill, Dutch, Five Shed Weave)

Name: Wire Netting (Plain, Twill, Dutch, Five Shed Weave)
Brand: china-manufacturer-directory.com
SKU: 724673225
Availability: InStock
Rating: 4.9 (75 reviews)

Supplier:	Qingdao Bortome Import & Export Co., Ltd.
Price:	US $ 5-150/Roll
Min Order:	5/Roll
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BTWM01-006
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Width:	0.5m-6.0m
Length:	25, 30, 35m or Custom
Mesh:	1-2800mesh
Wire Dia:	0.02-8mm
Application:	Cages
Material:	S.S, Brass, Nickle, High Carbon Steel, etc

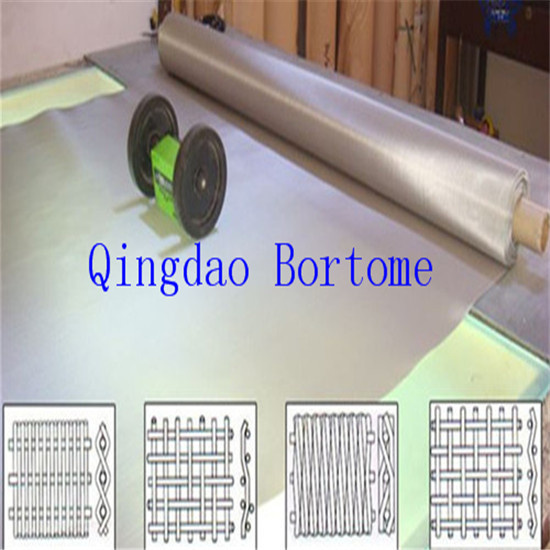

Weave Technique:	Plain, Twill, Dutch
Hole Shape:	Square, Round, Hexagonal, Diamond

Product Description

Product Name: ？Wire Netting Material: SUS302, 304, 316, 304L, 316L;High Carbon Steel,Brass,Nickle,etc？ Weave Technique:Plain Weave, Twill weave, Dutch,Five Shed weave.？ Hole Shape:Square,Round,Hexagonal,Diamond？？？？？？？？？？？？？？ Specification: Width:0.5-6m？ Length:25,30,35m？ Wire Diameter:0.02-8mm？？？？？？？？？？？？？？？？？？？？？？？？？？？Mesh:From 1？x？1mesh/inch to 2800？x？2800mesh/inch. ？ Packing:Waterproof Paper, Woven Bag, Carton, Wood Box Loading Port: Tianjin,China Production Capacity:60000 sqm/Day？？ HS Code:7314140000？？？？ Brand: OEM / ODM？？？？ Certificate:ISO 14001:9001&ISO 9001:2008？？ Export Markets:Global？？？？ Application: Our Wire Netting, with its excellent resistance against acid, alkali, heat and corrosion, is widly used in industries of petrochemicals, aeronautics and astronautics, air or liquid filtration, pharmaceutical, food, energy saving, environmental protection, new energy, etc..

Specification List of Stainless Steel Woven Wire Mesh
Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
Mesh/Inch	Inch	MM	Inch	MM	Open Area	Weight(LB) /100 Square Foot
1x1	0.08	2.03	0.92	23.37	84.6	41.1
2X2	0.063	1.6	0.437	11.1	76.4	51.2
3X3	0.054	1.37	0.279	7.09	70.1	56.7
4X4	0.063	1.6	0.187	4.75	56	104.8
4X4	0.047	1.19	0.203	5.16	65.9	57.6
5X5	0.041	1.04	0.159	4.04	63.2	54.9
6X6	0.035	0.89	0.132	3.35	62.7	48.1
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
80X80	0.0055	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.061	36	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04
325X325	0.0014	0.0356	0.0017	0.0432	30	4.4
400X400	0.001	0.0254	0.0015	0.37	36	3.3
500X500	0.001	0.0254	0.001	0.0254	25	3.8
635X635	0.0008	0.0203	0.0008	0.0203	25	2.63

As one of 10 subsidiaries of Tongyu Heavy Industry Group Co., Ltd. (China Stock code: 300185 with total assets of 1.1 billion U. S. D ), Qingdao Bortome Import & Export Co., Ltd. Has been integrating all resorces of the group and exporting quality products to the world. All businesses of the group are involved in forging and casting products, tungsten carbide, etc...By virtue of group company's advantages, Bortome has been exporting tungsten carbide to global market.

Our carbide products mainly include snow shovel, anchor drill piece, solid carbide rod, disk and bar, carbide roll, drawing die, carbide button bits, inserts and tips for mining, carbide rotary burs, etc. And are enjoying a high prestige in markets of North America, Europe, Japan, Southe Korea, Brazil, etc.

We committed to provide more technique support and solutions on basis of customers' requests.
