Veise (Guang Zhou) Electronics Co., Ltd. >> Wireless Backup Camera Video System by Mounts to Tractor Security Parts

Wireless Backup Camera Video System by Mounts to Tractor Security Parts

Name: Wireless Backup Camera Video System by Mounts to Tractor Security Parts
Brand: china-manufacturer-directory.com
SKU: 700136542
Availability: InStock
Rating: 4.4 (38 reviews)

Supplier:	Veise (Guang Zhou) Electronics Co., Ltd.
Price:	US $ 150-195/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	DF-766M2362
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Type:	1/4 Inch Color CMOS
Line Of Sight Range:	≤100m
Transmission Power:	18dBm with Power Control
Waterproof:	IP69k
Type:	Monitoring System
Application:	Sentinel Surveillance
Feature:	Waterproof / Weatherproof
Video Capture System:	Video Camera
Video Transmission System:	Wireless Transmission
Software Function:	Monitoring+Control
Software Usage:	Vehicle Monitoring Software
Client Software:	Without Client Software
Model:	CCTV
Sensor:	CCD
Kind:	Autofocus Lens
Technology:	Wireless
Horizontal Resolution:	420tvl

Product Description

Wireless Backup Camera Video System By Mounts to Automotive Security Parts
Camera Observation Video System That Mounts To Your Tractor, Combine, or Trailer ,System fits to many brands including: John Deere, Ford / New Holland, Case - International, Massey Ferguson, Kubota, Allis Chalmers, White / Oliver / Mpl Moline, Deutz, Yanmar, Gleaner, Steiger, Versatile, and more.

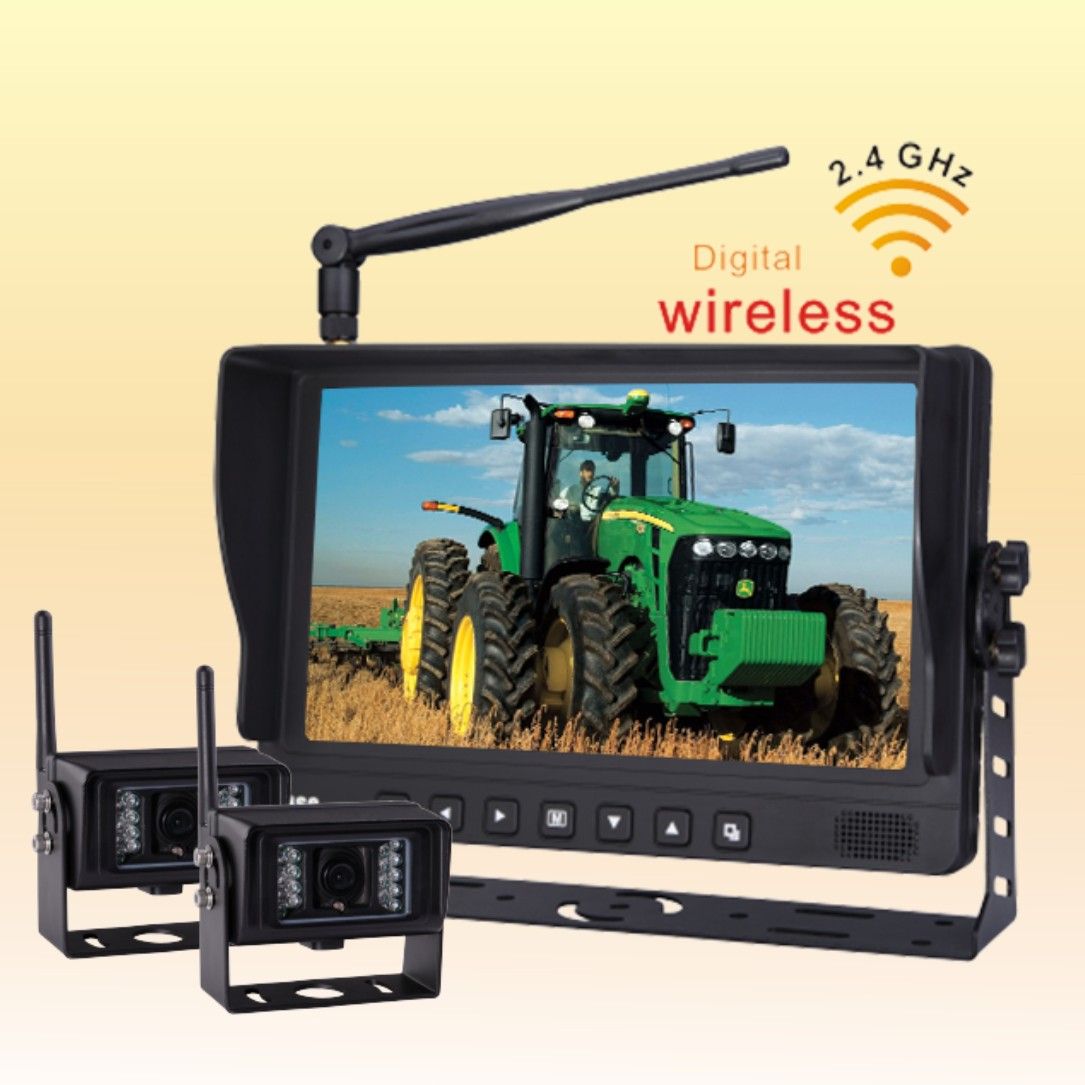

Digital Wireless Quad Monitor Camera System

Digital Wireless Quad Monitor Camera System

2.4GHz Digital Wireless Transmission CCTV Camera (MODEL:DF-8275SFS*2)

Image Type: 1/4 inch Color CMOS

Built in 2.4GHz Digital wireless transmitter

Transmission Power:18dBm with Power control

Line of Sight Range:≤100M

Horizontal Resolution:420TV Lines

Effective pixel:NTSC:640(H)X480(V);PAL:640(H)X480(V)

Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)

Free viewing angle: 120°

Waterproof: IP69K

Shockproof: 10G

Free Operating Voltage: DC10-32 Volts

Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting)

Digital Wireless Receive Monitor(Model:SP-766M2)

7" Digital Screen TFT LCD Monitor with Removable Sun Visor

Built-in 2.4G digital wireless receiver module, supports single screen /double screen display

Operation Frequency:2400 ~ 2483.5MHz

Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE)

Overlapping Hopping Channel:80

Color System:PAL/NTSC

Display Resolution: 800RGB(H) X 480(V) dot

Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65

Brightness (cd/m2): 450

Contrast ratio: 500:1

Operating temperature: -20ºC to +70ºC

Storage temperature: -30ºC to +80ºC

Free Operating Voltage: DC10~32V

External dimensions:(L x W x T) (199 x 128 x 28mm) without mounting Sun Visor

Weight Approx: 400g

Product Accessories

U- Support Bracket,Angle Adjustment Screw*2,Removable Sun Visor*1,Electrical Connecting Cable*5,Antenna*6,Hexagon Screw pack*4,User's Manual*1

Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.

Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.

Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.

Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.

Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.

Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
