Product Specifications
| Prod Model: |
F1303 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
205g |
| Power Range: |
DC 5~35V |
| Housing: |
Iron, Providing IP30 Protection |
| Consumption: |
<200ma (12V) |
| Dimensions: |
91x58.5x22 Mm |
| Operating Temperature: |
-25~+65c (-13~+149f) |
| Standard And Band: |
GSM850/900/1800/1900MHz |
| Bandwidth: |
236.8kbps |
| Standard Power: |
DC 12V/0.5A |
| Transmission Rate: |
1024Kbps |
| Interface Type: |
RS-232 |
| Type: |
External |
Product Description

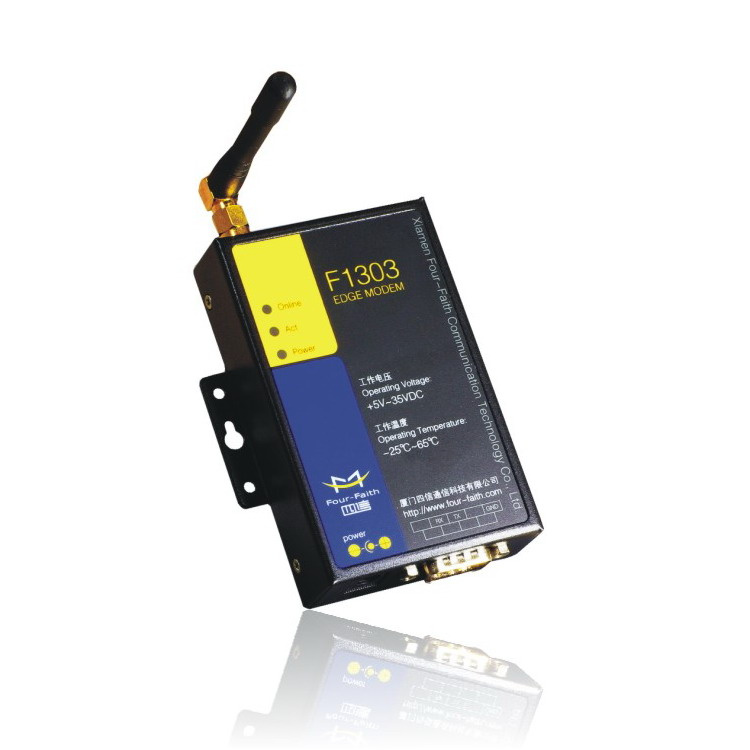

F1303 EDGE modem is based on 2.75G EDGE network and adopts industrial wireless EDGE module. It supports SMS, CSD and data function. F1303 EDGE modem is designed with industrial standard and has been widely used on finance, water supply, environment protection, electric power system, post and weather fields.
A. Wireless Specification
1. GSM850/900/1800/1900MHz
2. Multislot Class 10
3. Modulation and Coding Scheme MCS 1-9
4. Support SMS, CSD and data function
5. Standard AT command interface
B. Hardware System
1. Interface
RS232 serial port, rates: 110~230400bits/s
Indicator lights: Power, ACT, Online
Antenna interface: Standard SMA female interface, 50 ohm
SIM/UIM interface: Standard user card interface
Power interface: Standard 3-PIN power jack
2. Power supply
Standard power supply: DC 12V/0.5A
Power range: DC 5~35V
3. Wireless module
High-powered industrial EDGE module
4. Size
Outline dimension: 91x58.5x22 mm
5. Weight: 630 g
6. Others
Operation temperature: -25~+65
Storage temperature: -40~+85
Humidity: 95% (unfreezing)
